CHAPTER 13. ELECTRICAL ACCESSORIES
145
13
2) Installation of the brush holder
Install the brush holder sideways along with the
IC regulator.
6. GLOW PLUGS
6.1. SECTIONAL VIEW
Note:
• The clearance between the brush holderandthe
connector should be 1 mm or more.
• Rubberpackingfor the brush holder should not
be deformed or pinched.
• As the terminals have screws different in length,
be sure not to confuse them when installing.

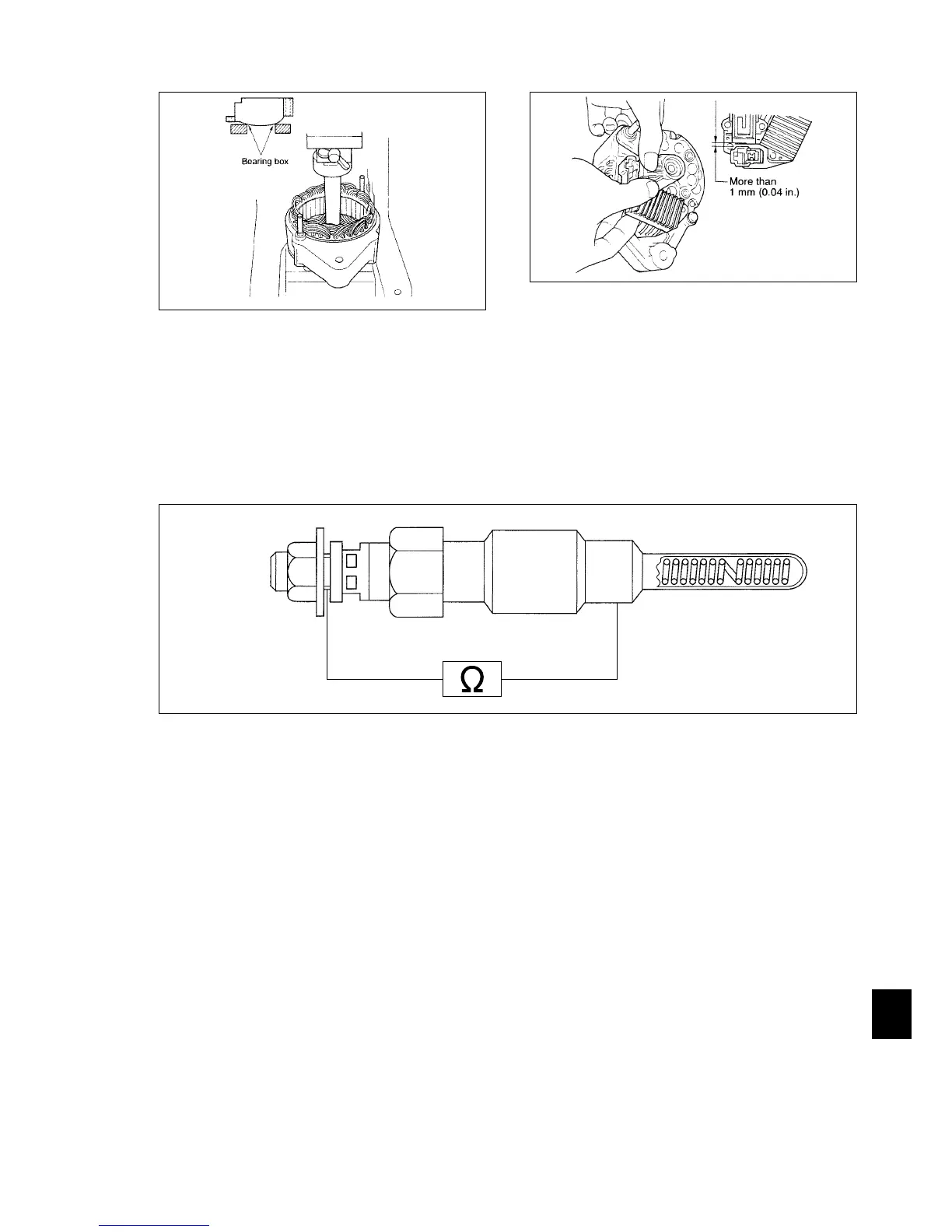

Fig. 13-69
Fig. 13-70
Fig. 13-71
