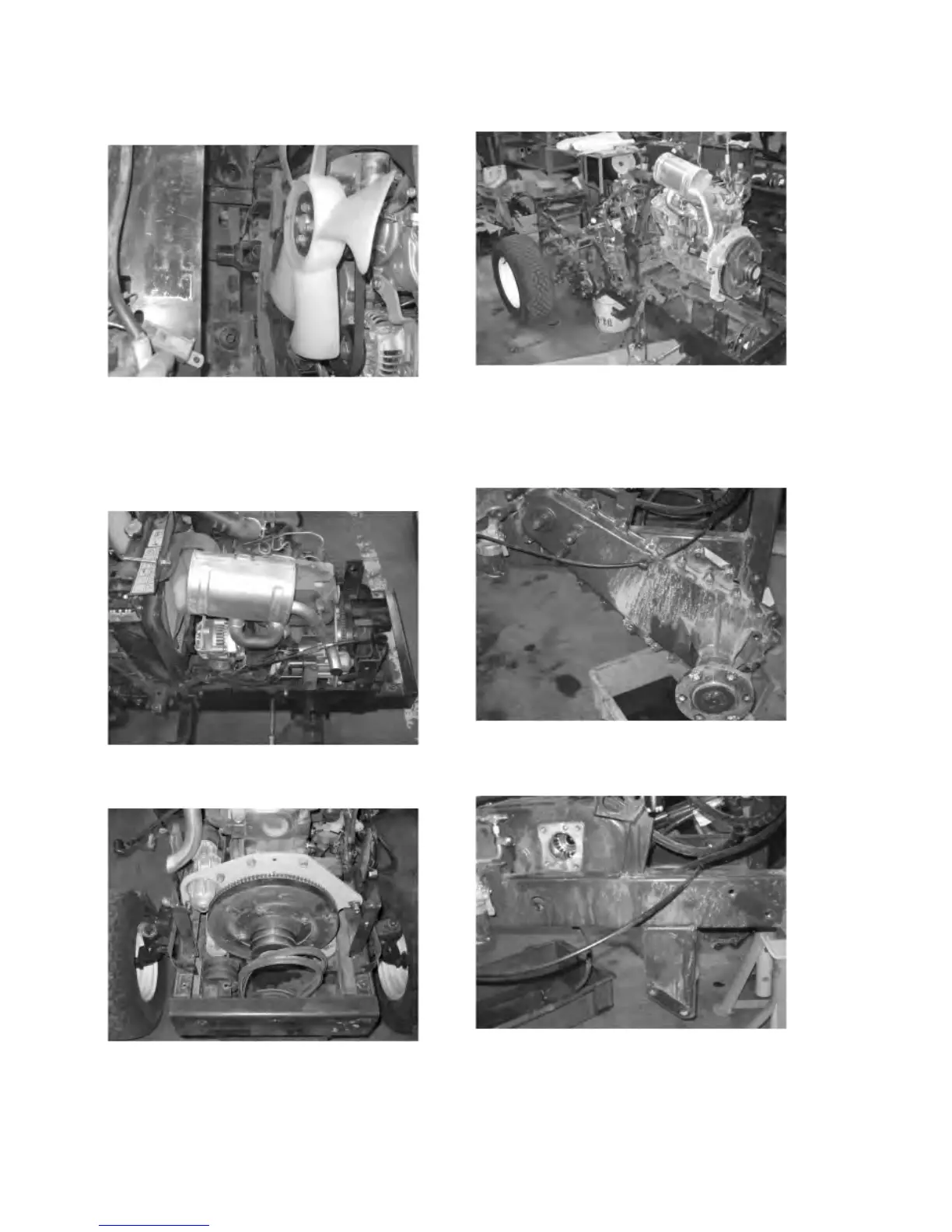

2.3.5. REMOVAL OF ENGINE
(1) Disconnect the drive shaft from engine.
Fig. 2-21
(2) Separate the fan cover from radiator.
(3) Disconnect the hydraulic hose and radiator hose
from engine.
(4) Disconnect the wire harness from engine.
(5) Separate the fuel hose from engine.
Fig. 2-22
(6) Disconnect the front PTO belt from engine.
Fig. 2-23
(7) Detach the engine from bracket
Fig. 2-24
2.3.6. REMOVAL OF REAR AXLE CASE
(1) Remove the rear tyre.
(2) Drain the oil in rear axle case.
Fig. 2-25
(3) Detach the rear axle case from transmission case
and chassis.
Fig. 2-26
