SERVICE MANUAL FOR SXG323&326
22
2.3. REMOVAL OF MAJOR FUNCTIONAL
COMPONENTS

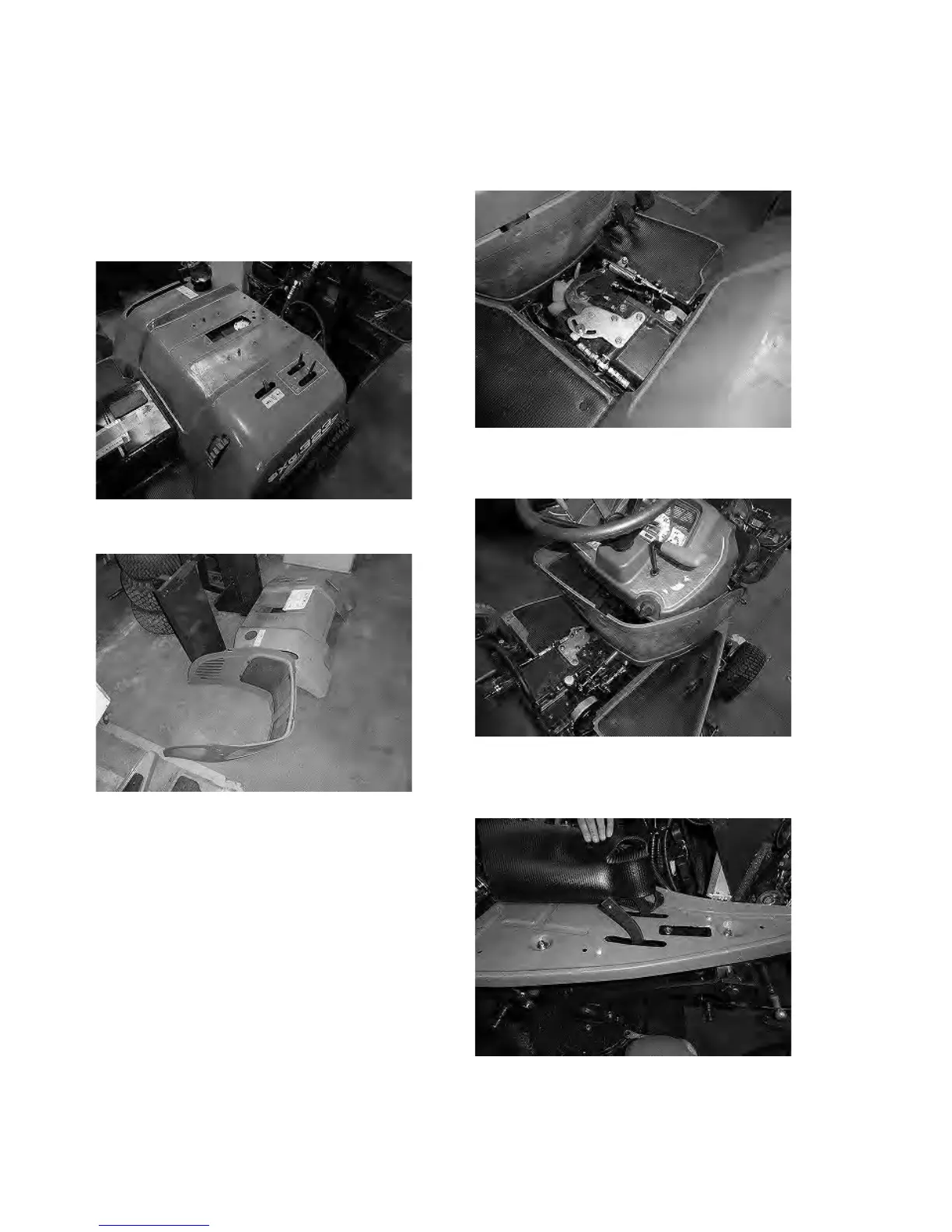

2.3.1. REMOVAL OF FENDER(WING) PANEL
(1) Disconnect the wire harness of seat and remove
the seat.
(2) Remove the knob of collector and mower deck.
(3) Remove the height adjust dial.
(4) Pull the pins of fender out and remove the fender.
Fig. 2-12
Fig. 2-13
Important:
The negative battery cable should be disconnected
ahead of time to prevent short circuit.
2.3.2. REMOVAL OF FLOOR STEP, COVER
AND FUEL TANK
(1) Remove the center cover of step.
Fig. 2-14
(2) Remove the cover of steering column.
Fig. 2-15
(3) Remove the HST pedal and step.
Fig. 2-16
