SERVICE MANUAL FOR SXG323&326
20
2. DISASSEMBLY OF FUNCTIONAL BLOCKS
2.1. REMOVAL OF THE MOWER DECK
(1) Start the engine and lower the mower deck by
the lift lever. Turn the key switch OFF.
(2) Set the direction of the rear gauge wheels side
ways in the lifted-up position.

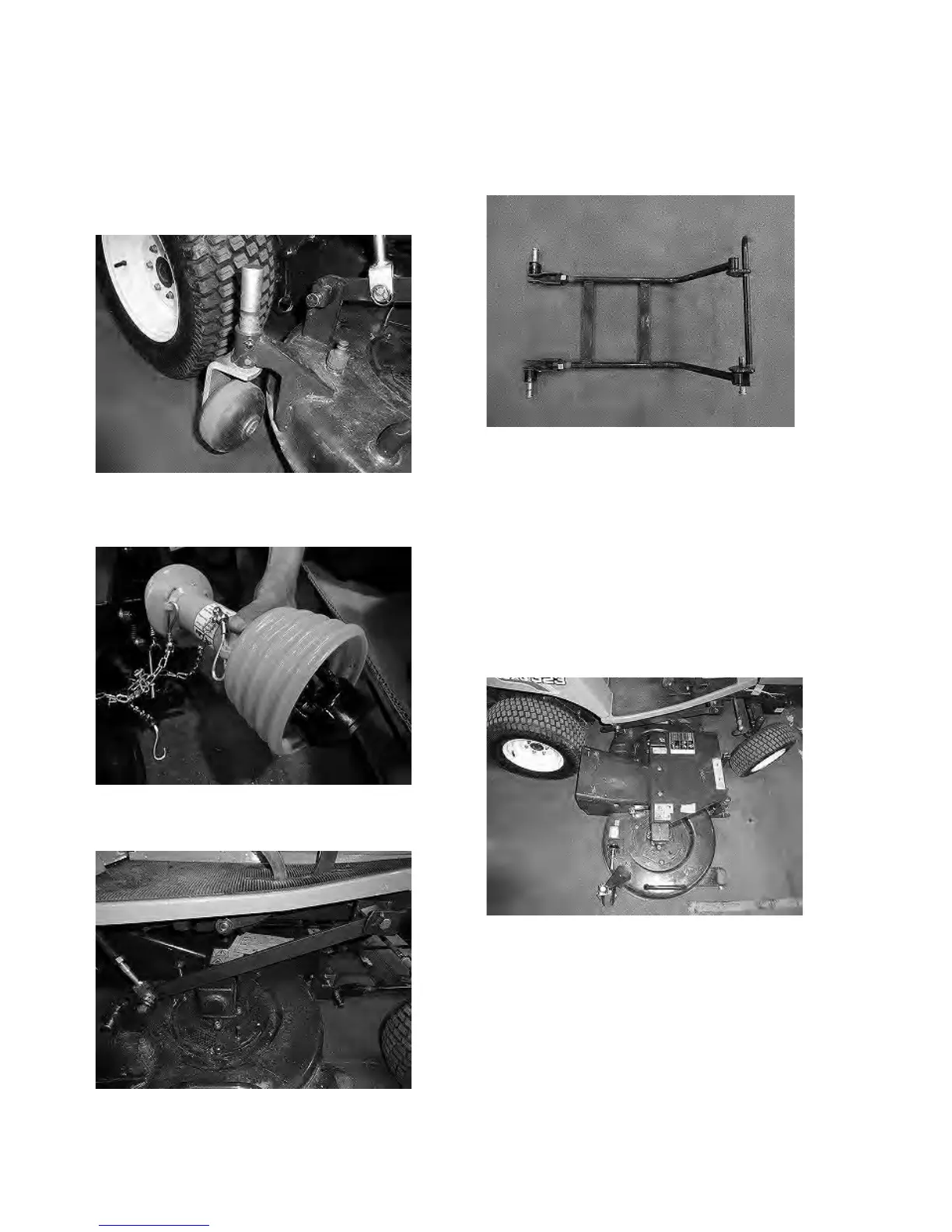

Fig. 2-4
(3) Disconnect the universal joint of the front drive
shaft from the lawn mower.
Fig. 2-5
(4) Disconnect the linkage from the mower deck.
Fig. 2-6
(5) Dismount the front linkage from the mower deck.
Fig. 2-7
(6) Start the engine and raise the mower linkage the
lift lever.
(7) Turn the steering wheel to the right until the
stopper.
(8) Turn the key switch OFF.
(9) Depress the discharge cover.
(10) Remove the mower deck sideways from left side
of lawn mower.
Fig. 2-8
