Jacobsen SXG323 User Manual

CHAPTER 7. ASSEMBLY INSTRUCTION
39
7
2. SBC550X-LE (Low du mp collector)

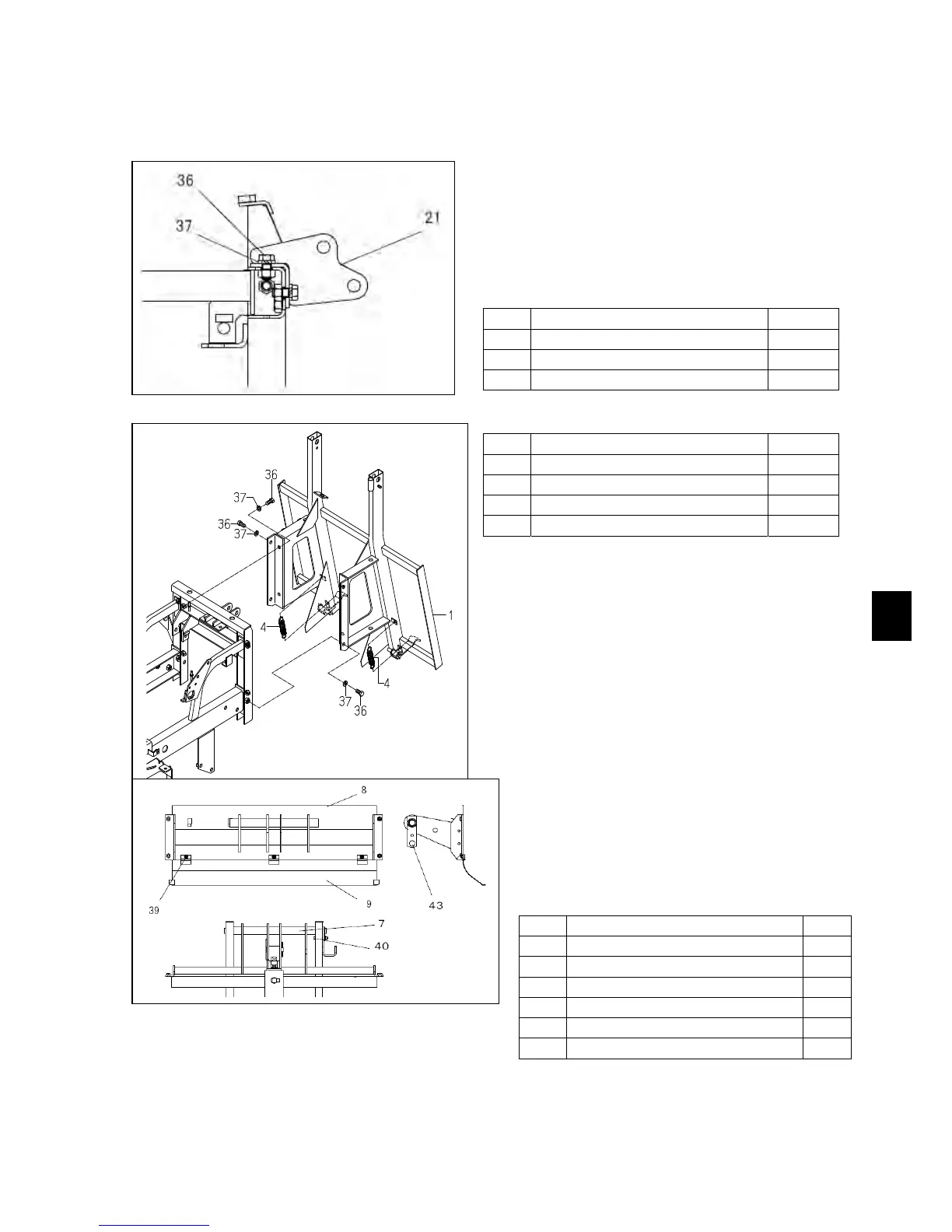

Assembly of Collector ASSY
1) Attach the STAY/CYLINDER COMP (21) to the
rear frame of the lawn mower, and tighten 4 pcs of
BOLT/7T (36) and 4 pcs of WASHER/LOCK/M12
(37).
2) Attach 2pcs of SPRING/HE108 (4) to the FRAME
SET (1).
3) Attach the FRAME SET (1) to the lawn mower, and
tighten 8 pcs of BOLT/7T (36) and 8 pcs of
WASHER/LOCK/M12 (37).
4) Attach the COVER/SUB ASSY (9) to the
FRAME/UPPER ASSY (8), and tighten 3 pcs of
NUT/WASHER/M6 (39).
5) Attach the FRAME/UPPER ASSY (8) to
FRAME SET (1). Pass the PIN/20X410 COMP
(7) through PLATE/HOOK (43) and fix them by
1pc of NUT/WASHER/M8 (40).
No. PARTS NAME QTY
21 STAY/CYLINDER COMP 1
36
BOLT 7T/M1䠎X䠎䠑
4
37
WASHER LOCK䠋M12
4
No. PARTS NAME QTY
1FRAMESET 1
4
SPRING/HE䠍䠌䠔
2
36
BOLT 7T/M䠍䠎䡔䠎䠑
8
37
WASHER LOCK䠋M12
8
No. PARTS NAME QTY
8 FRAME/UPPER ASSY 1
9 COVER/SUB ASSY 1
39 NUT/WASHER/M6 3
7
PIN/䠎䠌䡔䠐䠍䠌 COMP
1
43 PLATE/HOOK 1
40
NUT/WASHER/M䠔
1
