CHAPTER 1. GENERAL INFORMATION
15
1

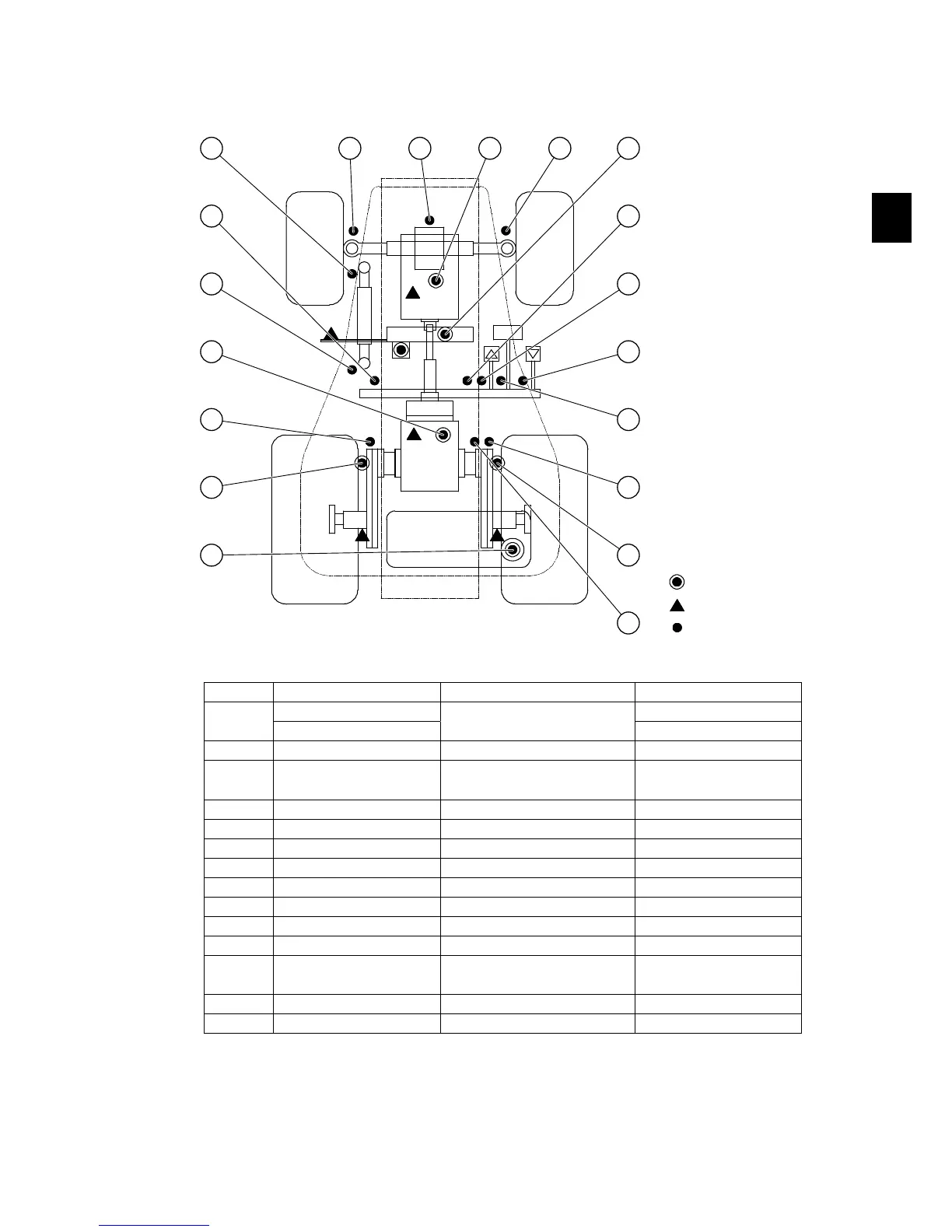

5. FILLING DIAGRAM
Fig. 1-5
Ref.No Filling points Lubricants Quantity: litre (imp.gal)
1
Radiator
LLC50%
3.5 (0.77)
Reserve tank 0.6 (0.13)
2 Engine Engine Oil 2.6 (0.57)
3 Transmission case HST OIL(SHELLDONAX TD) 8.0 (1.76)
4 Chain case (RH) Gear oil (SAE80) 1.1 (0.24)
5 Chain case (LH) Gear oil (SAE80) 1.1 (0.24)
6 Centre pivot Grease As required
7 Knuckle arms Grease As required
8 Cylinder ball end Grease As required
9 HST pedal hub Grease As required
10 Brake shaft Grease As required
11 HST link hub Grease As required
12
Brake shaft
ÚOnly G type
Grease As required
13 Mower link Grease As required
14 Fuel tank Diesel fuel 21 (4.62)
Oil fillers
Oil drains
Greasing points
