CHAPTER 7. ASSEMBLY INSTRUCTION
21
7
1. SBC600X-LQE4 (High dump collector)

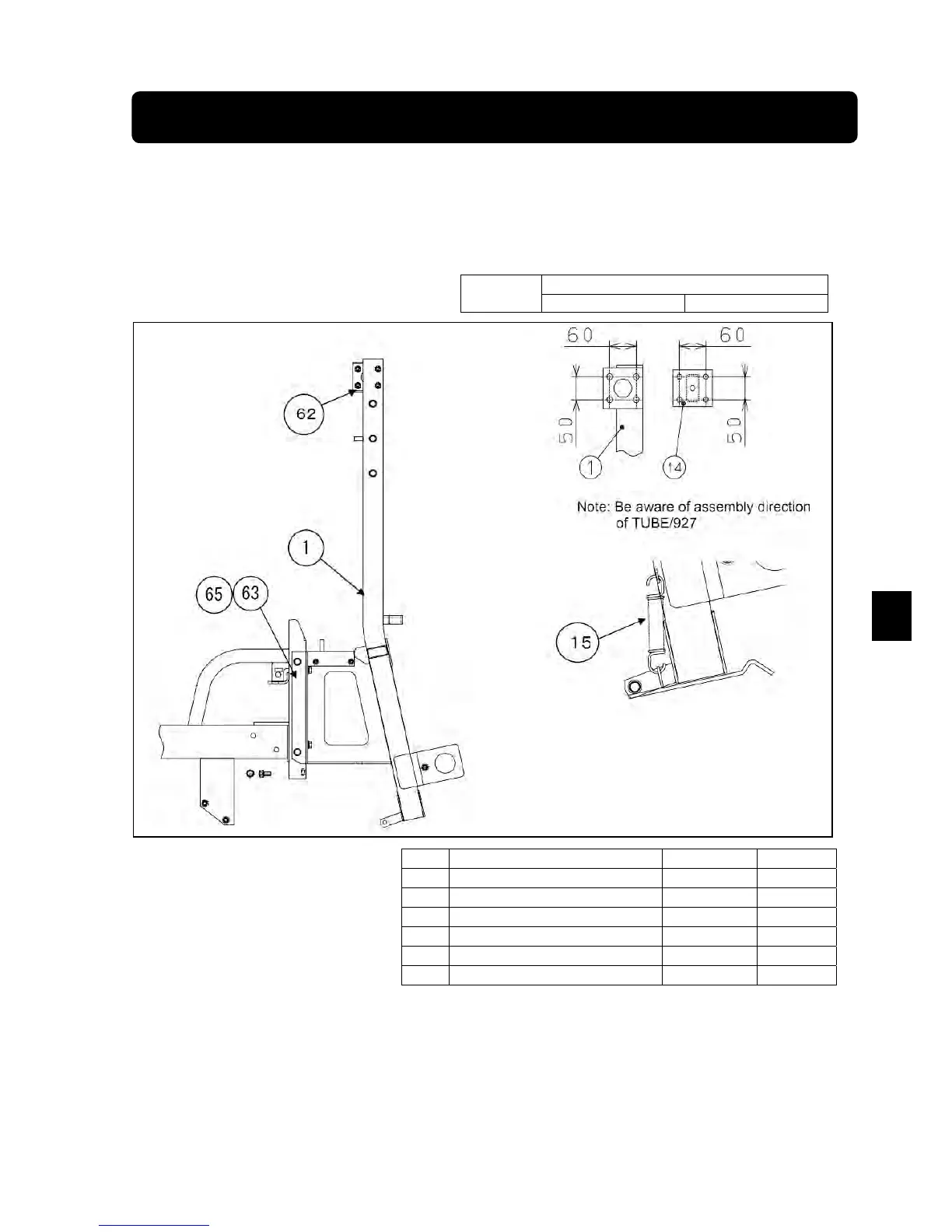

Assembly of Collector ASSY
1. Assemble FRAME/COLLECTOR SET,1 to the frame of the machine by tightening
BOLT/M12X25/7T(8pcs.),63 and WASHER/LOCK/M12(8 pcs.) ,65.
2. Attach TUBE/927 COMP,14 to FRAME/COLLECTOR SET,1 by BOLT/S/M10X20 (8pcs.), 62.
Note:
The side of TUBE/927 COMP on which serial number plate should face forward.
3. Attach SPRING/HE108 ,15 to FRAME/COLLECTOR SET
BOLT 7T/M12䡔䠎䠑
Tightening
torque
79.4䡚93.1 N䞉䡉 810䡚950 䡇䡃䡂䞉䠿䡉
No Parts name Standards Pieces
䠄䠍䠅
FRAME/COLLECTOR SET 1
䠄䠍䠐䠅 TUBE/䠕䠎䠓 COMP
1
䠄䠍䠑䠅
SPRING/HE108 2
䠄䠑䠎䠅
BOLT/S/M10X20 M10X20 8
䠄䠒䠏䠅 BOLT 7T/M12䡔䠎䠑
M12X25 8
䠄䠒䠑䠅
WASHER/LOCK M12 8
CHAPTER 7. ASSEMBLY INSTRUCTION
