2-33
2
ASSEMBLY
ARBUS 400 Setting up the tractor

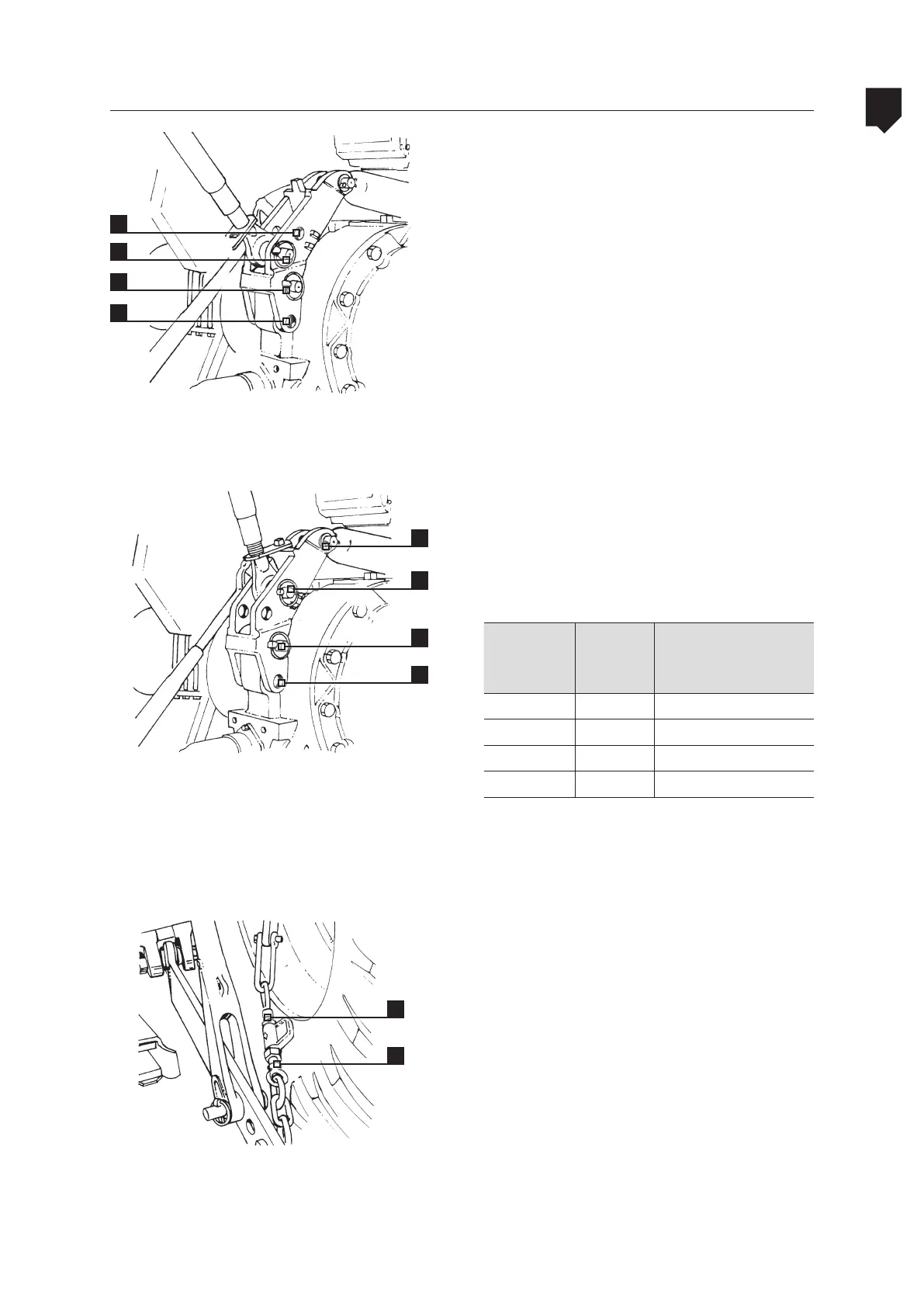

• Third point frame
O cavalete possui duas posições (G e
H) para colocação do 3º ponto e duas
posições (I e J) para fixação do pino infe-
rior do cavalete.
Thus there are four different positions for
this assembly.
• Holes position
These four positions are adequate depen-
ding on the types of implements being
coupled and as long as they comply with
the following combinations:
Position of
the three
point
Cradle Type of job
K Nº 4 Super Light Job
L Nº 3 Light Job
M Nº 4 Medium Job
N Nº 3 Heavy duty Job
• Stabilizing chains
The stabilizing chains should be instal-
led to limit the lateral movements of the
equipment coupled onto the three point.
The chains should be adjusted taking into
consideration the bars of the implement
in use. To adjust them, ease lock nut (O)
and turn the regulating nut (P), as neces-
sary and retighten the lock nut.
G
H
I
J
K
L
M
N
O
P
