2-34
2
ASSEMBLY

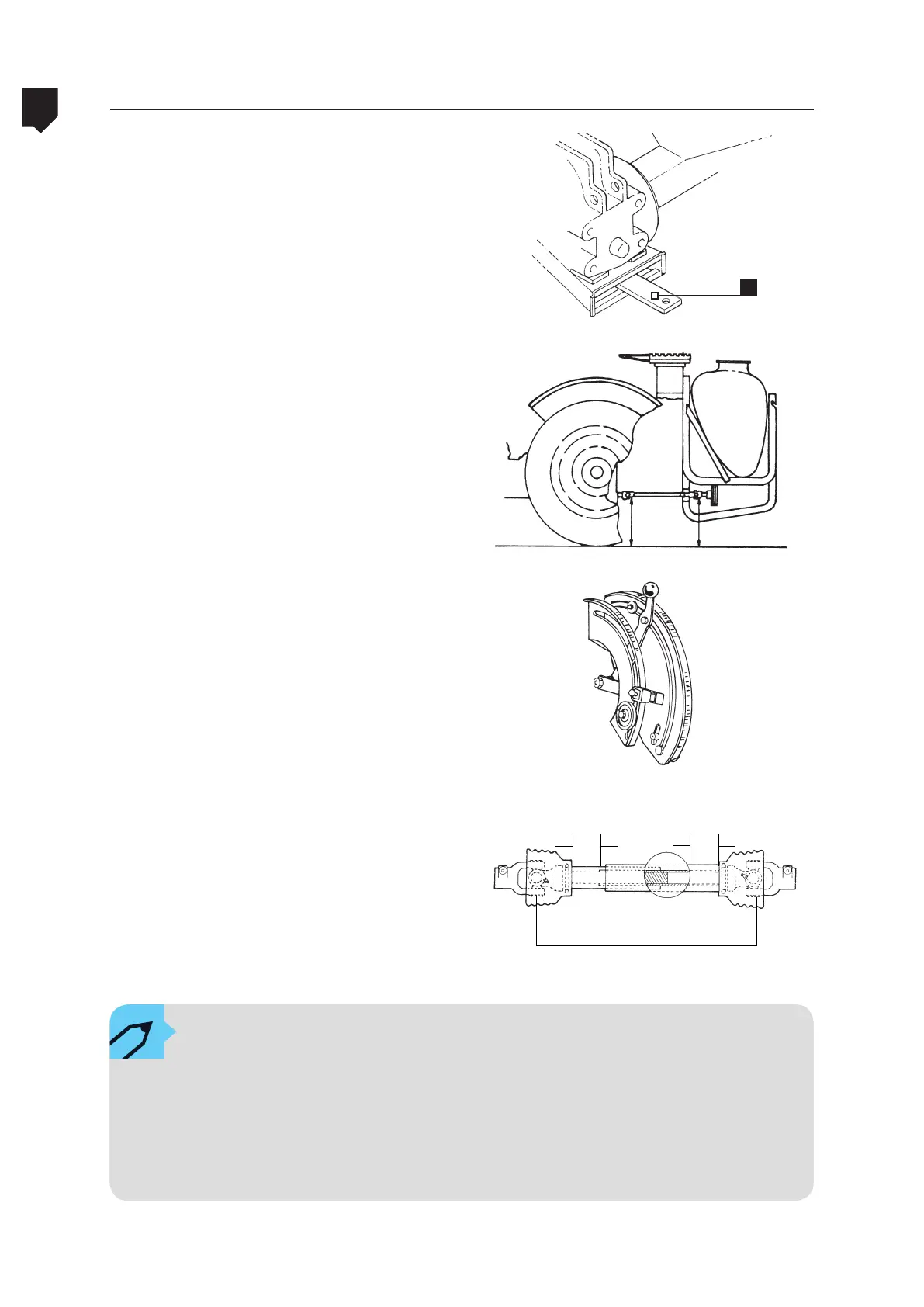

ARBUS 400Mouting the sprayer to the tractor
• Remove or pull the tractor ’s drawbar (A) aside.
• Mount the sprayer to the tractor’s three-
point suspension and level it as shown in
the figure beside.
• Adjust the tractor’s hydraulic lift lever so
that the sprayer is not raised too high.
h h
Height adjust
• Adjust the PTO shaft. If necessary, cut the
male and female tubes so that, after con-
necting the sprayer, it has the overlaps
recommended in the figure beside.
A
Note: Assemble the aligned forks as indicated on A.
+/-5 cm +/-5 cm
NOTE:
Before cutting the PTO shaft, verify if the machine can move around the lift arms
and three point.
Check if the locks of the coupling pins are correctly assembled.
For further information about the PTO shaft, refer to the MAINTENANCE OF THE PTO
SHAFT page.
A
