4-70
4
OPERATION AND ADJUSTMENTS
ARBUS 400
• The PH-400 CA application range is 1.21 to
3.55 meters.
• The application can be c
lock
9,5 cm
1. Remove the locks from the extension.
2. Move the protective wings to the center
of the machine to reduce the applica-
tion range, and to the opposite direction
to increase its range. Inser t the fastening
pins back in the wings.

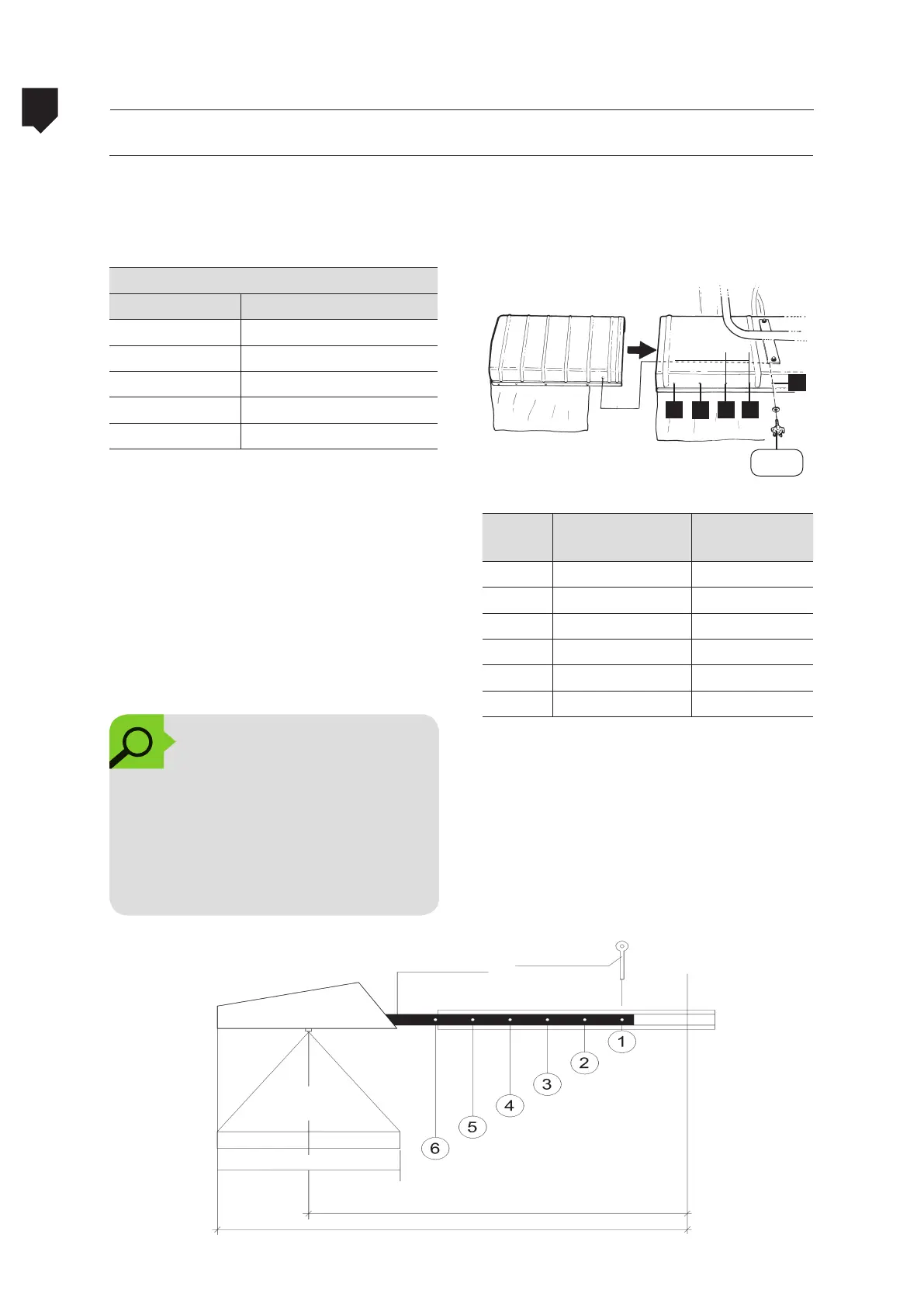

Determining the PH kit application range
Assembling the PH kit
5
4
23
1
Central boom adjustment
Orice lock Application range (M)
1 1,21
2 1,40
3 1,59
4 1,78
5 1,97
Adjusting the protective wings
OBSERVATION:
The 6-fastening points on the
extension are 9.0-cm distant
from one another so the appli-
cation range can go from 2.65 to
3.55 meters.
Orice
Total application
range(m)
Nozzle spacing
(m)
1 3.20 2.60
2 3.02 2.42
3 2.84 2.24
4 2.66 2.06
5 2.48 1.88
6 2.30 1.70
total application range
nozzle spacing
application range: 0.60 m
spray nozzle
protective wings
extension
extension lock
center of the machine
