52
A18 Troubleshooting The Optional Stereo System
The optional Stereo System provides a stereo receiver with high quality hot tub engineered speakers
for superior sound quality. If the stereo deck does not turn on, refer to the following test procedure.

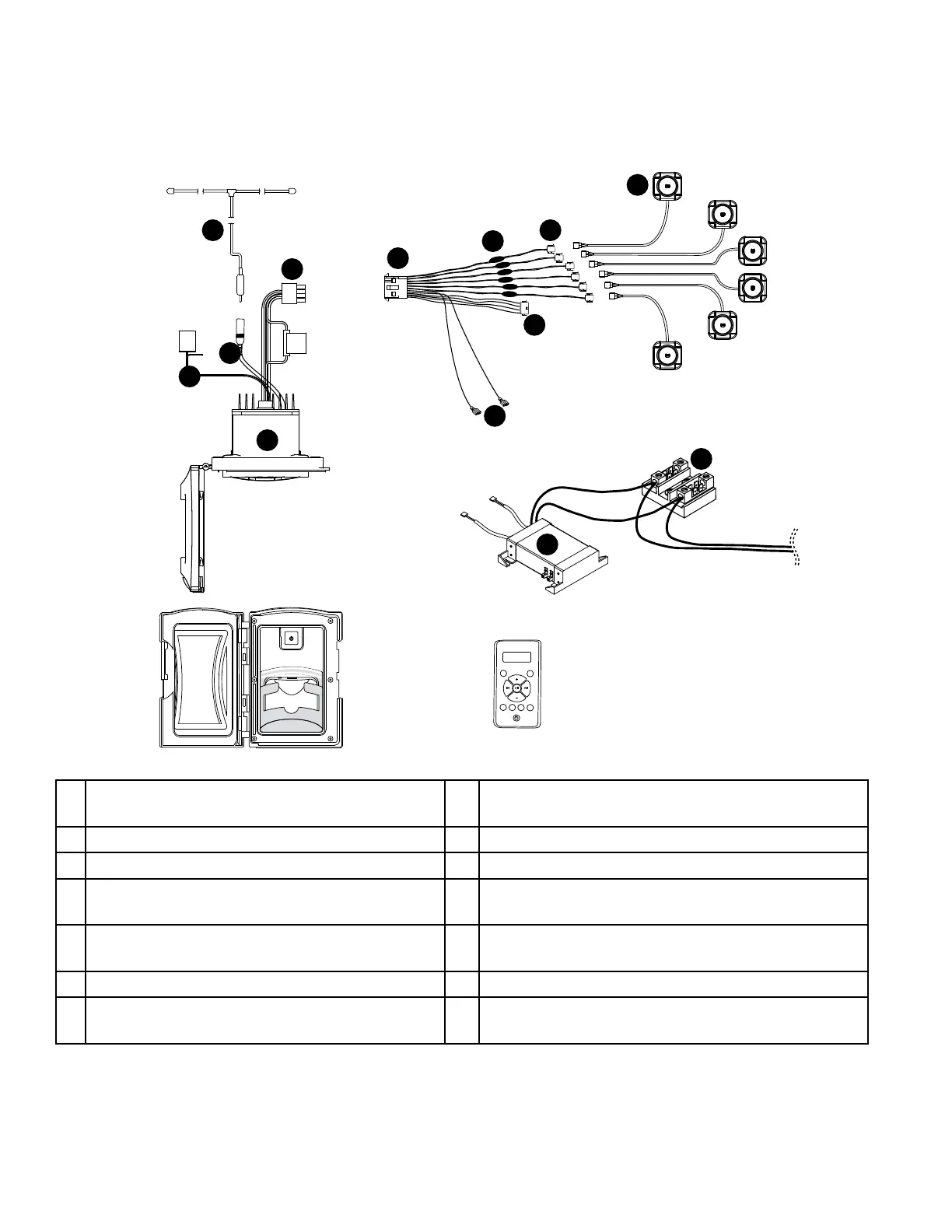

I. BLUEWAVE stereo diagram (follow the testing procedures for the Aquatic stereo)
E
J
M
L
K
H
D
A
F
G
USB
AUX
AUDIO
MODE
REPEAT RANDOM
1
2
1
2
FM JET
DIR- DIR+
B
C
I
A BLUEWAVE stereo with connections H
Spade connectors (connect to the power
supply)
B Control Panel connection I Power supply (located in equipment bay)
C Antenna connection on stereo J TB1 terminal (located in control box)
D
Stereo harness (connects to wiring har-
ness “E”)
K Spa speakers (connect to wiring harness)
E
Spa wiring harness (connects spa com-
ponents to stereo)
L Stereo antenna
F Spa harness speaker connectors M Crossovers for the speakers
G
Subwoofer connector (connects to spa
wiring harness)
