JAKA Zu 7 - Page 56

JAKA Zu
®
7 - V1.1 56

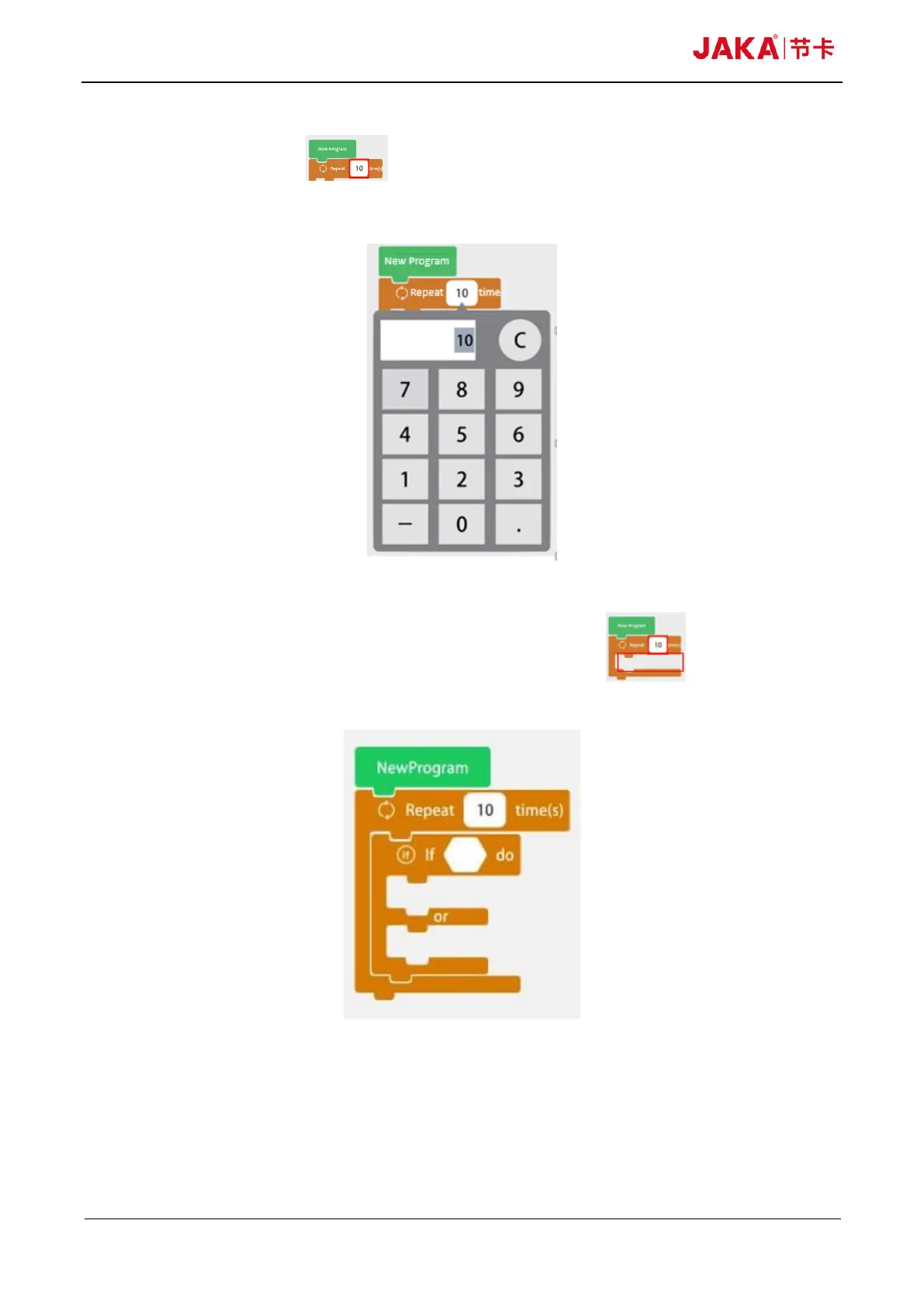

(2)Click the numeric part in the figure above. Modify the loop execution times in the
numeric keypads popped out.
Fig 10-36
(3)Click the “Control” select tab again. Drag the if else command to the red part and then
release it. The result is shown below.
Fig 10-37
(4)Click the “Calculate” select tab. Choose the “&&” command and drag it to the red frame in the following
figure.
Fig 10-38
