UMG 96RM
Connection options

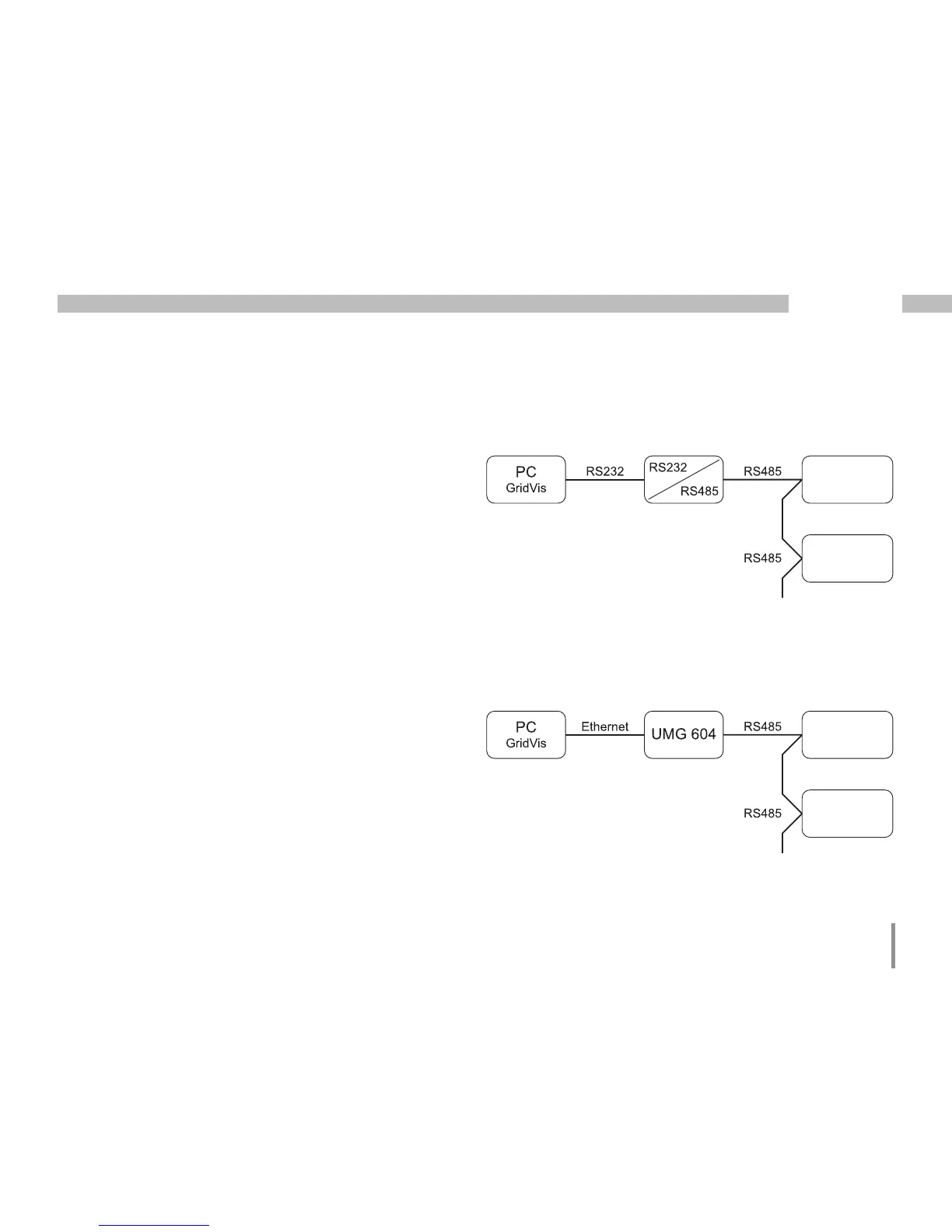

Connection of a UMG 96RM to a PC via an interface
converter:
Connection of a UMG 96RM via a UMG 604
as a gateway:
UMG 96RM
UMG 96RM
UMG 96RM
UMG 96RM
UMG 96RM
UMG 96RM
UMG 96RM
UMG 96RM
GridVis network analysis software
The UMG 96RM can be programmed and read with
the GridVis network analysis software which is part of the
scope of delivery. For this, a PC must be connected
to the RS485 interface of the UMG 96RM via a serial
interface (RS485/Ethernet).
Characteristics of GridVis
• Programming the UMG 96RM
• Graphic representation of measured values
