UMG 96RM

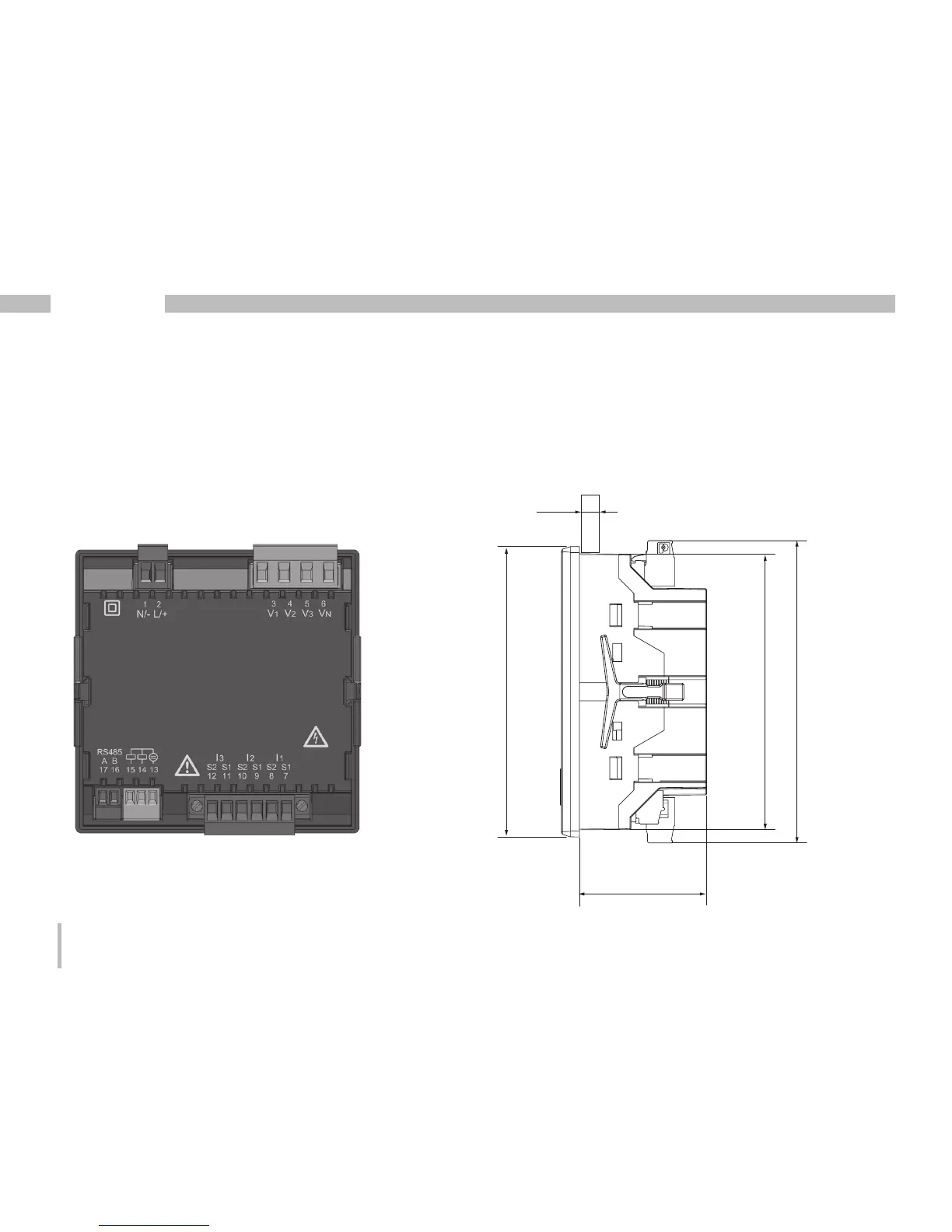

Dimensional drawings
Cutout dimensions: Cutout dimensions: 92
+0.8
x 92
+0.8
mm.
max. 6
□ 91
100
□ 96
42
Rear view Side view
