22
UMG 96RM
Current measurement
The UMG 96RM is designed for connecting current
transformers with secondary currents of ../1A and
../5A. The factory set current transformer ratio is 5/5 A
and may need to be adapted to the current transform-
ers.
It is not possible to perform a direct measurement with-
out a current transformer with the UMG 96RM.
Only AC currents (and not DC currents) can be meas-
ured.
L2
L3
N
L1
c
Attention!
The current measurement inputs are
dangerous to touch.
m
Attention!
The UMG 96RM is not suitable for the
measurement of DC voltages.
c
Earthing current transformers!
If a connection is provided for earthing
the secondary winding, it must be connected
to the earth.

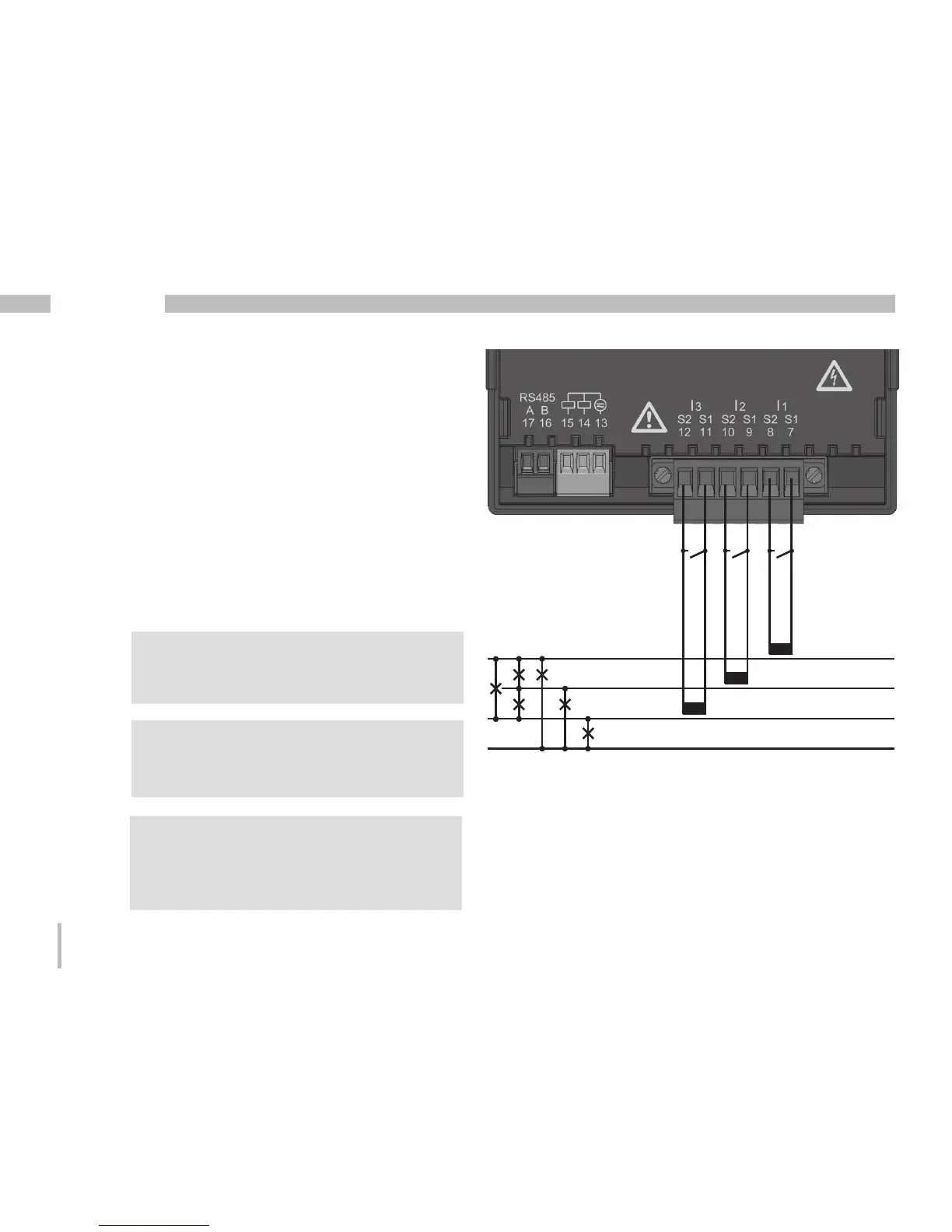

Fig. Current measurement via current transformer
(connection example)
Load
