UMG 96RM
Ammeter
If you want to measure the current not only with the UMG
96RM but also with the ammeter, the ammeter must be
connected in series with the UMG 96RM.

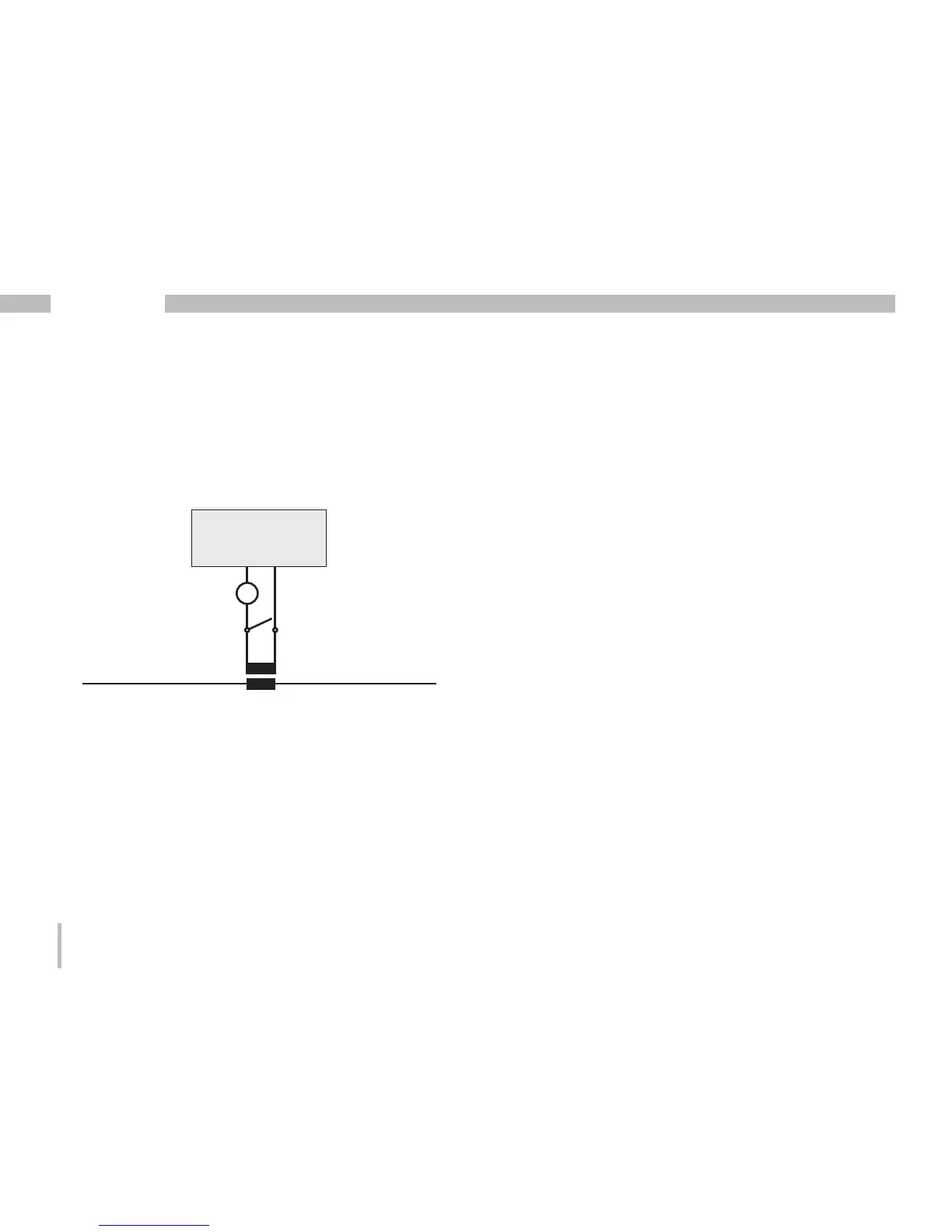

Fig. Current measurement with an additional
ammeter (example).
Supply Consumer
UMG 96RM
1 2
I1
A
(k)S
1
(K)P
1
S
2
(l)
P
2
(L)
