State of digital output 1
State of digital output 2

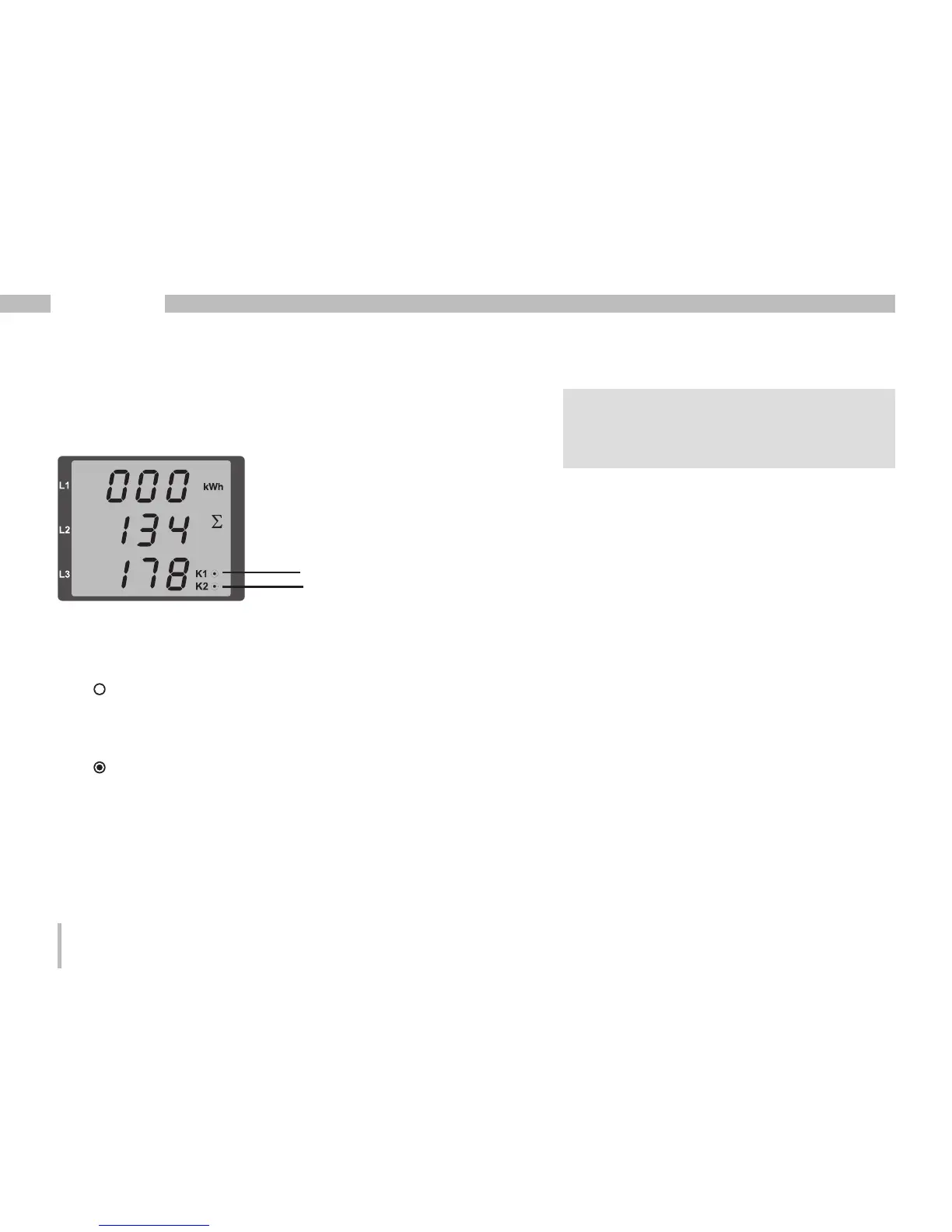

Digital outputs - status indicators
The status of the switching outputs is represented
in the UMG 96RM display by circular symbols.
States of the digital output
A current of <1 mA can flow.
Digital output 1: Address 608 = 0
Digital output 2: Address 609 = 0
A current of <50 mA can flow.
Digital output 1: Address 608 = 1
Digital output 2: Address 609 = 1
Since the display is only updated once
per second, faster changes of the output
states cannot be displayed.
