5. Assembly
5.1 Installation location
Install the device in stationary and weather-
protected front panels of switching cabinets in
the interior.
ATTENTION
Property damage due to noncompliance with
the assembly instructions!
Noncompliance with the assembly instructions
can damage or destroy your device.
· Observe the information for the installation
location in the “Assembly” and “Technical
data” sections.
· Ensure sufficient air circulation in your
installation environment and, where
applicable, sufficient cooling with high
temperatures!
· Ground conductive switchboards!
5.2 Installation position
· Cut-out size: 92
+0.8
mm x 92
+0.8
mm.
· For sufficient ventilation, adhere to the
distances to neighboring parts.
· The installation position is discretionary.
5.3 Fastening
Fasten the device with the mounting brackets
(snap-on mounting brackets) belonging to the
scope of delivery as follows:
1. Remove the mounting brackets (snap-on
mounting brackets) on the device.
2. Insert the device from the front into the
recess (92
+0.8
mm x 92
+0.8
mm) of your
switchboard.
3. Slide the mounting brackets (snap-on
mounting brackets) onto the catch provided
for this until the device audibly snaps in place
and is firmly seated in your switchboard.

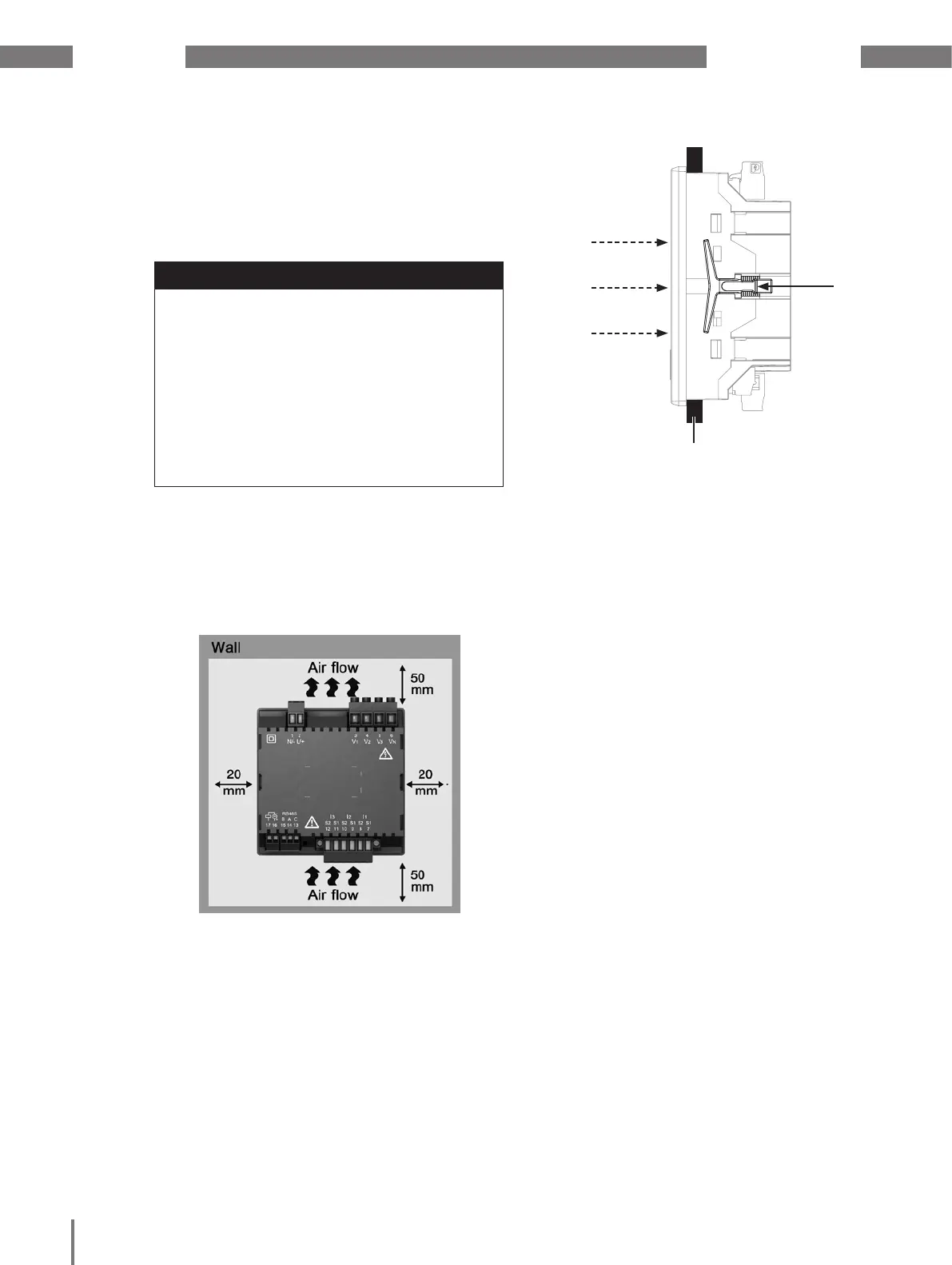

Fig. Rear view of the installation position of the device.
Fig. Side view of the device - fastening with snap-on mounting
brackets.
Switchboard
Insert the device
from the front
Mounting brackets
with catch
