UMG 96-S2 www.janitza.com
26
7.5.2 Summation current measurement
For a summation current measurement via two
current transformers, first set their total trans-
formation ratio on the device (setting the current
transformer ratios, see starting from chap. 12.4
on page 36).
Example:
The current measurement occurs via two current
transformers. Both current transformers have a
transformation ratio of 1000/5 A. The summation
measurement is performed with a summation
current transformer 5+5/5 A.
Set the device as follows:
Primary current: 1000 A + 1000 A = 2000 A
Secondary current: 5A
UMG
S2
I
S
1
P1
P2
Einspeisung 1
Supply 1
Einspeisung 2
Supply 2
1P1
1P2
(K)
(L)
(k)
(l)
1S
2
1S1
1S1 1S2 2S1 2S2
2S1
2S2
(k)
(l)
(K)
(L)
2P
1
2P2
Verbraucher A
Consumer A
Verbraucher B
Consumer B

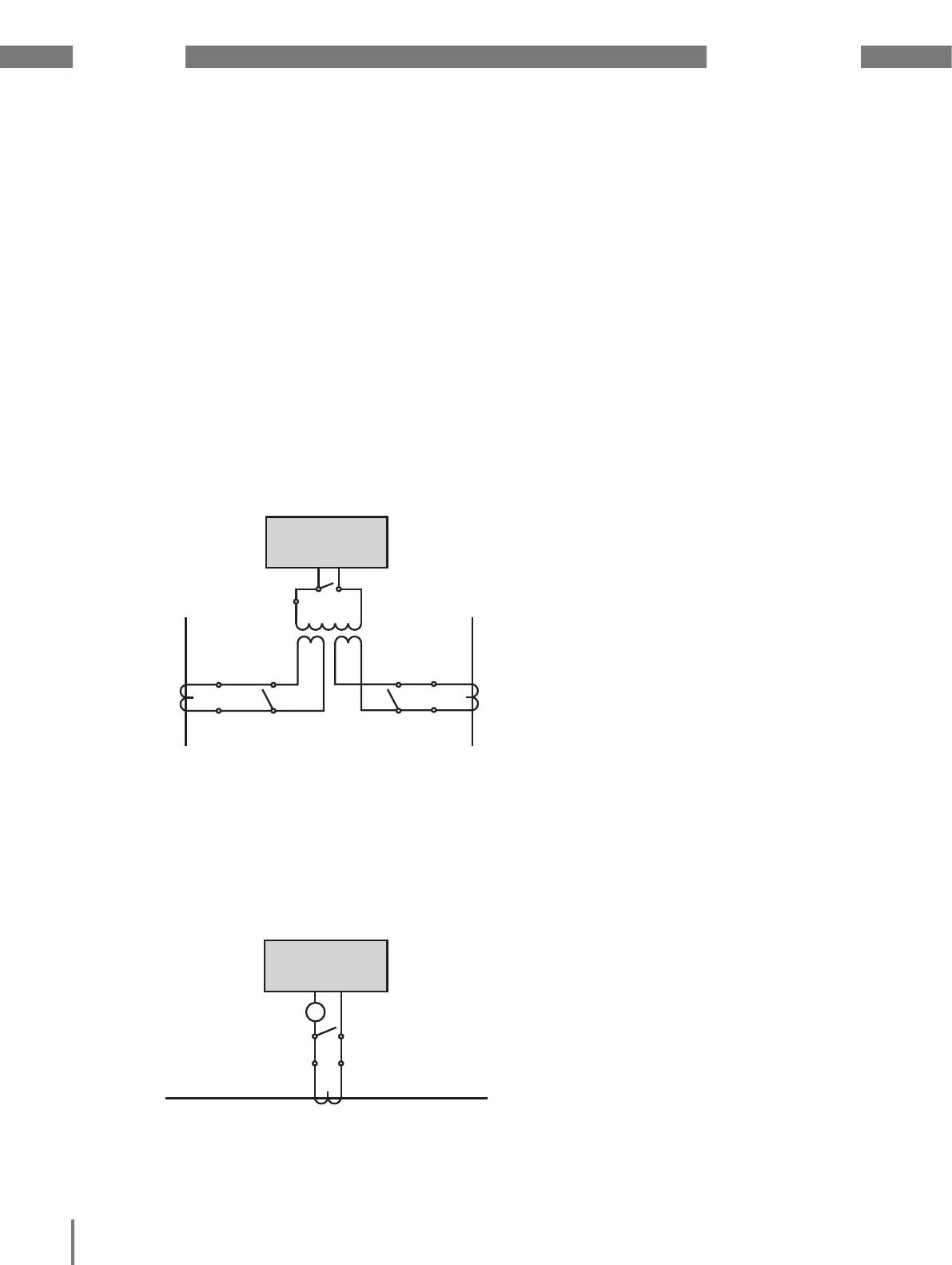

Fig. Example for the current measurement via a summation
current transformer
7.5.3 Ammeter
For a current measurement with an additional
ammeter, connect the ammeter in series to the
UMG:
UMG
S2
I
S
1
Einspeisung
Supply
Verbraucher
Consumer
A
(k)S
1 S2(l)
P
2(L)(K)P1
Fig. Circuit diagram with ammeter in series connection
