Janome MC300E - Adjusting Height of Embroidery Foot P

18
MC300E
Adjusting Height of Embroidery Foot P

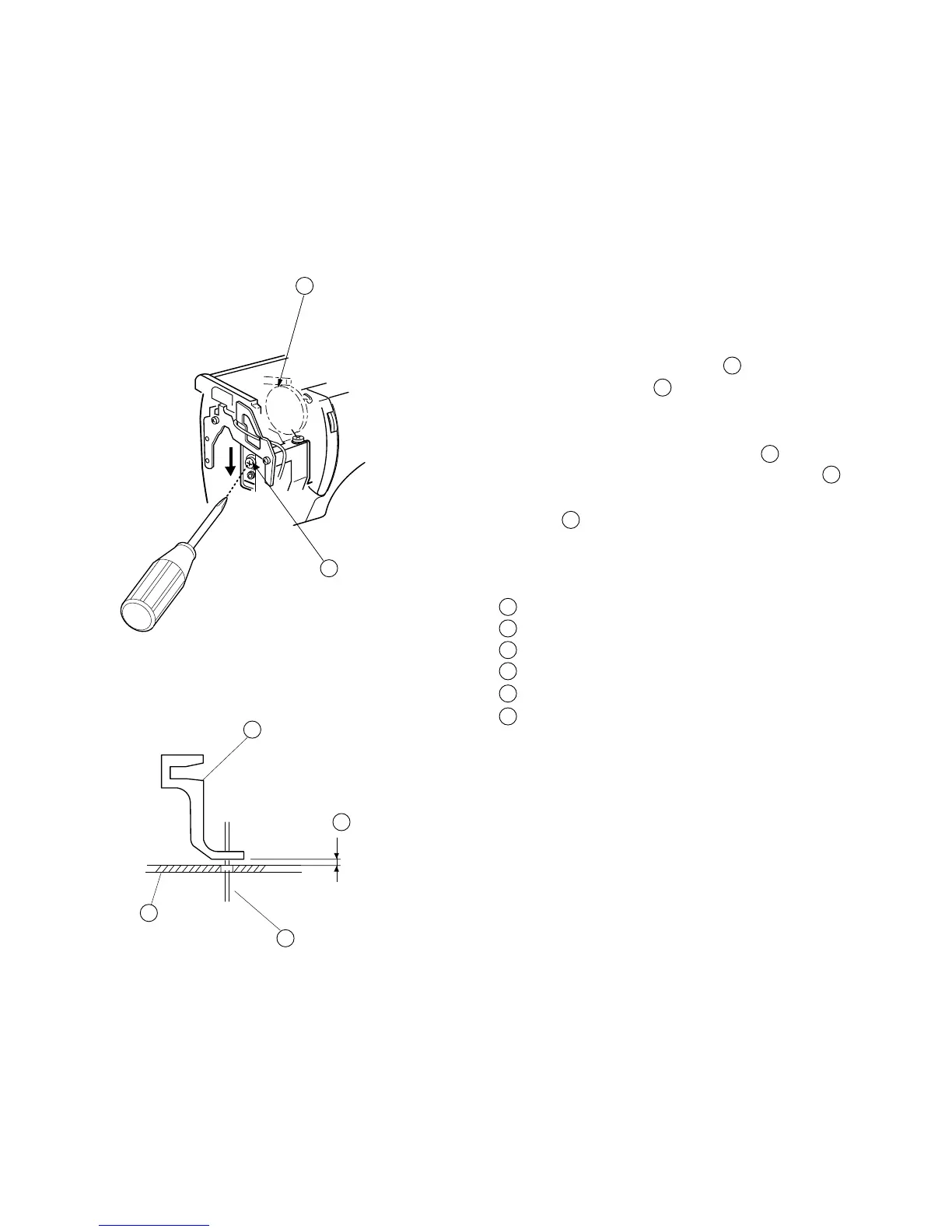

Space between the needle plate and the bottom surface of the Foot (P) should be
1.0 to 1.6 mm, when the needle bar is at its lowest position.
1 Remove the front cover unit. (See page 6)
2 Lower the needle bar and lower the presser foot lifter.
3 Insert the 1.2 mm Thickness gauge between
the Embroidery Foot (P) and the needle plate.
4 While pressing the Pressure bar actuator down
against the upper shaft cam, loosen the Screw (A)
and push it down to the direction of arrow, then tighten
Screw (A) again.
5 Reattach the rear cover.
Thickness gauge
Embroidery foot (P)
Pressure bar actuator
Screw (A)
Needle
Needle plate
