Janome MC300E - Adjusting X and Y Sensors

26
MC300E

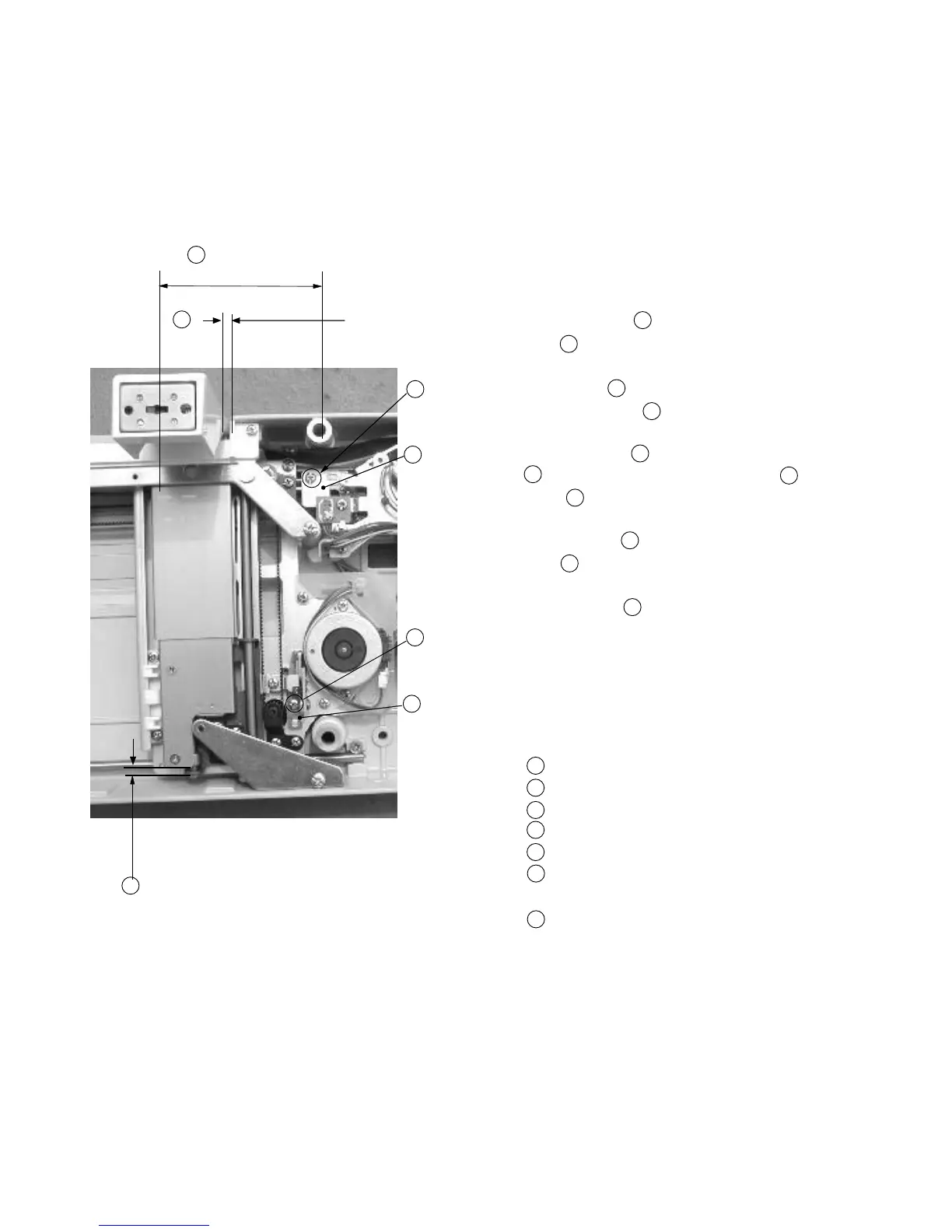

Adjusting X and Y Sensors
To adjust X and Y sensors:
1 Turn the power switch “ON” (The carriage is
automatically set at starting position.)
2 Turn the power switch “OFF” and then remove the
base unit.
3 Loosen Screw A and move the Y-Sensor fixing
plate to adjust the carriage position.
Turn the power switch “ON” again to check if the
Distance (Y) is adjusted to 2.5 mm.
Tighten Screw (A) .
4 Loosen screw B and move the X-shield plate
to adjust the carriage position (X-1) and
(X-2) .
Turn the power switch “ON” again to check if the
distance (X-1) is adjusted to 69.5 mm and
(X-2) is adjusted to 2.5 mm.
5 Tighten Screw .
6. Attach the base.
1
2
3
4
5
7
6
1
2
3
4
5
6
7
5
Screw (A)
Y (2.5 mm)
Y Sensor fixing plate
Screw (B)
X-1 (69.5 mm)
X-2 (2.5 mm) between the edge of carriage
and Base
X shield plate
1
6
7
2
4
5
3
6
4
1
