Janome MC300E - Replacing Printed Circuit Board A

20
MC300E

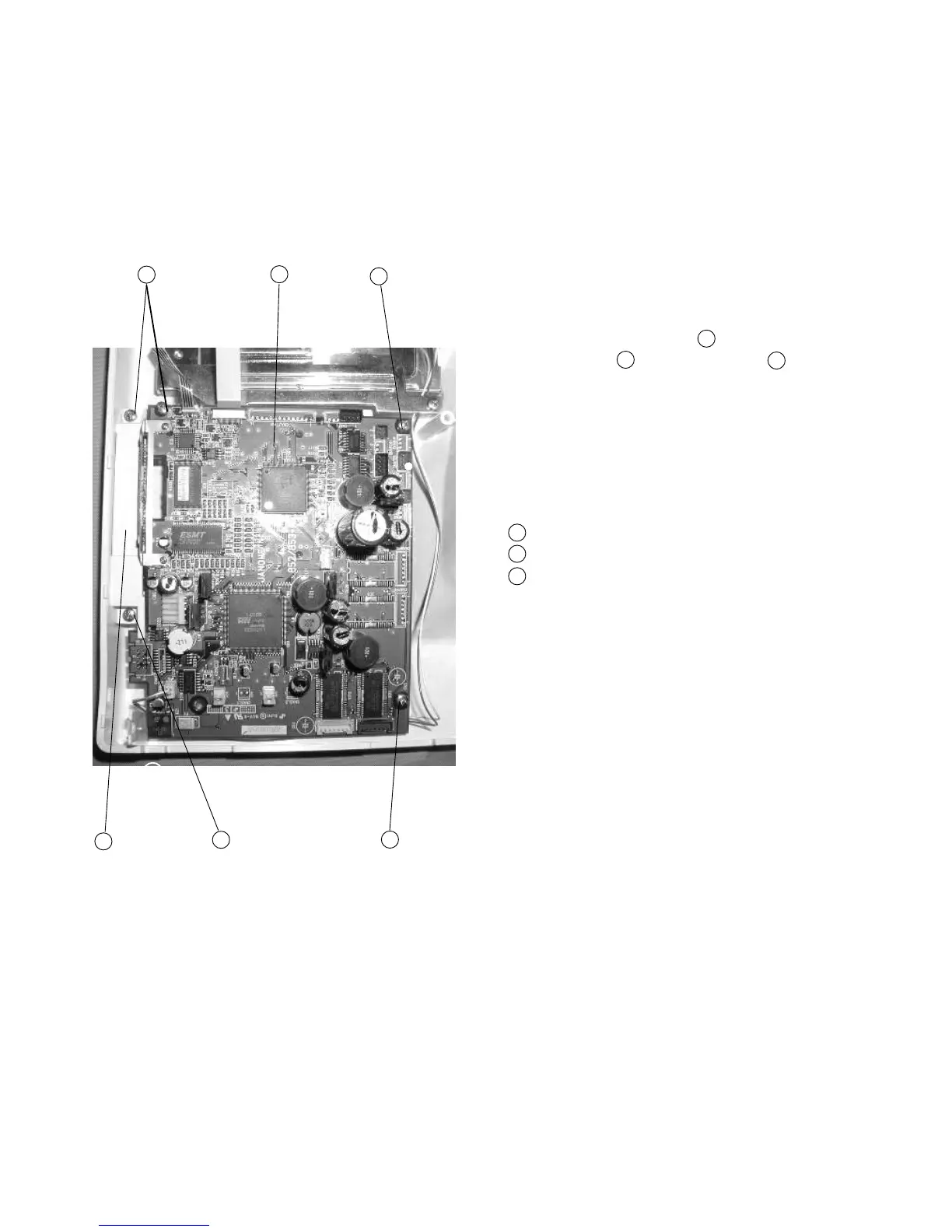

Replacing Printed Circuit Board A
To remove:
1 Remove the front cover. (See page 6)
2 Pull out the connectors of printed circuit board F
LCD Harness, Inverter and Touch panel.
3 Remove Screws (5 pieces) and the Printed
circuit board A with the Card guide .
To attach:
4 Follow the above procedure in reverse.
1
1
2
1
3
1
Screws (5 pieces)
Printed circuit board (A)
Card guide
1
2
1
2
3
3
