Janome MC300E - Replacing Carriage Plate (Unit)

25
MC300E

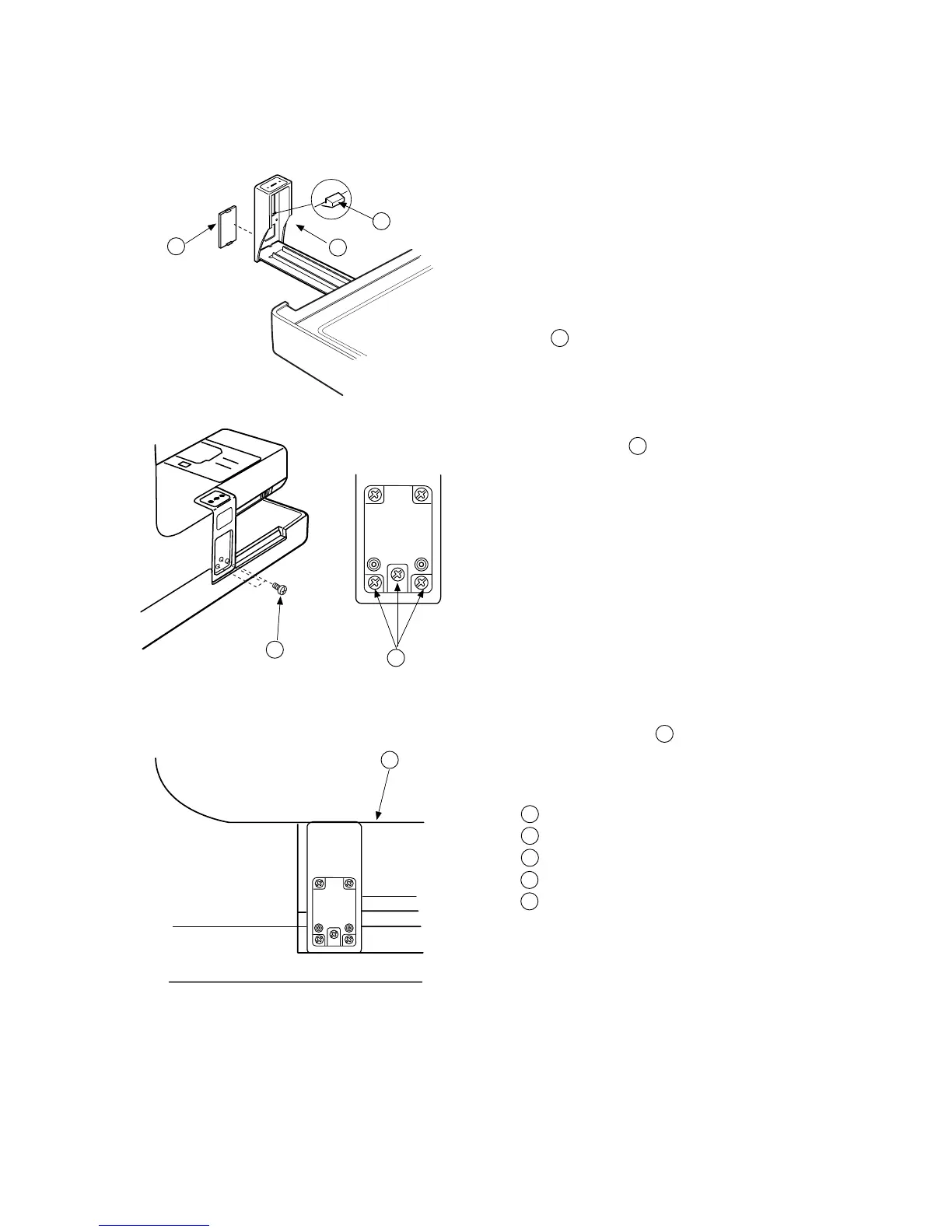

Replacing Carriage Plate (Unit)
To remove:
1 Turn the power switch “ON” and select the pattern No.1.
2 Turn the power switch “OFF” and remove the Cover
cap . (Unlock the hook from the inside.)
3 Turn the power switch “ON” to return the carriage to
the home position.
4 Remove Screws (3 pieces) and remove the
carriage plate.
To attach:
5 Attach the carriage plate (unit) and tighten screws
temporarily.
6 Adjust the carriage plate position so that its top surface
is parallel and the same level with the bed surface.
Tighten the screws securely.
7 Attach the cover cap .
1
2
3
4
4
5
Cover cap
Hook
Drop plate
Screws
Arm surface
1
4
1
1
2
3
4
5
