Janome MC6300P - BELT COVER AND MACHINE BASE REMOVAL; Belt cover removal and attachment; Machine base removal and attachment

2
Setscrew (B)
Setscrew A)
Machine base
Setscrew (A)
Setscrew (C)
Belt cover
Setscrew (B)
Projection (F)
Projection (E)
Rubber
plug
Washer
Setscrew (E)
Machine rest
(20 cm high)
Belt cover

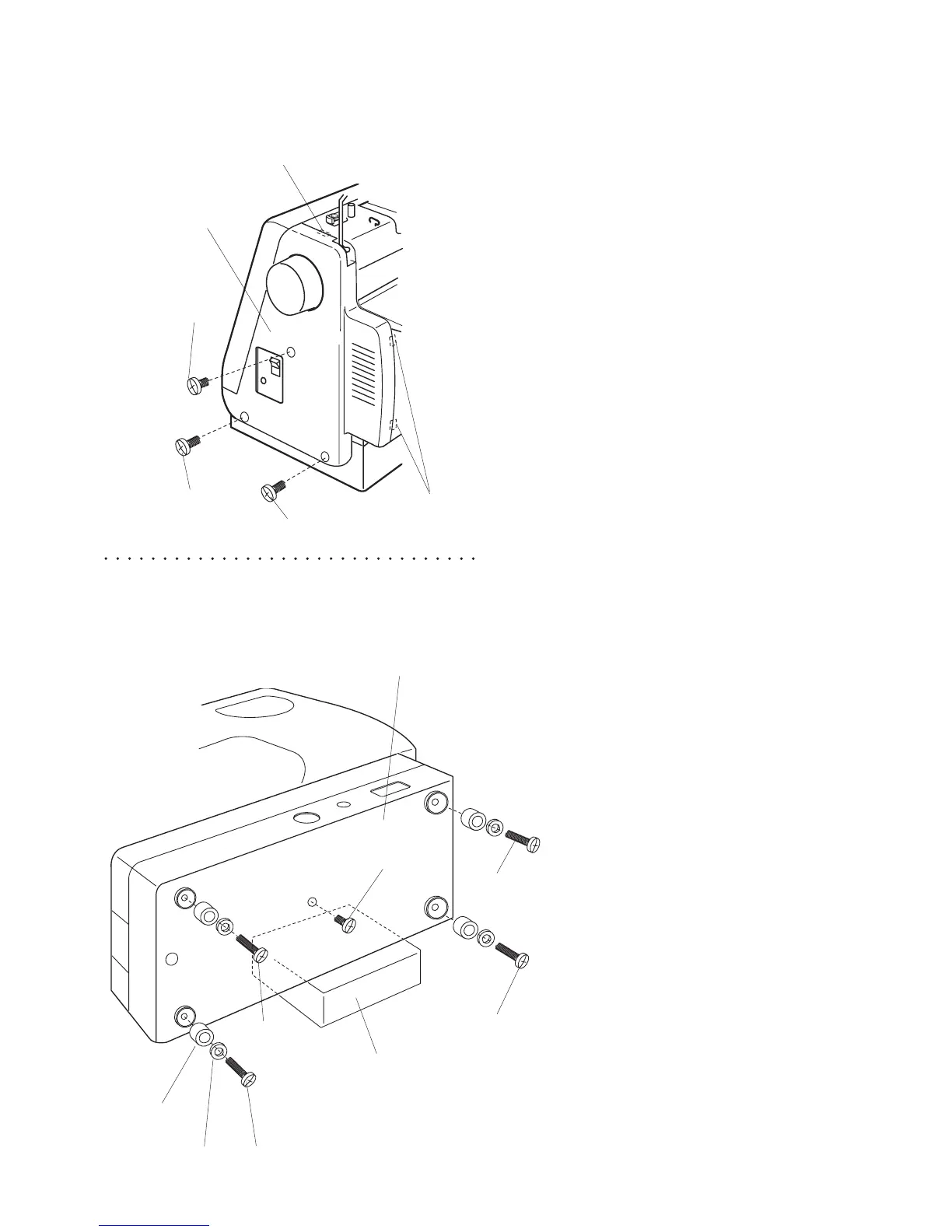

[ To remove ]:
1. Remove the setscrews (A), (B) and (C).
2. Remove the belt cover
[ To attach ]:
3. Insert the projections (D), (E) and (F) and
tighten the setscrews (A), (B) and (C).
Machine base
[ To remove ]:
Remove the 3 setscrews (A), (B) and (C)
[ To attach]
Attach the machine base with the 3 setscrews
(A), (B) and (C).
Setscrew (D)
Setscrew (C)
TO REMOVE BELT COVER AND MACHINE BASE
