Setscrew (A)

Auto hread

cutter cover

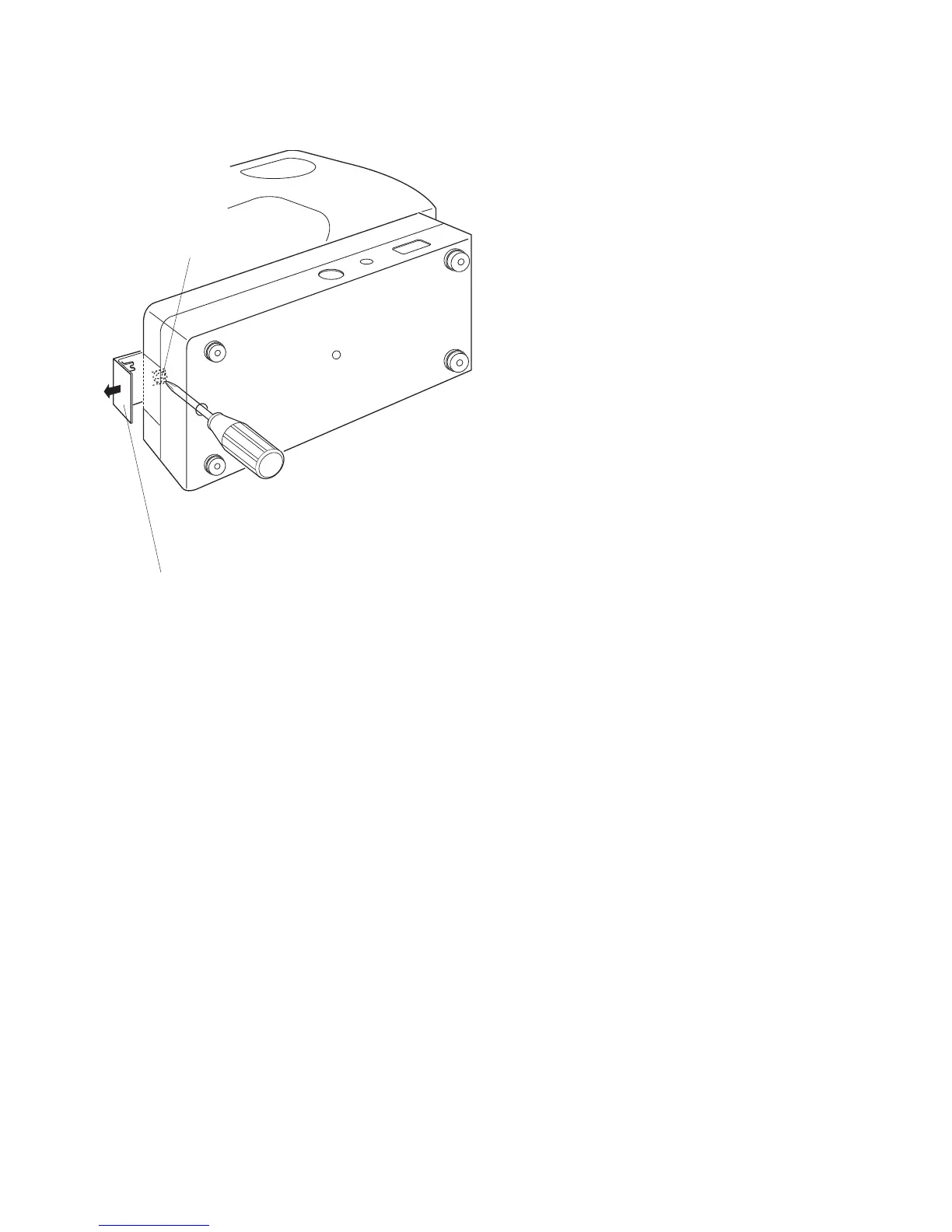

TO REMOVE AUTO THREAD CUTTER COVER

[ To remove ]:

Loosen the setscrew (A) and pull off the auto hread

cutter cover.

[ To attach ]:

Replace the auto thread cutter cover and tighten

the setscrew (A).

Table of Contents2
To Remove Face Plate and Top Cover3
To Remove Belt Cover and Machine Base4
To Remove Auto Thread Cutter Cover5
To Remove Front Cover6
To Remove Cover7
To Remove Thread Guide8
To Remove Circuit Board "A" and Fuse9
To Remove Circuit Board "K10
To Remove Tcircuit Board "F" and Speed Control Lever11
Connection of Connectors12
To Adjust Needle Drop Position13
To Adjust Hook Timing14
To Adjust Needle Bar Height15
To Adjust Clearance between Needle and Rotary Hook16
To Adjust Backlash between Hook Drive Gear and Lower Shaft Gear17
To Adjust Direction of Presser Bar and Its Height18
To Adjust Feed Dog Height19
To Remove Needle Thread Tension Unit20
To Adjust Tension Release Mechanism (1)21
To Adjust Tension Release Mechanism (2)22
To Adjust Upper Thread Tension23
To Adjust Bobbin Winder24
To Adjust Needle Threader Plate25
Replacement of the Thread Cutter Unit (New Type)26
Replacement of the Thread Cutter Unit (Old Type)27
To Adjust Position of Sliding Plate28
To Adjust Thread Supply Control Lever29
Setting Position of Thread Take up Lever30
To Adjust the Upper Shaft Declutch Device31
Setting Positions of Parts on Lower Shaft32
Setting Positions of Upper and Lower Shafts33
To Replace Driving Motor34
To Adjust Zigzag Timing35
To Adjust Buttonhole Lever Position36
To Adjust Stretch Stitch Feed Balance37
To Adjust Presser Bar Foot Lifter Switch Position38
To Adjust Auto Thread Cutter Switch Position39
To Adjust Position of Solenoid for Upper Shaft Declutch Device40
To Adjust Postion of Solenoid for Auto Thread Cutter41
To Adjust Position of Solenoid for Bobbin Idling Prevension Lever42
Diagnosis Chart43
Function Buttons44
How to Find the Version of the Operating System Program of the Machine49
When the Feed Dog Does Not Return to "UP" Position50
