Jaylor Owner Manual - 59 - Mini Mixer Models

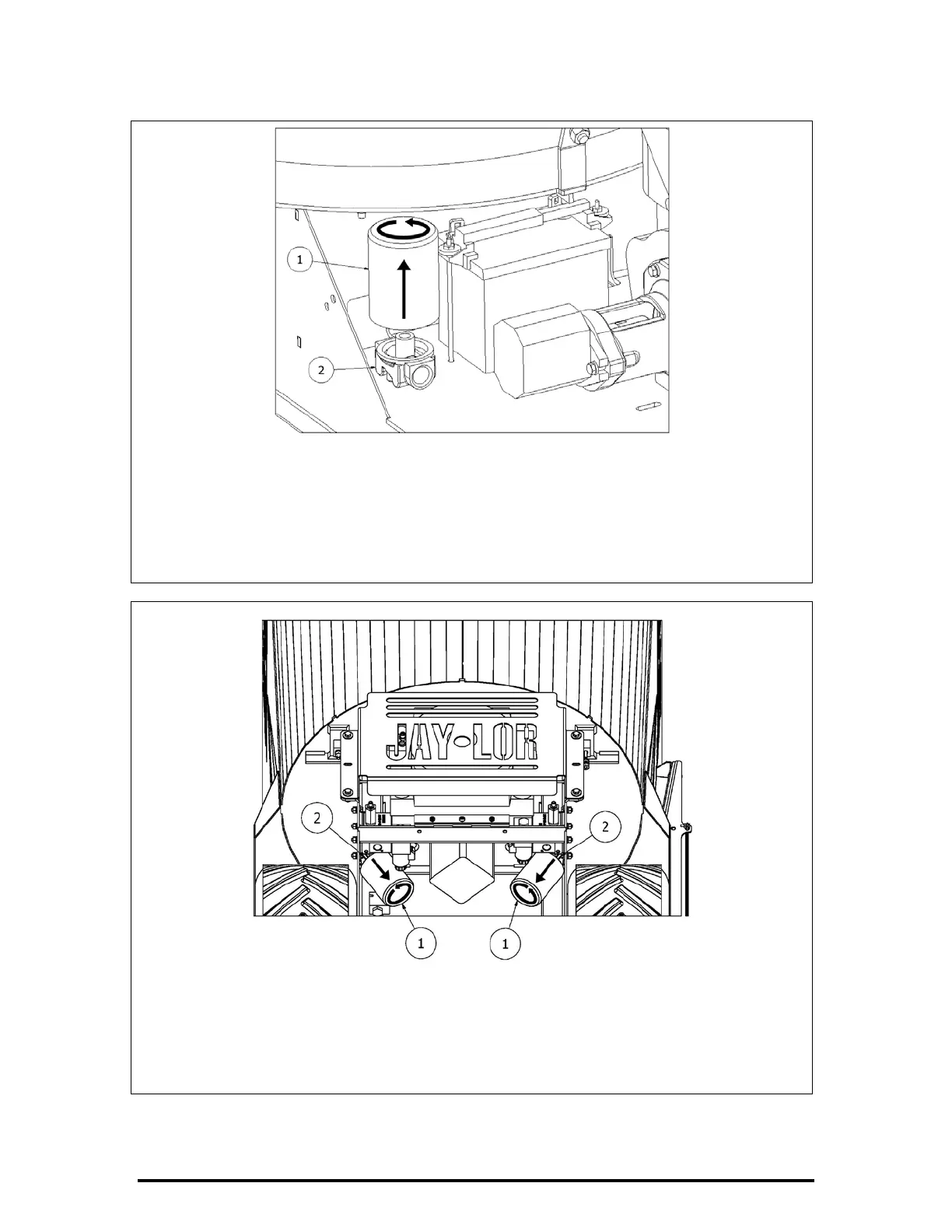

Figure 47 - A50 Trailer, Stationary, Truck Mounted Hydraulic Oil Filter Location
1. Spin-on Filter Element - Rotating the element counterclockwise by hand will release the
element from the filter head. Likewise, rotating the element clockwise will tighten it.
2. Filter Head
NOTE – Hydraulic fittings and hoses in this figure have been removed for clarity.
Figure 48 - A100 Self-Propelled, Trailer, Truck Mounted Hydraulic Oil Filter Locations
1. Spin-on Filter Element - Rotating the element counterclockwise by hand will release the
element from the filter head. Likewise, rotating the element clockwise will tighten it.
2. Filter Head
NOTE – Hydraulic fittings and hoses in this figure have been removed for clarity.
