104

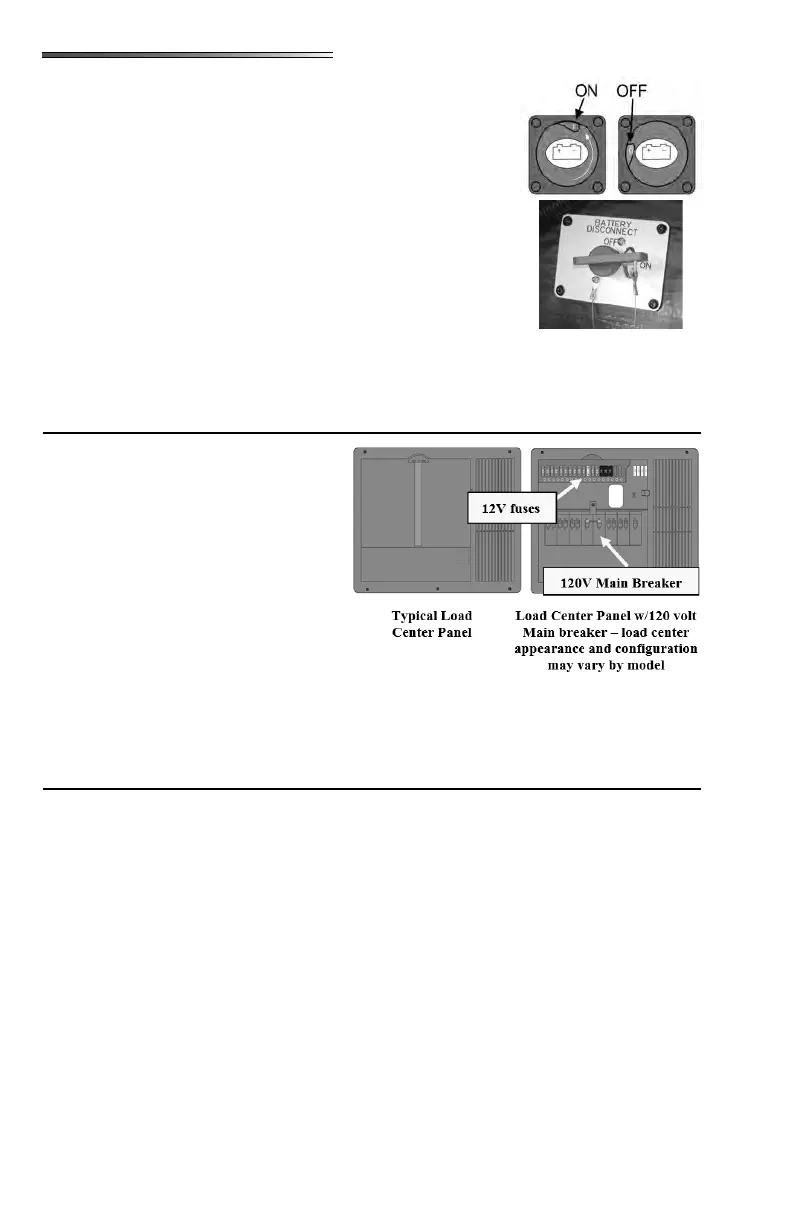

When this switch is ON, there will be a green area showing a
“1” along the top of the switch. To turn the switch OFF, turn it
counter-clockwise until you see the red area along the left side of
the switch showing a “0” (zero).
To operate this switch, turn the lever counter-clockwise to turn
o all 12VDC power to the fuse panel in the RV. The lever can
be removed and is equipped with a lanyard to keep the key from
getting lost.
120-Volt Circuit Breakers
The 120-volt AC circuit breakers located inside the load center protect all 120-volt wiring
and components from circuit overloads and short circuits. Should a circuit overload or short
circuit occur the circuit breaker protecting the aected circuit will “trip” preventing the ow
of electricity through that circuit.
If a circuit breaker trips, shut “o” the appliance on that circuit (i.e., power converter etc.)
and allow the circuit breaker to cool down for a brief period of time. After it cools down,
reset the circuit breaker by moving its lever “o” and then back to the “on” position. If the
circuit breaker re-trips or frequently trips, contact your dealer to have the electrical problem
diagnosed and repaired.
A circuit breaker identication label is permanently attached to the inside surface of the
120-volt Load Center.
Load Center
The Load Center contains 12VDC fuses
and 120VAC circuit breakers for almost
all of the electrical appliances and circuits
in the RV. The 120V main breaker may
be located in this panel and will turn o
all 120-volt power to the RV. Locations
will vary by model. Refer to the diagram
inside the load center for specic fuse as-
signments.
Motorhomes may have separate small
panels for breakers and fuses. They are
normally located in close proximity to
each other typically in the bed platform. The converter is also mounted separately (typically
under the bed platform).
