68

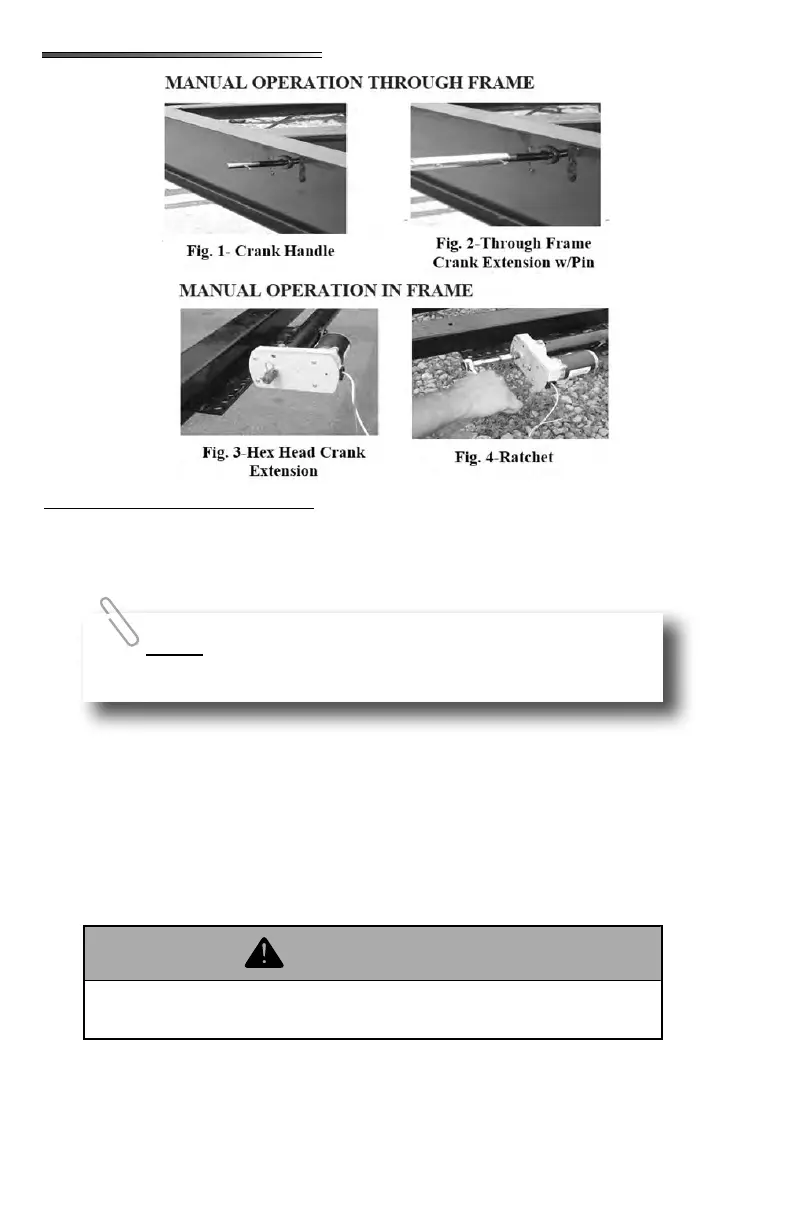

The in-wall slideout system requires no maintenance or adjustments. This system has two
vertical columns with a drive motor located at the top of each column. The right and left
motors are synchronized by a circuit board.Schwintek slideouts are typically used on both
towables and motorhomes.
Press the on/o button to power on the remote.
Press the corresponding button of the slideout you want to operate.
Press and hold the (extend/retract) arrow button to move the room in or out.
Press the on/o button once more to power o the remote.
allow the controller to stop both motors before releasing the switch button.
try to time the end of the stroke by releasing the button early.
This slideout system requires very little maintenance. It contains a pre-lubed bearing that is
lubricated when the room is moved in and out. Do not spray oil or grease on the rails while
the room is extended.
Do not operate the switch after the room is fully extended or
retracted as damage can occur to the motor and/or switch.
Do not work on your system unless the 12-volt DC (auxiliary battery) and 120-
volt AC electrical systems (shore line power cord) have been disconnected.
