Section F Transmission
9803/8550
Section F
1 - 3

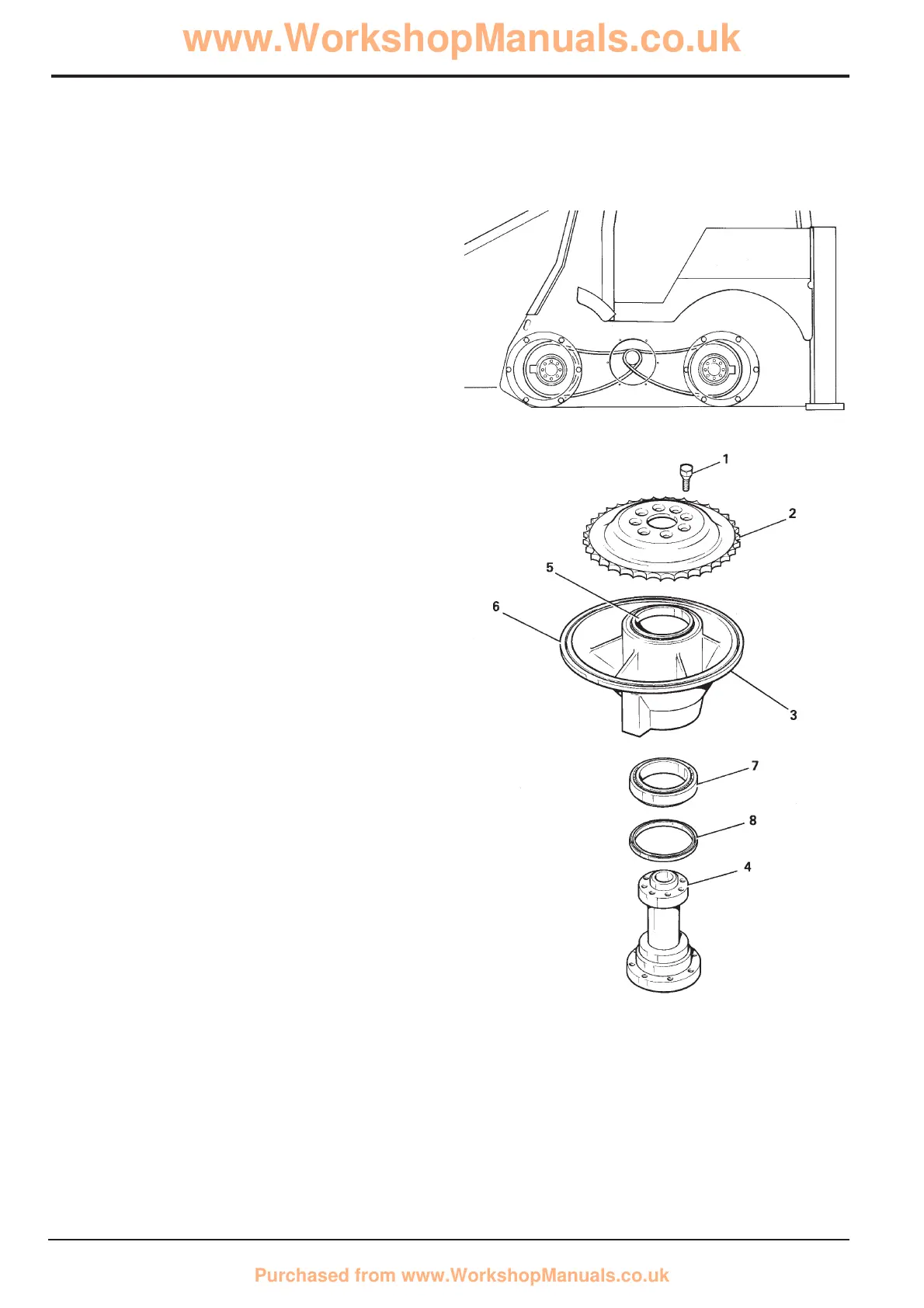

Wheel Hub Assembly
Dismantling
It is assumed that the roadwheels have been removed and
the hub assembly removed from the chain case.
The numerical sequence is a guide to dismantling.
Remove bolts 1 (8 off) and drive sprocket 2. Support the
assembly on face 3 and press out the stub axle assembly 4.
Bearing 5 will remain in the casing 6, and can be removed
separately if necessary. The bearing cap of bearing 7 will
also be left in the casing and can be removed if necessary.
Shaft seal 8 should be removed from the stub axle 4 and
discarded. Examine the stub axle and casing for wear or
damage.
Assembly
The numerical sequence shown in the dismantling
procedure should be reversed.
Lubricate all bearings and seals with JCB Special MPL
Grease before assembly.
Clean the mating faces of the sprocket and hub before
assembly using JCB Cleaner/Degreaser. Apply JCB
Retainer (High Strength) to the stub axle mounting face and
place the sprocket onto the stub axle.
Apply JCB Retainer (High Strength) to bolts 1. Tighten
evenly to the correct torque in a diagonal sequence whilst
rotating the hub to seat the bearings.
Torque Settings
Nm lbf ft kgf m
Drive sprocket bolts 1 (8 off) 220 162 22
1 - 3
Issue 2*
Tyres and Wheels
205130
*
*
