1 - 4
Circuit Protection
from machine no. 752371
Fuses

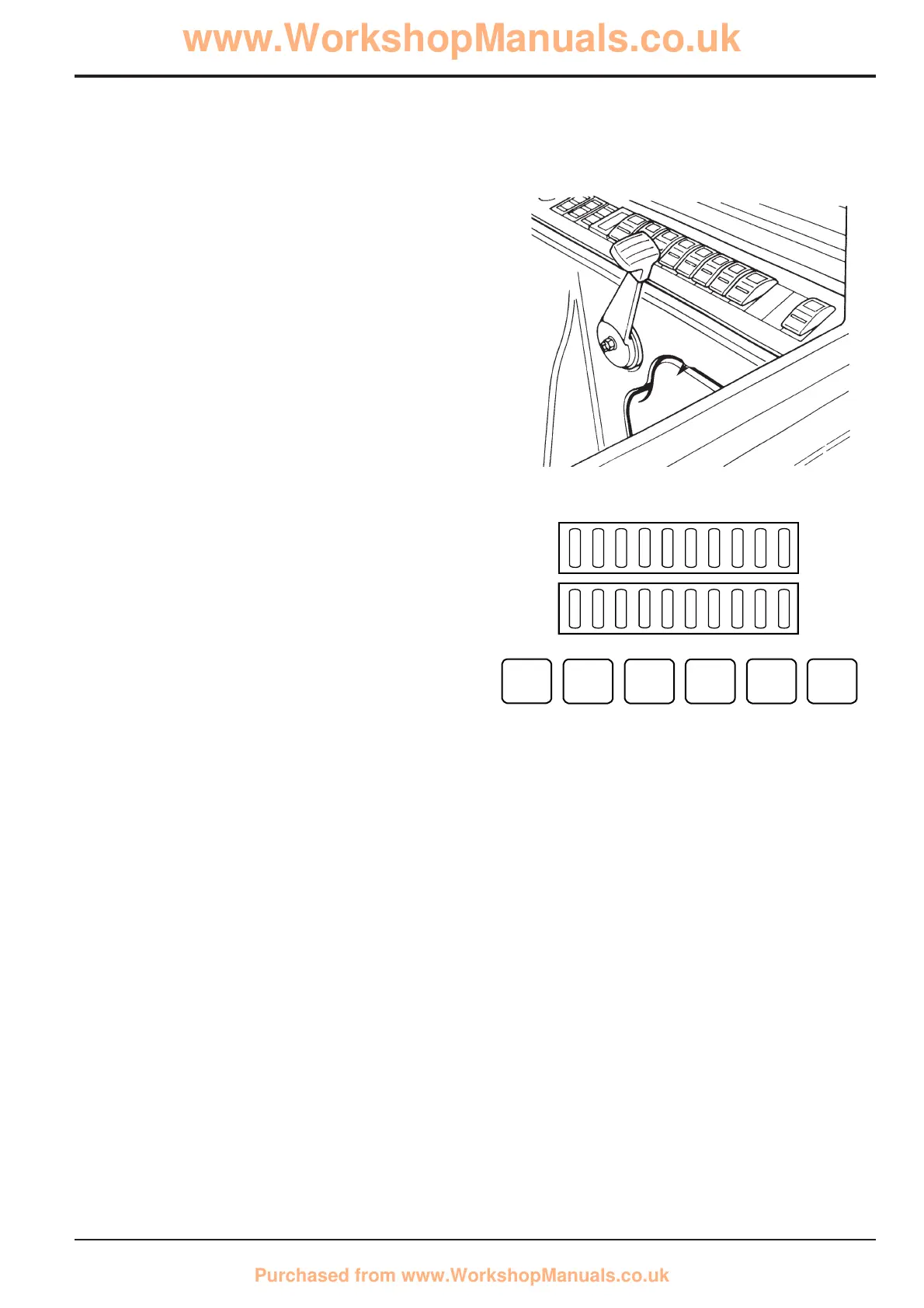

The electrical circuits are protected by fuses. The fuses are
located behind panel H.
A1 Park Brake
A2 Auxiliary Hydraulics
A3 High-flow Hydraulics
A4 Instrumentation
A5 Engine Shut-off Solenoid
A6 Float Hydraulics
A7 Rear Wiper
A8 Front / Rear Horn
A9 Beacon, Interior Light
A10 Hazard Indicators
B1 Dip Beam
B2 L.H. Side Lights
B3 R.H. Side Lights
B4 Front Work Lights
B5 Rear Work Lights
B6 Junction Box
B7 Heater Motor
B8 Front Wash/wipe
B9 Reverse Alarm, Brake Lights
B10 Direction Indicators
Fuse Colour Code
Orange 5 amp
Red 10 amp
Blue 15 amp
Relays from machine no. 752371
The relays are located behind panel H.
1 Neutral Start
2 Isolator
3 Ignition
4 Park Brake
5 Alarm Buzzer
6 Indicator Flasher
Section C Electrics
9803/8550
Section C
1 - 4
Issue 1
Technical Data
S203811
H
