Circuit Protection
up to machine no. 751599
Fuses

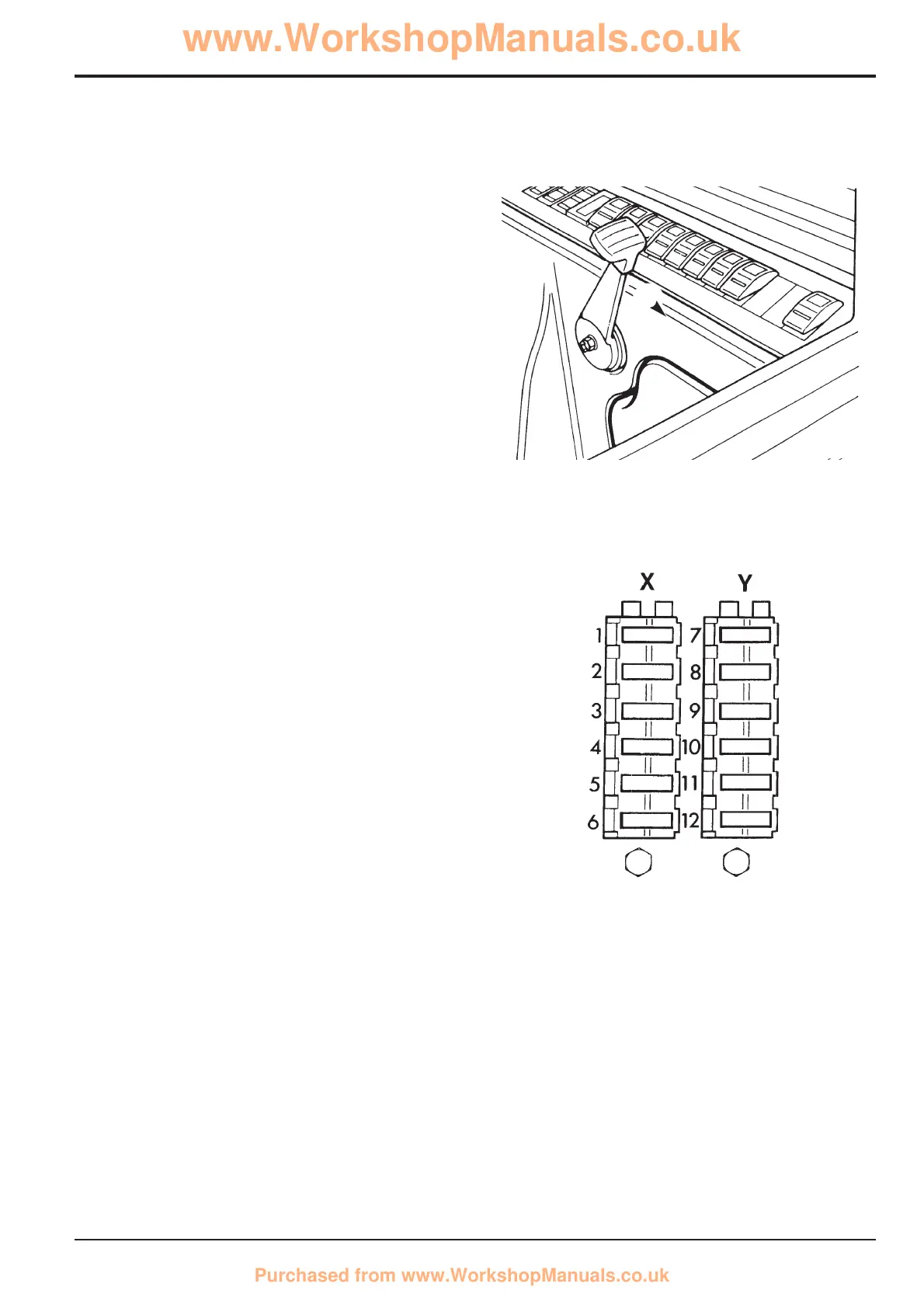

The electrical circuits are protected by fuses. The fuses are
located behind the panel A as shown in the illustration.
Fuse Service Fuse Size
Number
1 Beacon
Side lights and headlights 10 amp
2 Front worklights (see note) 10 amp
3 Interlock relay
Pressure reducing solenoid valve 5 amp
4 Auxiliary hydraulics
Rear worklights 10 amp
5 Warning lights and buzzer
ESOS 5 amp
6 Horn
Low coolant warning
Stabiliser warning 15 amp
7 Hazard warning
Rear wiper
Interior light 10 amp
8 Front wiper
Washer bottle
Direction indicators 10 amp
9 Heater
Heated seat 10 amp
10 Reverse alarm
Brake light unit 10 amp
11 R. H. front & rear sidelights 5 amp
12 L. H. front & rear sidelights 5 amp
Note: Fuse 2 also supplies, where fitted, Hydraulic Float,
Brake Lights and High-flow Hydraulics. If any or all of these
are fitted, the fuse rating is increased to 15 amps.
Section C Electrics
9803/8550
Section C
1 - 2
Issue 3*
