jcb 1CX User Manual

Section C Electrics
9803/8550
Section C
Issue 1
Technical Data
1 - 5

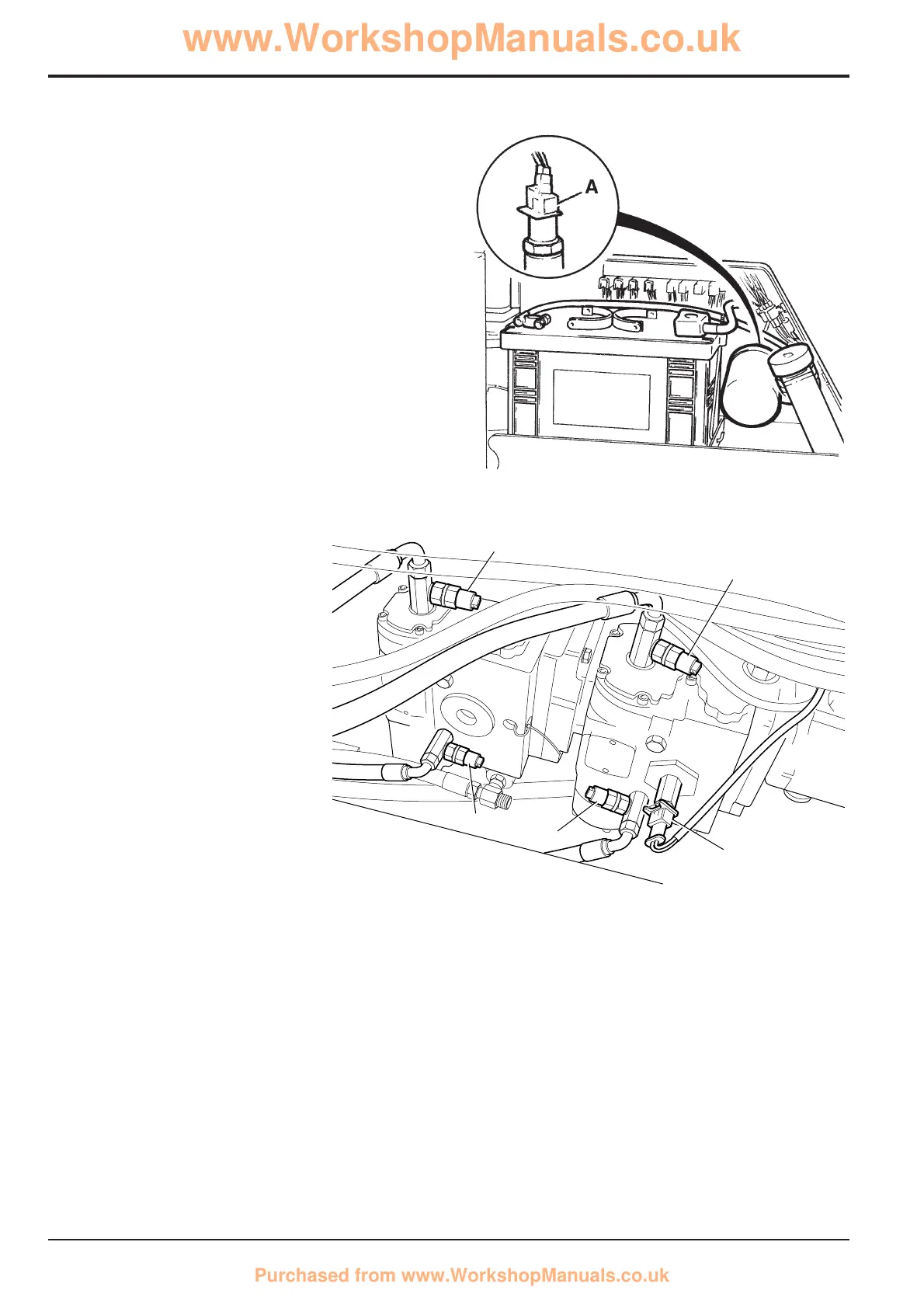

Sensing Switches
A Transmission Charge Pressure Switch.
Normally closed, opens at 2-3.4 bar (30-50 lbf/in
2
) falling.
B Transmission Oil Temperature Switch.
Normally open, closes at 107-113 °C (225-235 °F) rising.
C Reverse Alarm Pressure Switches.
Normally open, closes at 7 bar (100 lbf/in
2
) rising.
D Brake Light Pressure Switches.
Normally open, closes at 4 bar (58 lbf/in
2
) rising.
1 - 5
422990
B
C
C
D
D
423000
