Section 3
5 - 2
Greasing (cont'd)

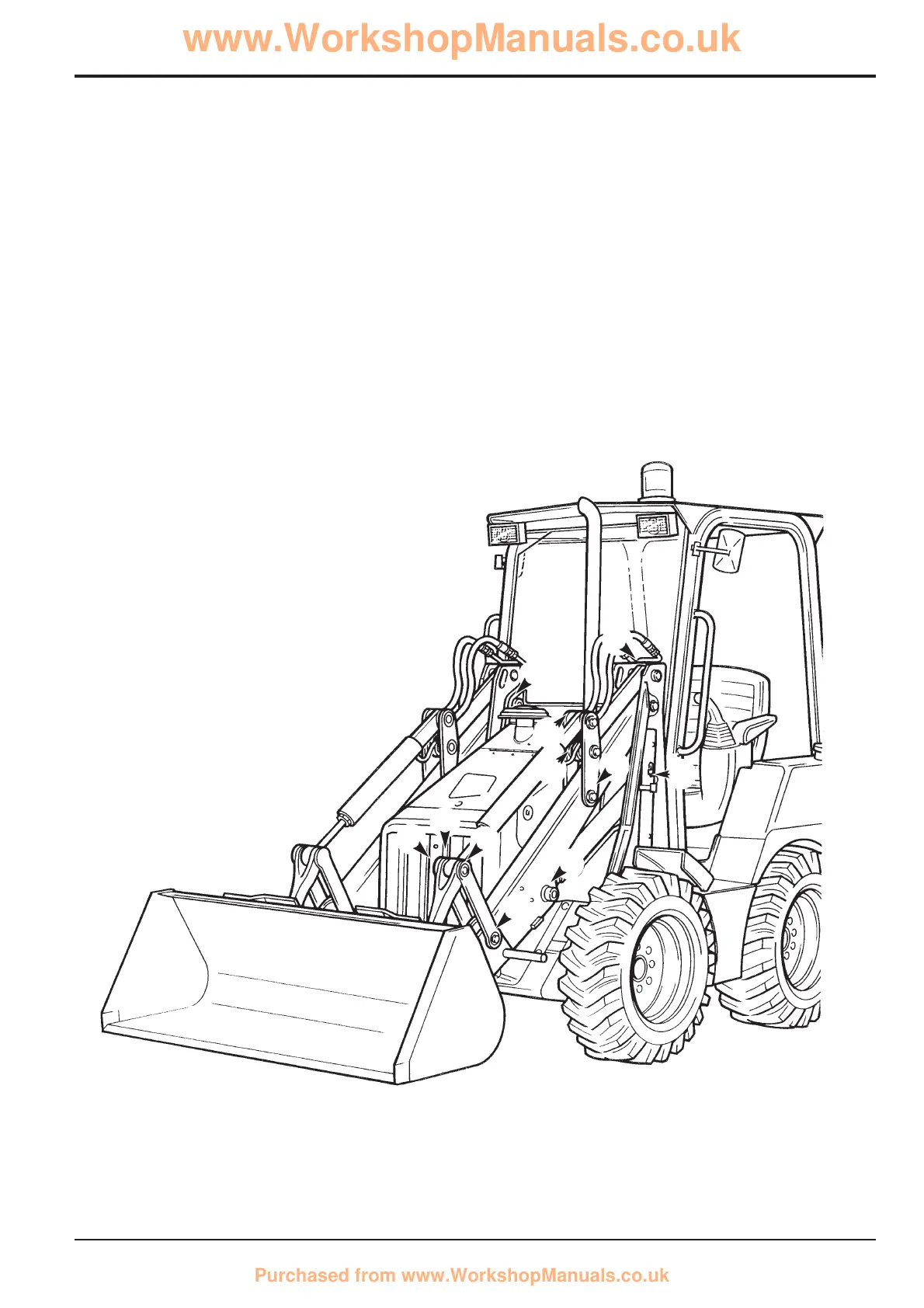

Loader Arm Pivot Points - for interval see Service Schedule
Switch off the engine and ensure it cannot be started while
you are doing this job.
For each grease point shown there is another on the other
side of the machine.
Note: Grease point 11 is at the lift ram/chassis pivot.
11 grease points each side -
Total 22 grease points.
!!
WARNING
Raised loader arms can drop suddenly and cause
serious injury. Before working under raised loader arms,
fit the loader arm safety strut.
2-1-1-6
Section 3 Routine Maintenance
9803/8550
5 - 2
Issue 1
0
1
2
7
3
9
5
4
6
!
8
203481
