101
EMERGENCY FUEL FLAP
OPENING
(where provided)
If the fuel fl ap is not unlocked due to
faults in the electrical unlocking system,
the fuel fl ap can be unlocked manually
using a cord located on the right side of
the boot, on the side panel near the fuel
fl ap.
Proceed as follows:

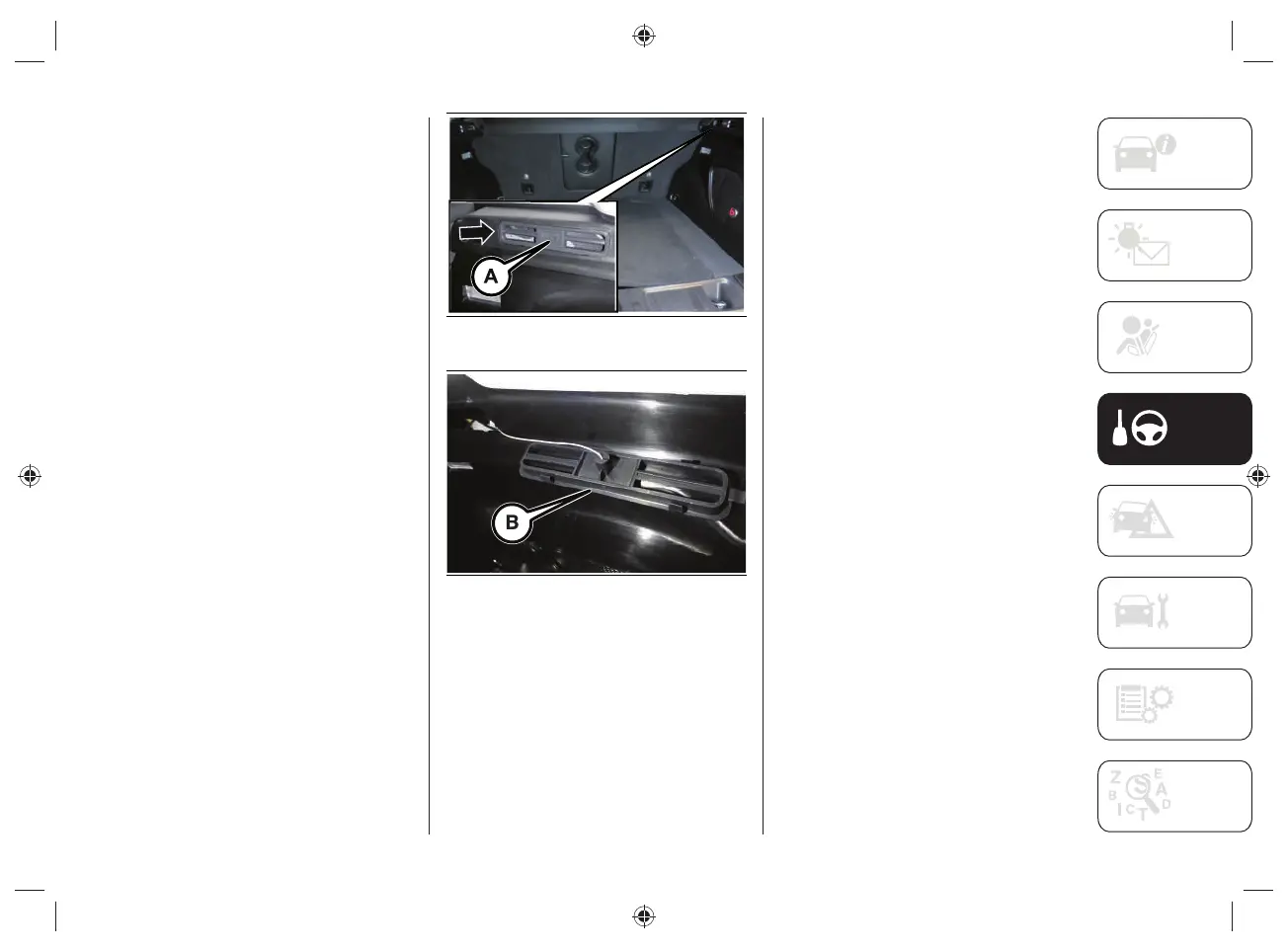

working inside the boot, remove the
cover mask (A)fig.83 removing it
toward the inside of the boot;
pull the cover mask (B)fig.84 to
unlock the fuel filler flap;
correctly reposition the cover mask in
its housing.
83 J0B0934E
84 J0B6136E
NOTE If refuelling is performed by
manually unlocking the fuel fl ap, special
attention must be paid to the reference
operation as the fuel may fl ow back.
