Jeep COMPASS 4xe - Charge Status Control Unit; Signal LED

KNOWING YOUR VEHICLE
22
CHARGE STATUS CONTROL
UNIT
33) 34)
Signal LED
There are three LEDs on the front of the
charge status control unit:
 GREEN LED on (A fig.8): indicates
correct operation in the domestic
power distribution system: it is
therefore possible to proceed with the
high-voltage battery charging.
 RED LED on (B fig.8): indicates a fault
in the charging system.
 YELLOW LED on (C fig.8): indicates a
possible failure in the domestic mains
power supply.
WARNING Never carry out any repair
work on your own: always contact the
Jeep Dealership.

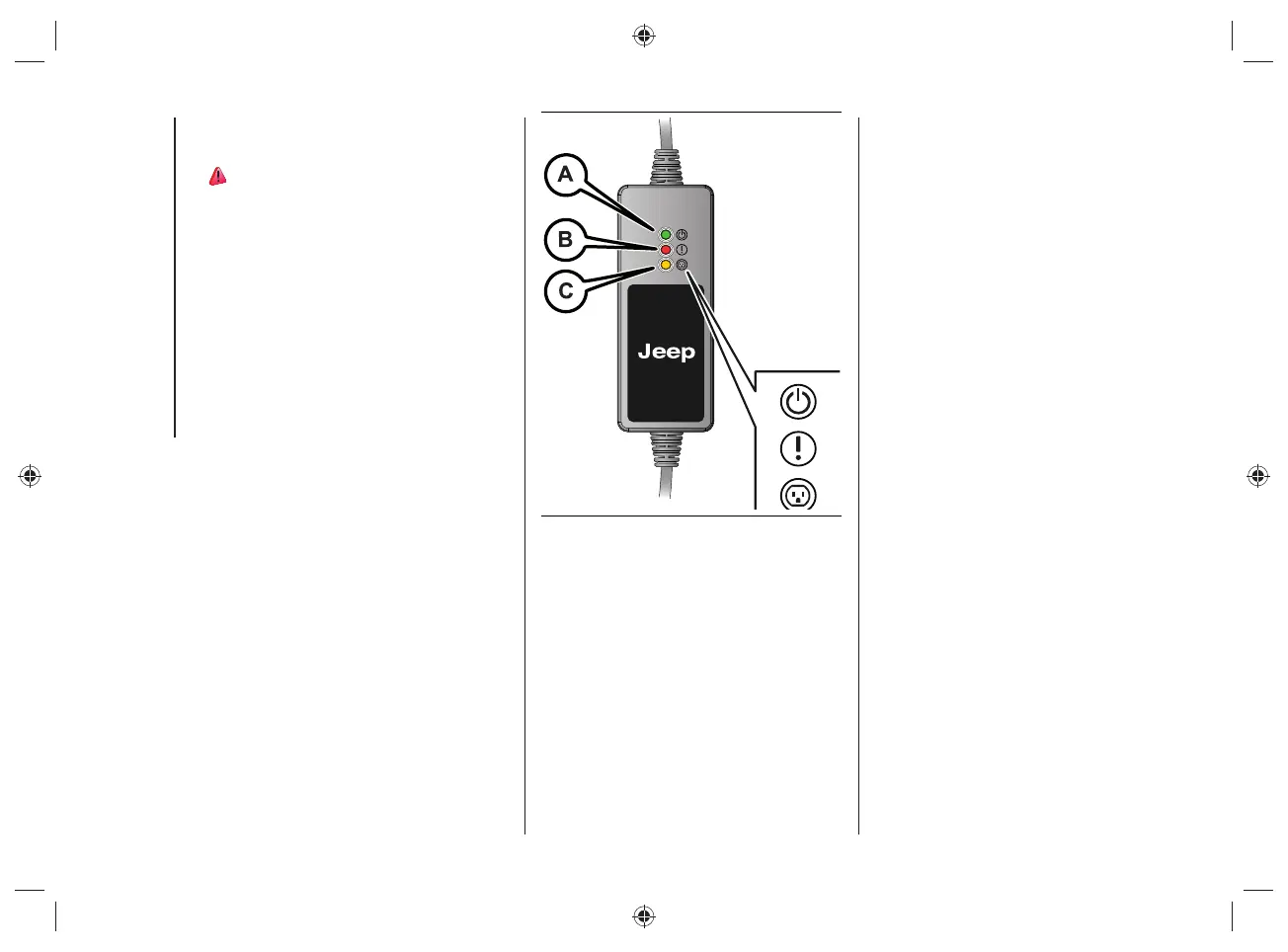

8 J0B6003E
For the type of failure, refer to the
description under "Charging system
failure" on the following pages.
