Charge / Power
The "Charge / Power" function shows
the instantaneously available on the
instrument panel display.
The light blue outer graphic ring
(A)fi g.55 displays the power available at
that moment from the heat engine.
The green inner graphic ring (B)fi g.55,
represents the electric motor power
output available during the acceleration
phase and the input power during the
regeneration phase.

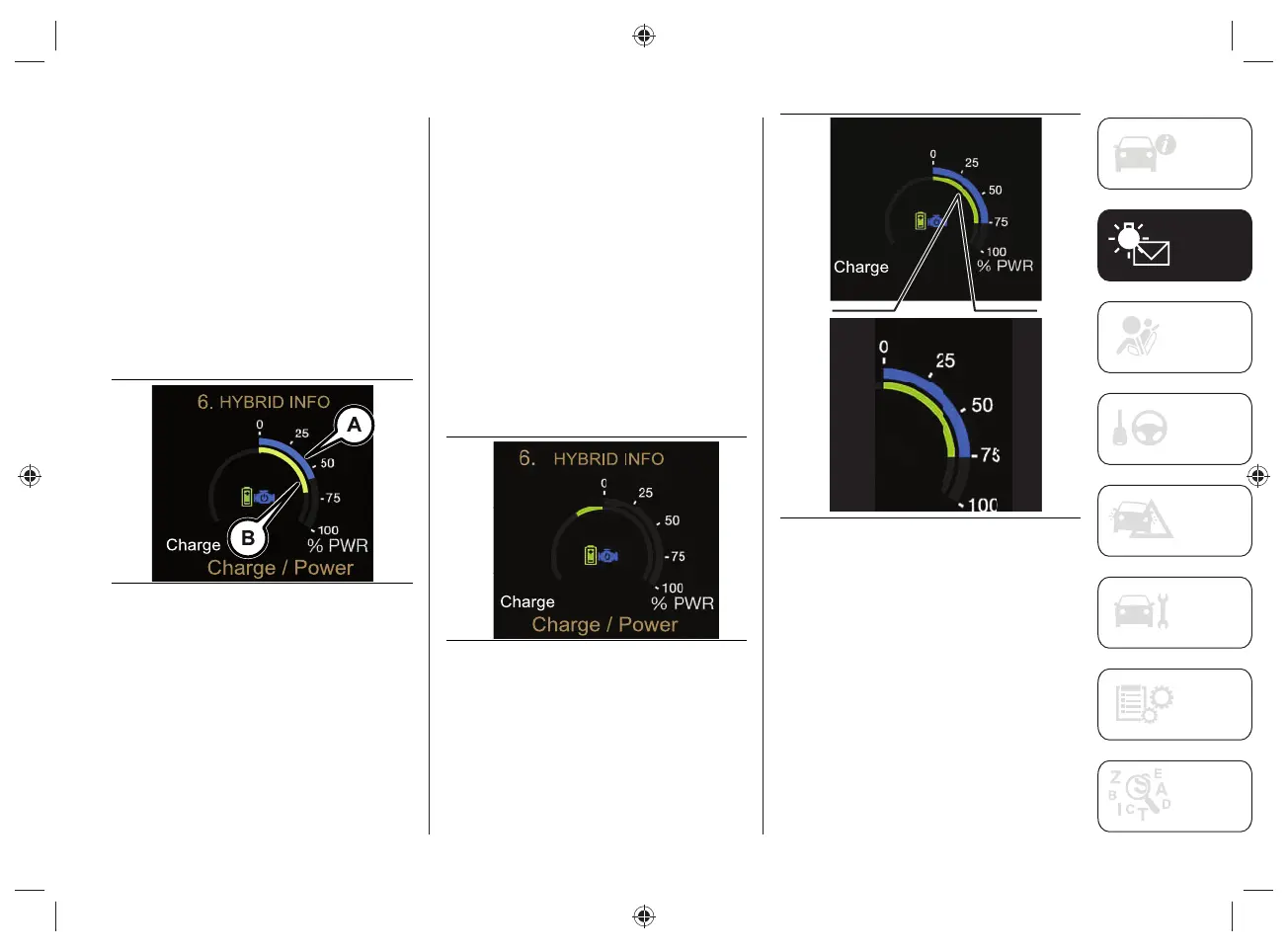

55 J0B6044E
The charge/power indications are only
displayed when the vehicle is ready for
driving.
The display on the instrument panel varies
according to the following conditions:
if the high voltage battery is not
charging, only one graphic notch will
be shown on the display for each
sector ("Charge" and "Power"), fig.55;
if the high voltage battery is charging,
the left side of the screen will be
highlighted on the display, fig.56;
if the high voltage battery is"Power"
the right side of the screen will be
highlighted on the display, fig.57.
56 J0B6045E
HYBRID INFO
Charge / Power
6.
57 J0B6046E
