IN CASE OF EMERGENCY 371
2. Lift the spare tire with one hand to give
clearance to tilt the retainer at the end of
the cable and position it properly across the
wheel opening.

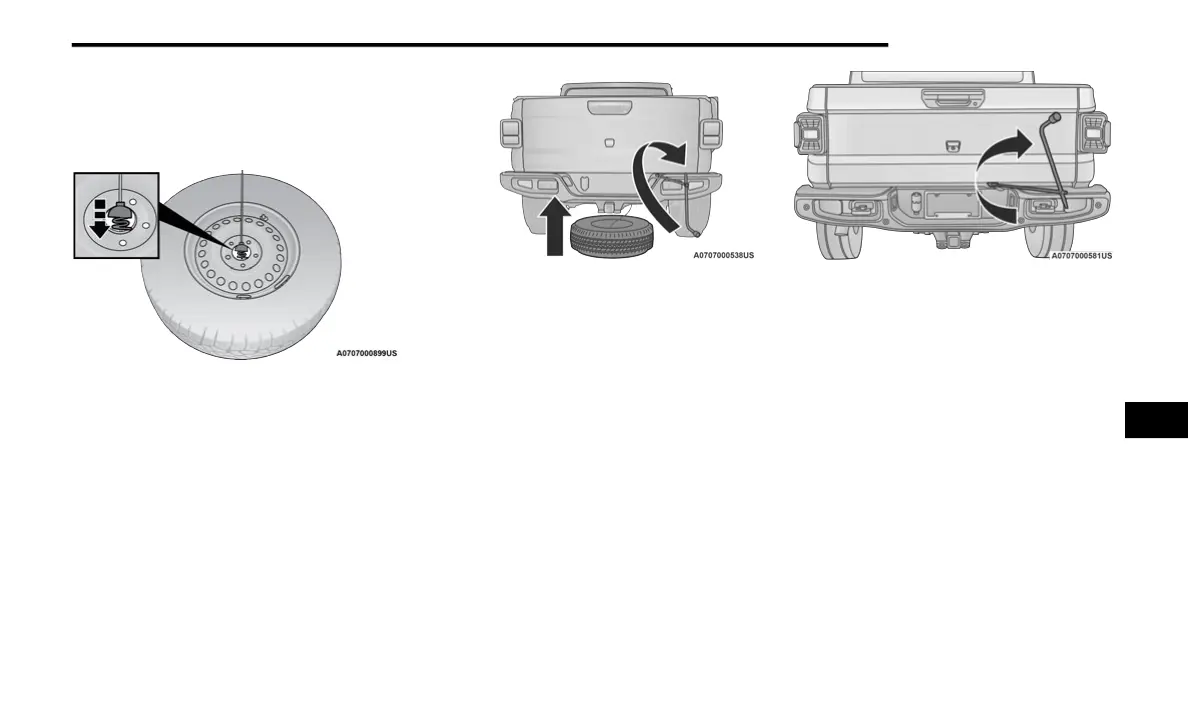

Reinstalling The Retainer
3. Attach the lug wrench to the extension
t
ubes with the curved angle facing away
from the vehicle. Insert the extension tubes
through the access hole between the lower
tailgate and the top of the fascia/bumper
and into the winch mechanism tube.
Reinstalling The Flat Or Spare Tire
4. Rotate the lug wrench handle clockwise
u
ntil the wheel is drawn into place against
the underside of the vehicle. Continue to
rotate until you feel the winch mechanism
slip, or click three or four times. It cannot be
overtightened. Push against the tire several
times to ensure it is firmly in place.
Rotating The Lug Wrench Handle
NOTE:
The winch mechanism is designed for use with
th
e extension tube only. Use of an air wrench or
other power tools is not recommended and can
damage the winch.
7
