2. CONNECTION TO TRACTOR
Connect the 2-pole socket C on the power supply cable to the instrument board in
case such a socket is not already mounted in the cabin. Connect the cable directly to
the tractor battery, connecting the cable with the fuse box to + (plus) on the battery
(remember that the fuse must be placed near the battery).
The 2-pole plug from the control panel can now be connected to the power supply
cable.
CAUTION: It is very important for the functioning of the electric system that there
is a good connection to - (negative/earth) and + (plus) on the battery.
We advise you not to connect to for instance the wiring of the lights
as the wire thickness for these systems is usually not sufficient to
transfer the necessary power.
PR11-0205

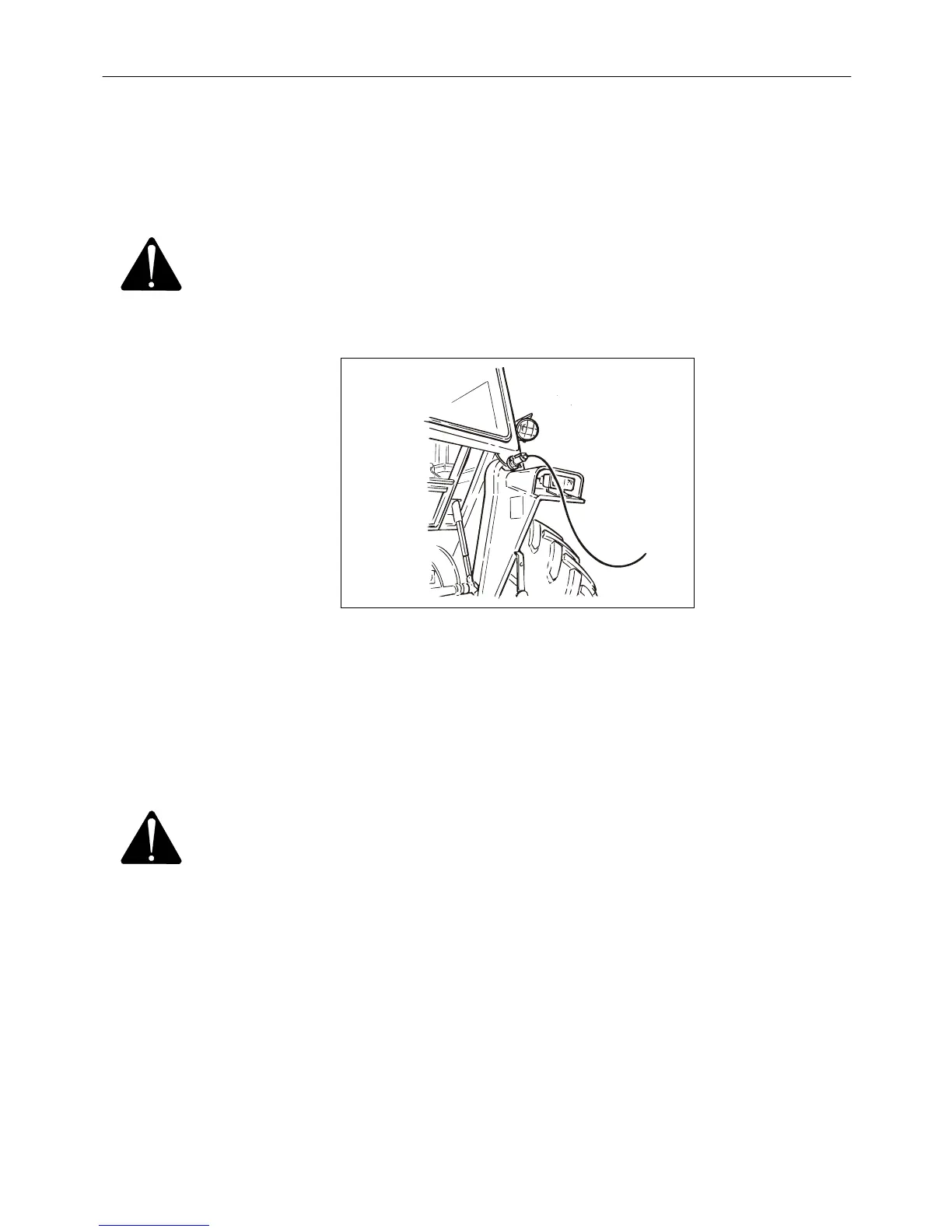

Fig. 2-4
Fig. 2-4 Mount the 7-pole socket (mounted on the cable from the control panel) at the rear of
the tractor just outside the cabin with the supplied wing nuts.
The 7-pole plug from the machine can now be connected to the control panel.
It is now easy to dismount the electric equipment in the cabin if you are not going to
use it for a considerable period of time.
CAUTION: When the electric equipment has been dismounted and is not going
to be used for some time it must be kept in a dry place and the plug
on the machine must be wrapped up or placed under a guard.
PIGB-138X-02 FC 855 0410
- 23 -
