3. MOUNTING OF EQUIPMENT
3. MOUNTING OF EQUIPMENT
Mounting should take place in a workshop on even ground. However, the basic
machine should always be mounted correctly to the tractor according to section 2
"CONNECTION TO TRACTOR" before equipment and accessories are mounted.
HITCH FOR TRAILER

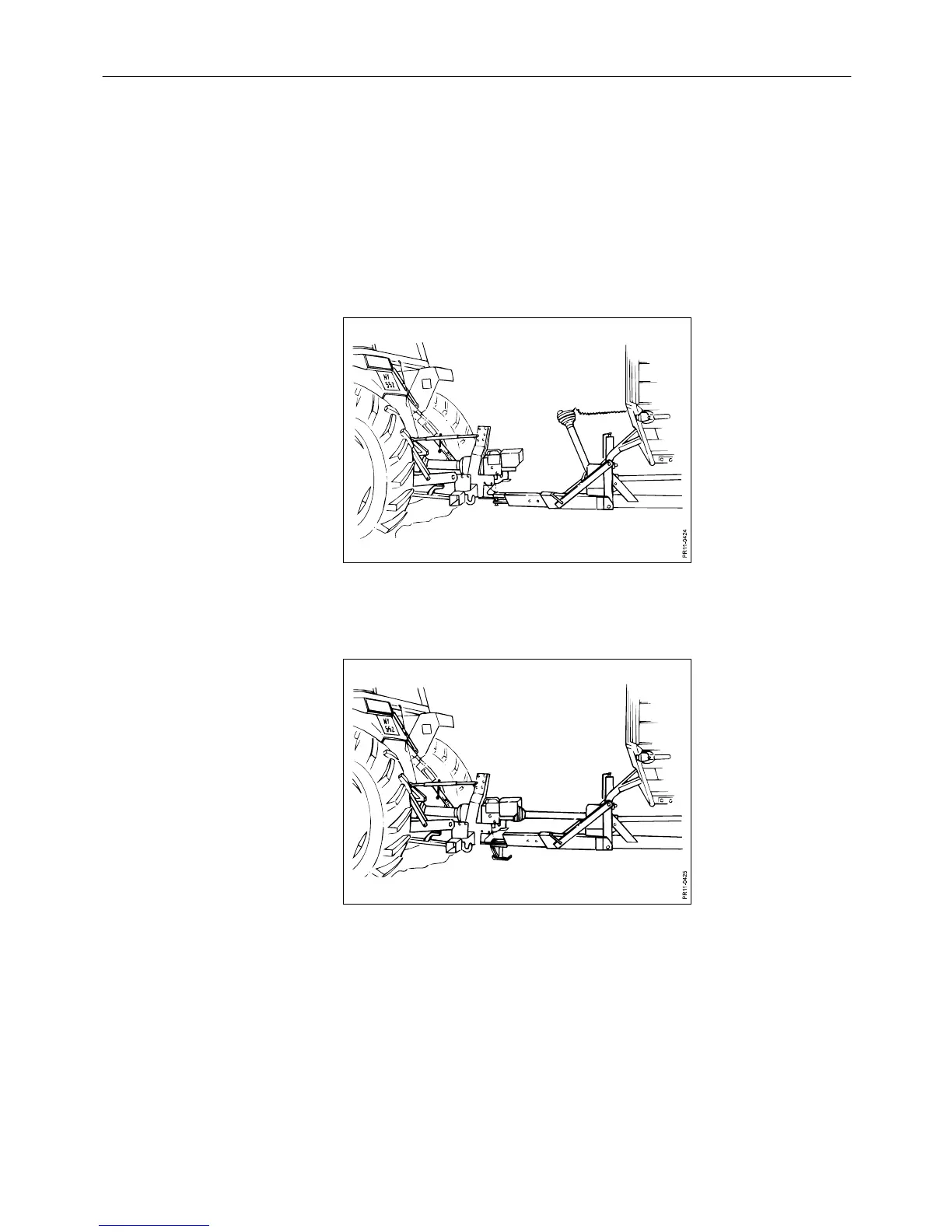

Fig. 3-1
Fig. 3-1 The trailer is connected with hitch or hitch eye.
Fig. 3-2
Fig. 3-2 For connection with hitch the 3-point linkage frame is lowered so that the hitch hook
can get in under the hitch eye of the trailer. The tractor is backed towards the trailer
and the 3-point linkage frame is raised. When the hook is in mesh with the hitch eye,
the trailer is connected.
For disconnection the cord for the hitch lock is pulled and the 3-point linkage frame is
lowered until the support of the hitch is resting on the ground.
Drive forward with the tractor and the precision chopper.
PIGB-138X-02 FC 855 0410
- 29 -
