JF-Stoll FC 855 - CHUTE AND DEFLECTOR

3. MOUNTING OF EQUIPMENT
PR11-0213

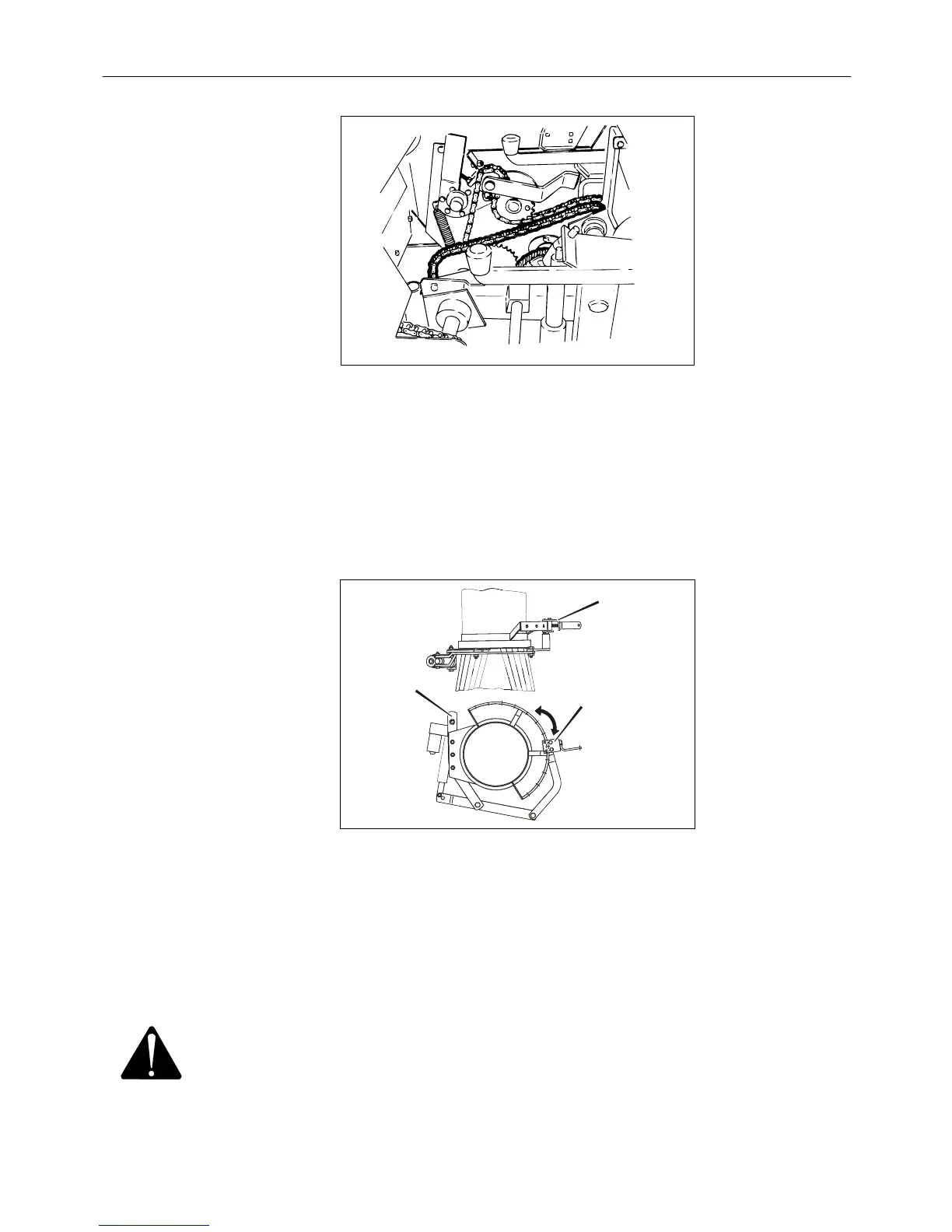

Fig. 3-5
Fig. 3-5 Mount the chain drive for the pick up.
.
CHUTE AND DEFLECTOR
PR12-0682
A
A
B
Fig. 3-6
Fig. 3-6 When the swivel chute has been mounted and adjusted, the assembled fittings are
mounted as shown on the figure.
Place the bracket A above the adjusting bar and assemble it, then mount and fasten
the bracket B. Grease the swivel ring and check that the delivery chute can turn
freely.
IMPORTANT: Grease the swivel ring while turning the delivery chute manually
to distribute the grease.
PIGB-138X-02 FC 855 0410
- 31 -
