3. MOUNTING OF EQUIPMENT
PR12-0700
A
B
Fig. 3-7

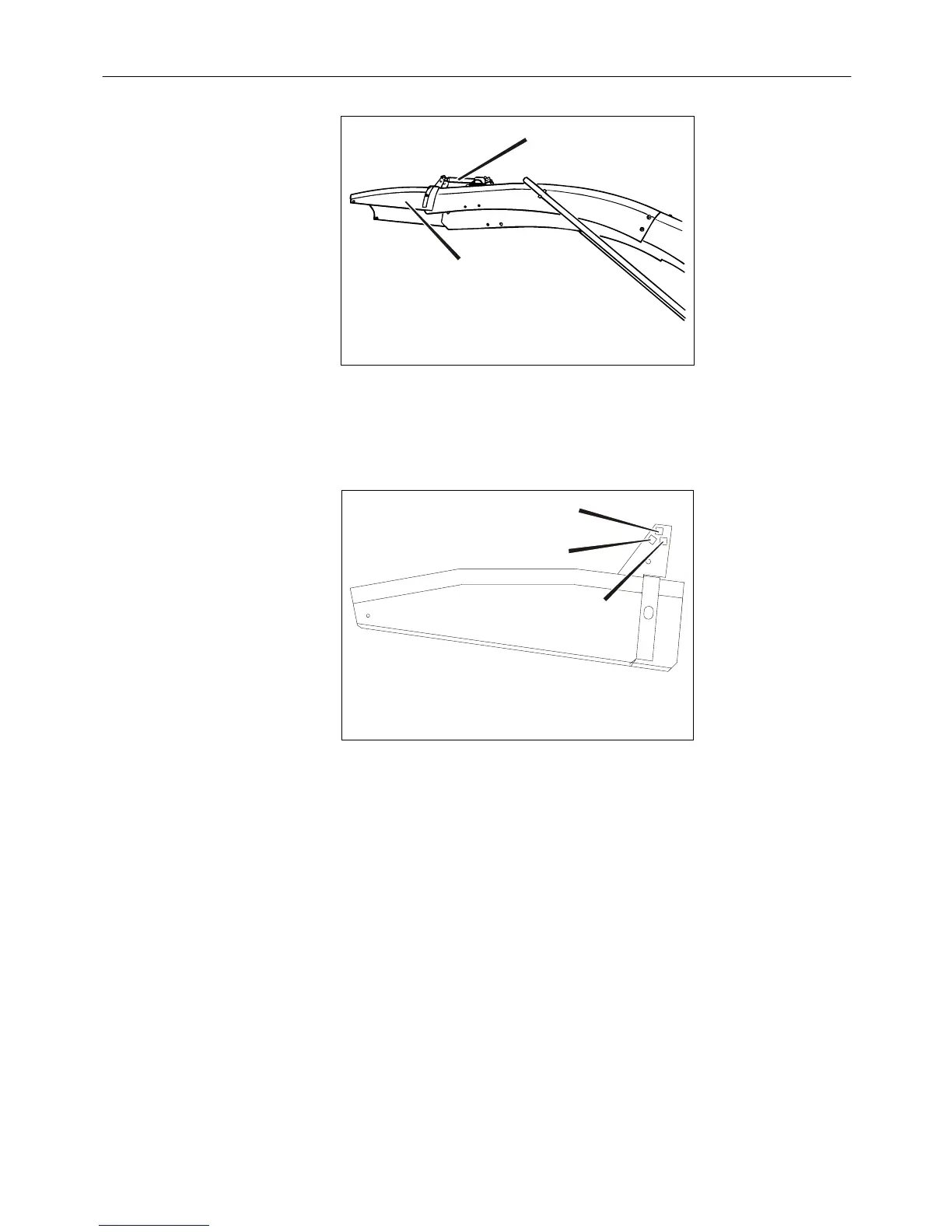

Fig. 3-7 The electric motor A for the deflector B must also be mounted.
PR12-1097
D
E
C
Fig. 3-8
Fig. 3-8 On the deflector there are 3 mounting possibilities: C, D and E.
Connect the 7-pole plug from the machine to the socket at the tractor cabin according
to the section ELECTRONICS in chapter 2 "CONNECTION TO TRACTOR".
Check that right/left turn of the chute and up/down movement of the deflector
correspond with the marking for the joystick on the control panel in the tractor cabin.
If the movements and the marking do not correspond the wires in the assembly box
on the motor(s) in question must be exchanged to obtain opposite movements.
PIGB-138X-02 FC 855 0410
- 32 -
