JF-Stoll FC 855 - MOUNTING OF LIFT SUSPENSION

2. CONNECTION TO TRACTOR
MOUNTING OF LIFT SUSPENSION
PR11-0354

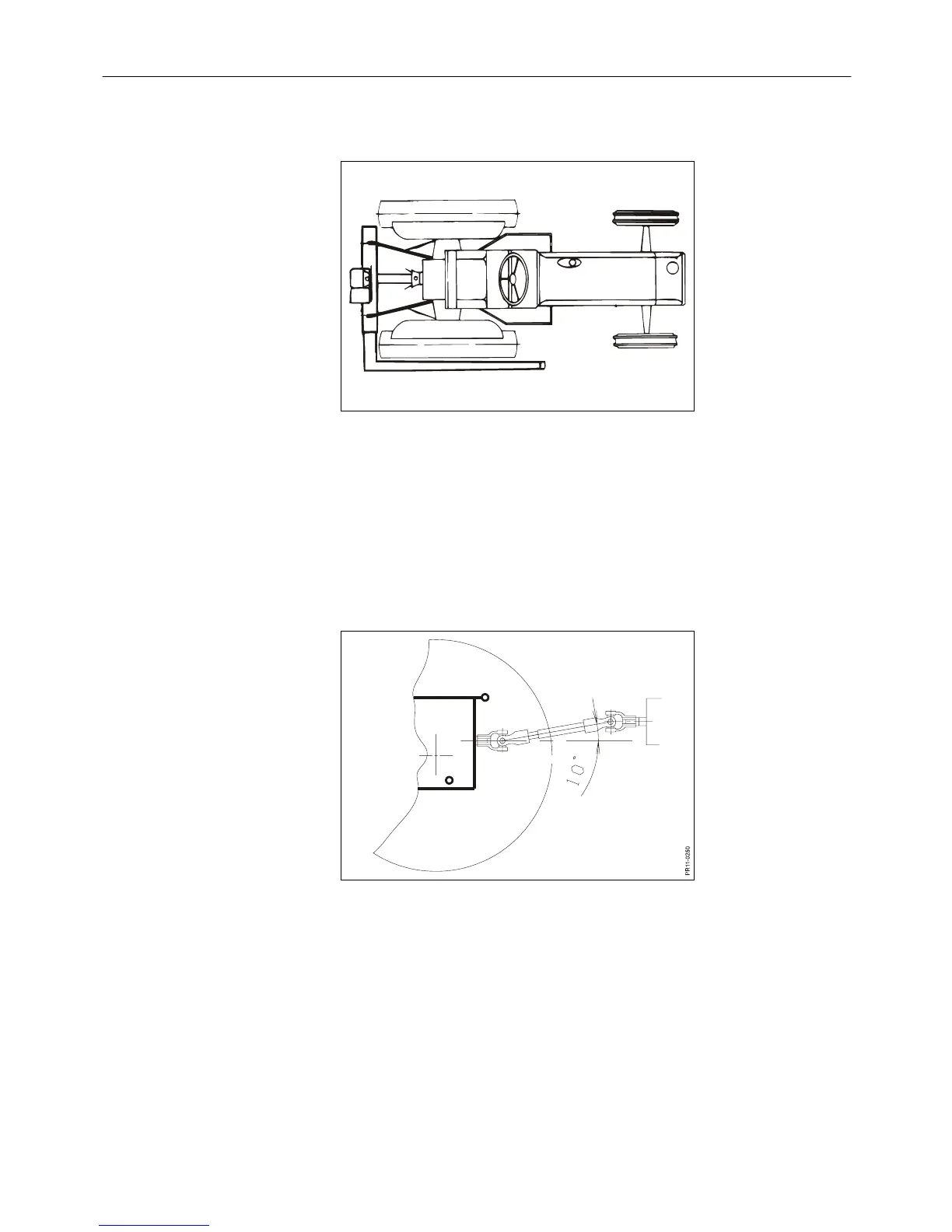

Fig. 2-5
Fig. 2-5 The suspension is mounted in the 3-point suspension of the tractor and is mounted
so that it is as close to the rear wheels of the tractor as possible. This gives the most
stable driving and the load on the link arms is reduced.
Both link arms must have the same oblique position in relation to the middle position
in order to keep the suspension parallel with the tractor. After correct mounting of the
suspension the PTO shaft is mounted.
Fig. 2-6
Fig. 2-6 The PTO of the tractor and the PIC (Power Intake Connection) of the machine must
be parallel, i.e. the angle between them must be as close to 0º as possible. The
suspension is adjusted so that the PTO shaft in working position is maximum 10°
higher or lower than horizontal. This corresponds to the PIC (input shaft of the
gearbox), being maximum 100 mm higher or lower than the tractor’s PTO.
The lift suspension is as standard equipped with hitch hook. For connection of trailers
with clevis drawbar the plate is placed with the hitch hook facing forwards and the
hole on the intermediate plate for clevis drawbar facing backwards.
PIGB-138X-02 FC 855 0410
- 24 -
