JF-Stoll FC 855 - PICK-UP

3. MOUNTING OF EQUIPMENT
PR11-1519
A
B

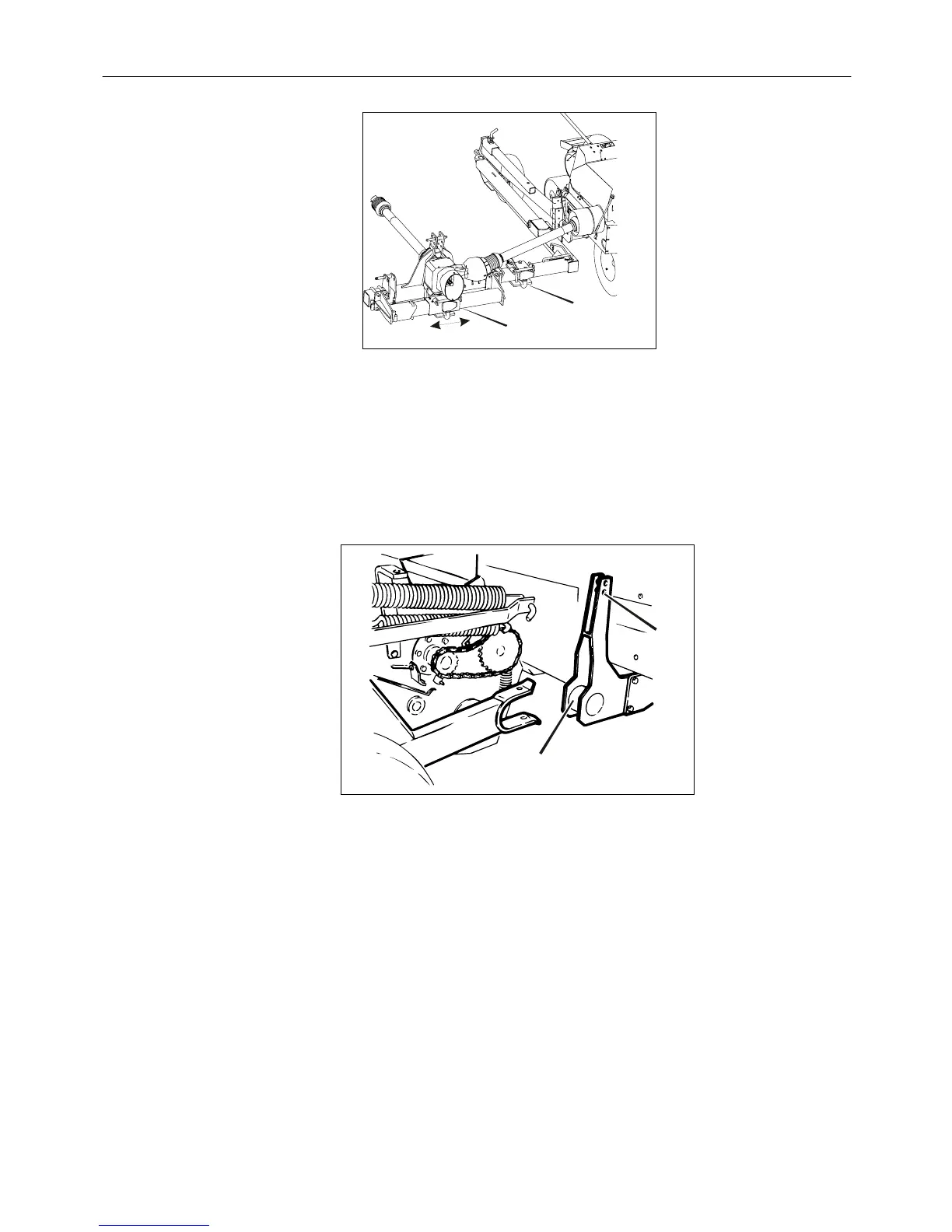

Fig. 3-3
Fig. 3-3 Available as optional equipment is a sideways adjustable hitch which is mounted on
the suspension “A” or a firm hitch which is mounted on the 3-point suspension frame
“B”.
PICK-UP
PR12-0212
A
B
Fig. 3-4
Fig. 3-4 Wheel the pick-up on the rollers to the machine so that the catch A is engaged.
Mount the 2 pins to fix the pick-up to the basic machine.
The relief device is attached to the pick-up at B.
