JF-Stoll FC 855 - GRINDING OPERATION

To Next Page

To Previous Page

4. ADJUSTMENTS

GRINDING OPERATION

1. Lift the guard above the grinding device.

PR11-0218

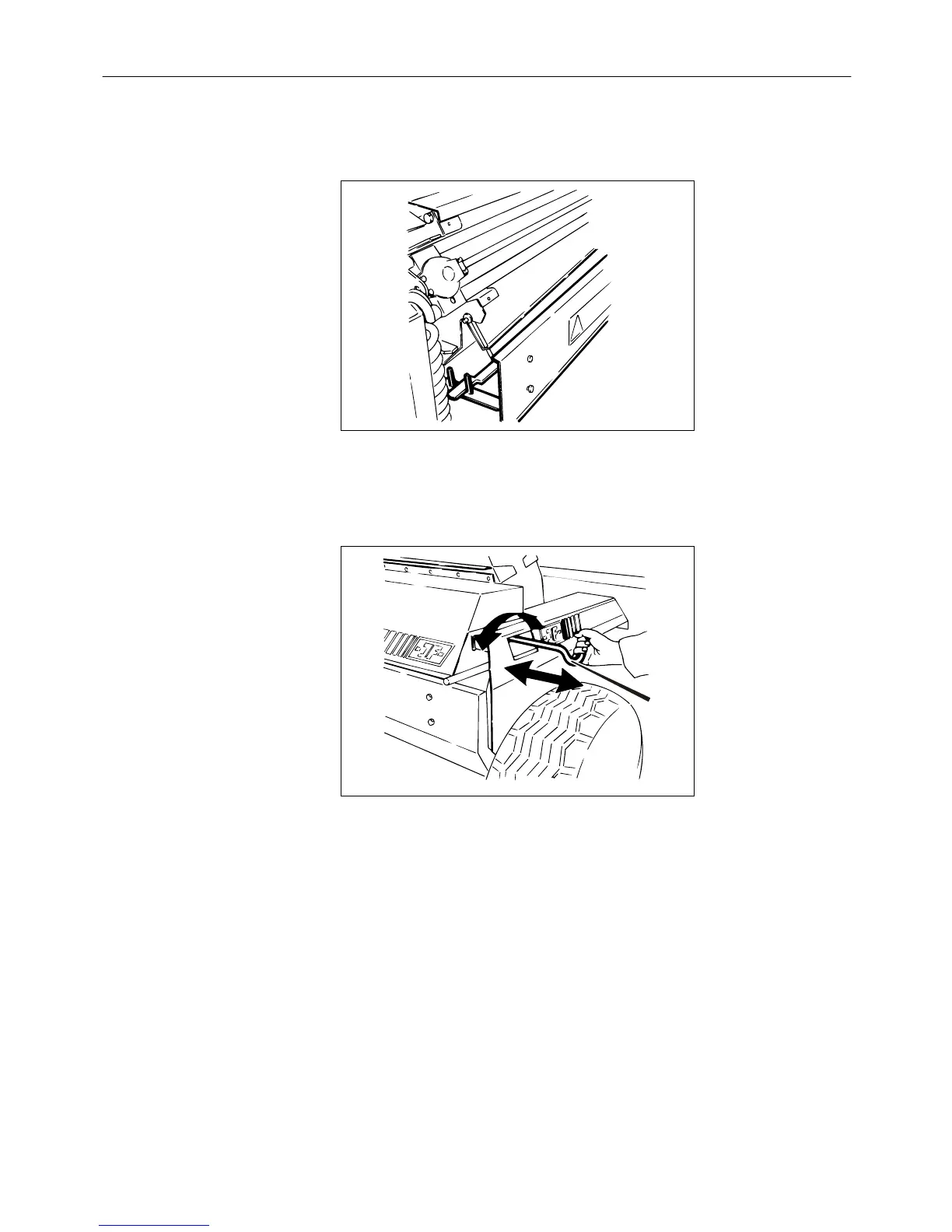

Fig. 4-12

Fig. 4-12 2. Lower the guard between the grinding device and the rotor so that there is free

space between the device and the rotor.

PR12-0220

Fig. 4-13

Fig. 4-13 3. Adjust the grindstone so that there is 2-3 mm clearance between the stone and

the blades by turning the handle A.

PIGB-138X-02 FC 855 0410
