4. ADJUSTMENTS
4. ADJUSTMENTS
PICK-UP
PR12-0471a

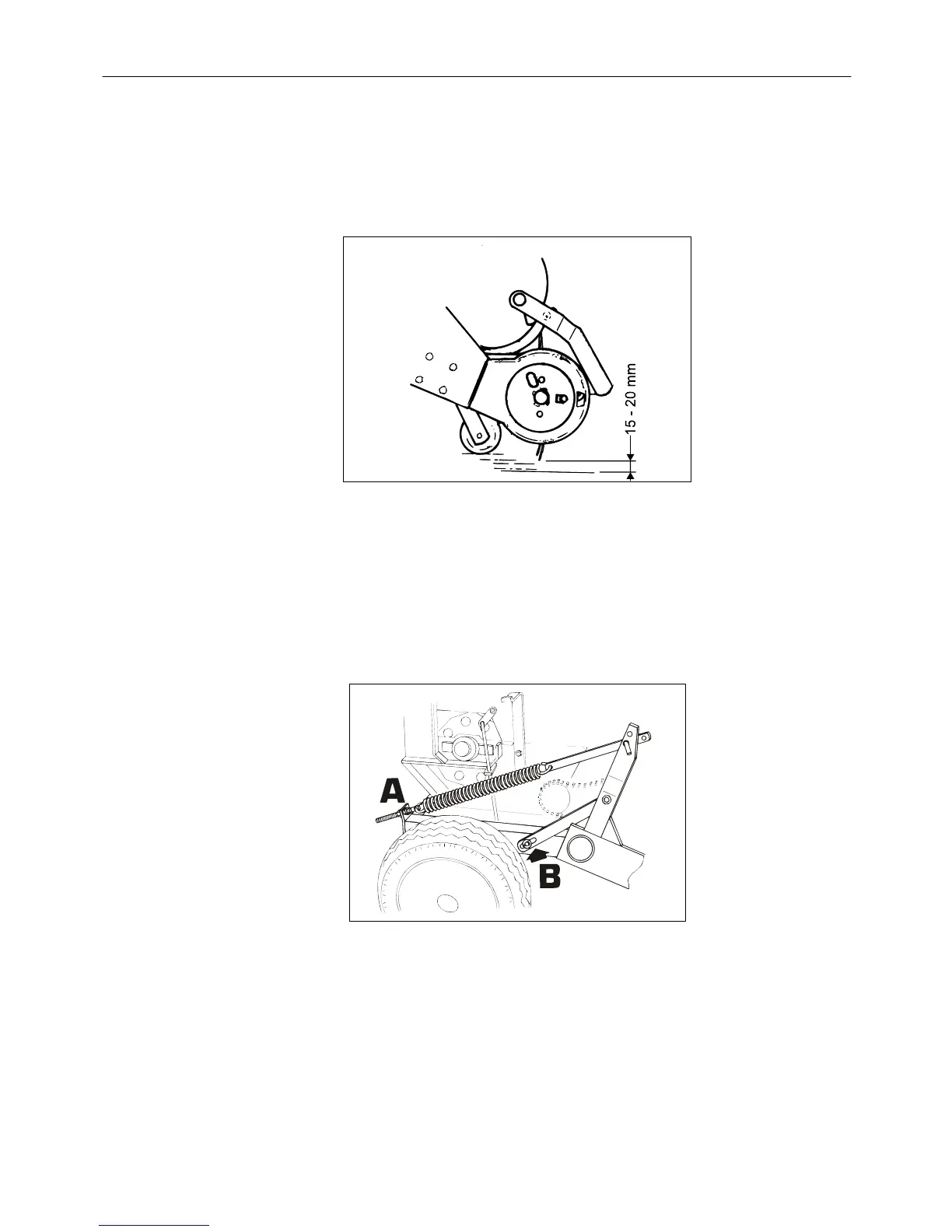

Fig. 4-1
Fig. 4-1 The pick-up is equipped with support rollers made of steel which are adjustable in
height. You should keep the pick-up at such a height that the tines do not hit the
ground and leave earth in the crop and can pick up the grass without waste.
JF-STOLL recommends a distance between the pick-up tines and the ground of 15 to
20 mm.
Fig. 4-2
Fig. 4-2 With the spindle A the relief springs are tightened, so that the pick-up will have a
maximum pressure towards the ground of 30 kg. Check this by standing in front of
the pick-up and pull the hoop upwards and estimate the ground pressure. When the
machine stands on even ground, the limiting rod B must be in the middle position so
that the pick-up can move freely a bit up and down and thereby follow the ground.
PIGB-138X-02 FC 855 0410
