THE HYDRAULIC SYSTEM
The machine requires 1 single-acting hydraulic outlet for the hydraulic cylinder for
additional lift and transport safety device.
Furthermore a double-acting outlet is needed for the adjustable hitch which is
optional equipment.
ELECTRONICS
PR12-0206
A
PR12-0207
B
C
Fig. 2-1 Fig. 2-2

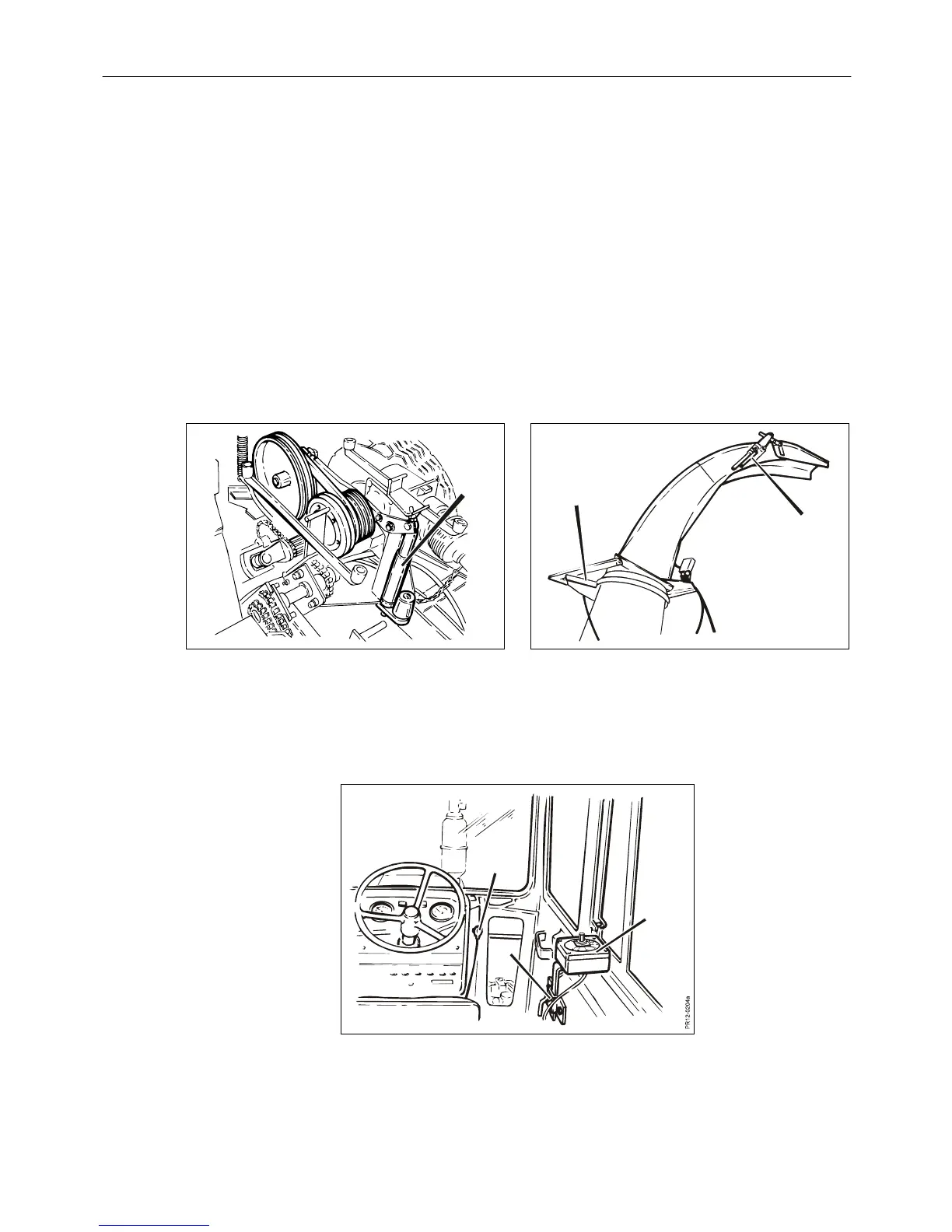

Fig. 2-1 The reverse function, the swivel chute and the deflector on the chute are controlled
Fig. 2-2 by electric motors (A, B and C).
The motors are operated from a control panel in the tractor cabin.
B
C
A
Fig. 2-3
Fig. 2-3 Mount the holder A for the control panel in a suitable place within the reach of the
tractor driver and mount the control panel B.
