2. CONNECTION TO TRACTOR
PR11-0351

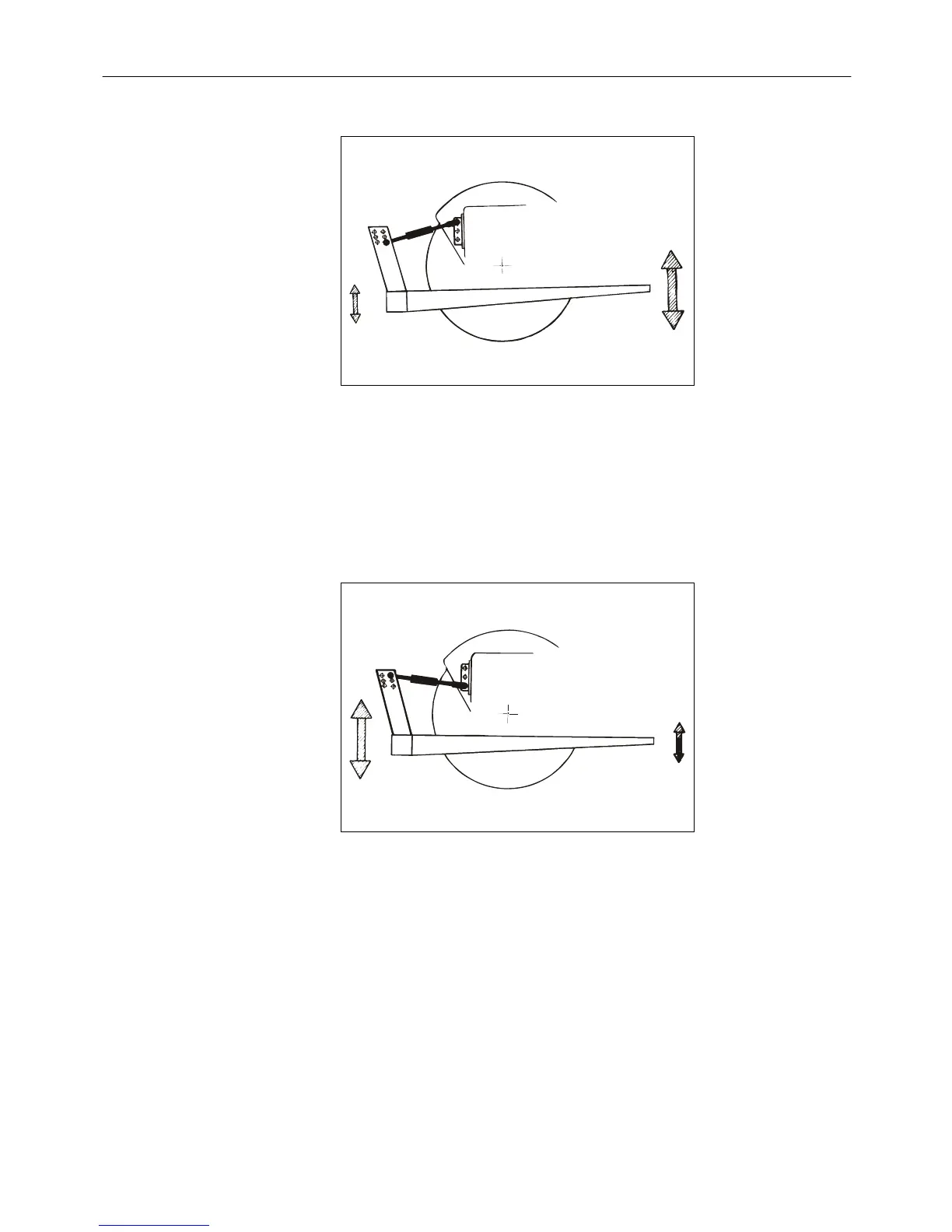

Fig. 2-11
Fig. 2-11 If you are driving with one trailer so that the precision chopper must be connected
and disconnected for every load, it is an advantage if the suspension gives a big
movement up and down at the front and a smaller movement at the rear. Thereby it
becomes easier to “pick up” the precision chopper from the ground without the trailer
touching the ground. The big movement at the front is obtained by mounting the top
link high on the tractor and low on the suspension.
PR11-0352
Fig. 2-12
Fig. 2-12 If you are driving with more trailers that must be connected and disconnected for
every load, it is an advantage if the suspension gives a big movement up and down
at the rear. Thereby it becomes easier to “pick up” the trailer from the ground without
the precision chopper touching the ground. The big movement at the rear is obtained
by mounting the top link low on the tractor and high on the suspension.
PIGB-138X-02 FC 855 0410
- 28 -
