4. ADJUSTMENTS
PR11-0231
M
a
x
.
3
m
m
G
Fig. 4-6

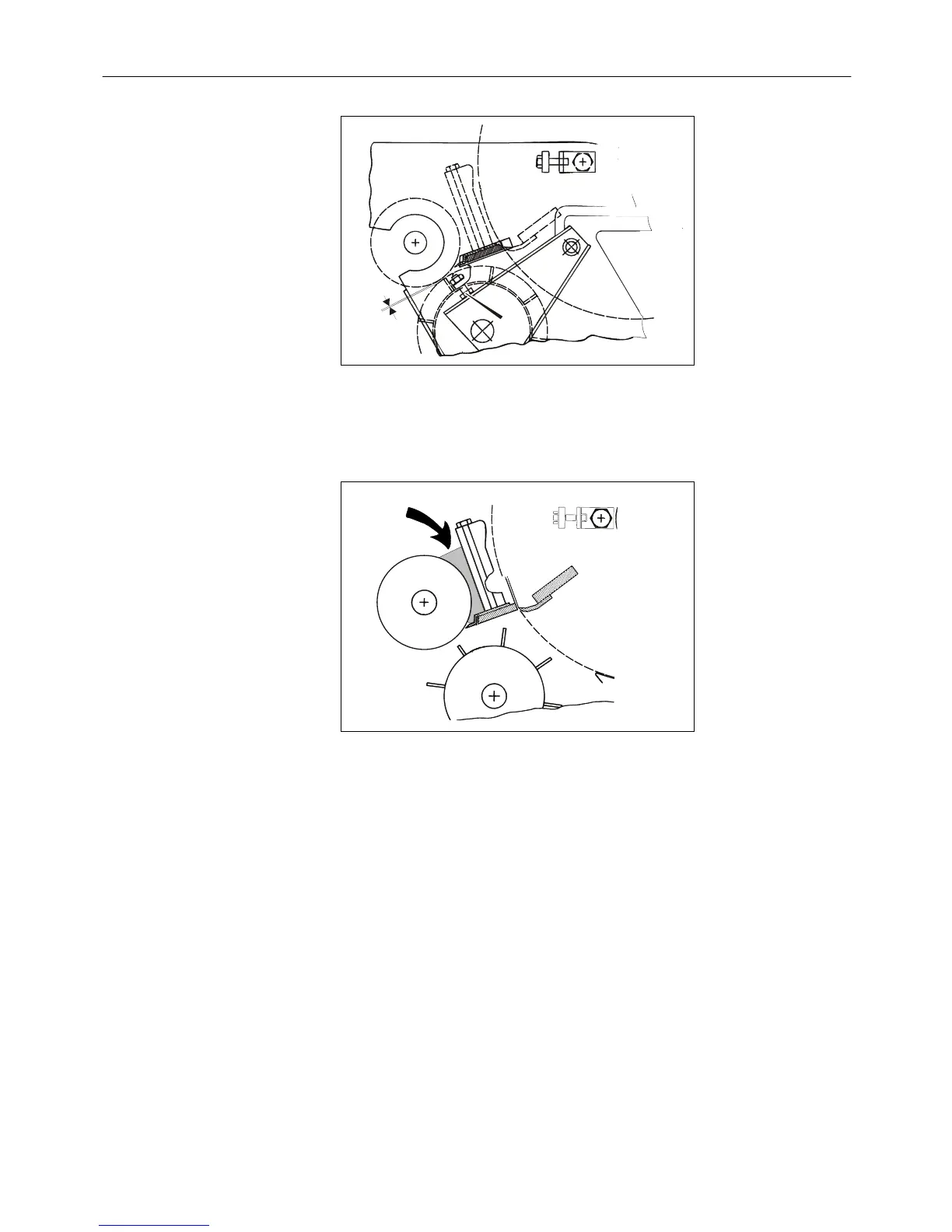

Fig. 4-6 The distance between the smooth roller and the serrated roller should be max. 3 mm.
Adjustment is made with the bolts G at both sides of the rotor housing.
PR11-1520
Fig. 4-7
Fig. 4-7 Under some conditions the crop substance (small particles) can accumulate in the
shaded area, see arrow on fig. 4-7, this may result in an overloading of the
transmission driving the rollers.
Check the area after every 8 hours of operation and remove possible crop remains.
Check, and if necessary adjust, the distance between scraper and smooth roller, see
fig. 4-4. The checking frequency can be reduced when the operator knows the
machine under all conditions.
PIGB-138X-02 FC 855 0410
- 36 -
