2.3.2. How to attach a battery pack
Follow the procedures shown below to attach a battery pack. It is possible to attach and detach the
battery pack while the instrument is wearing the protector.

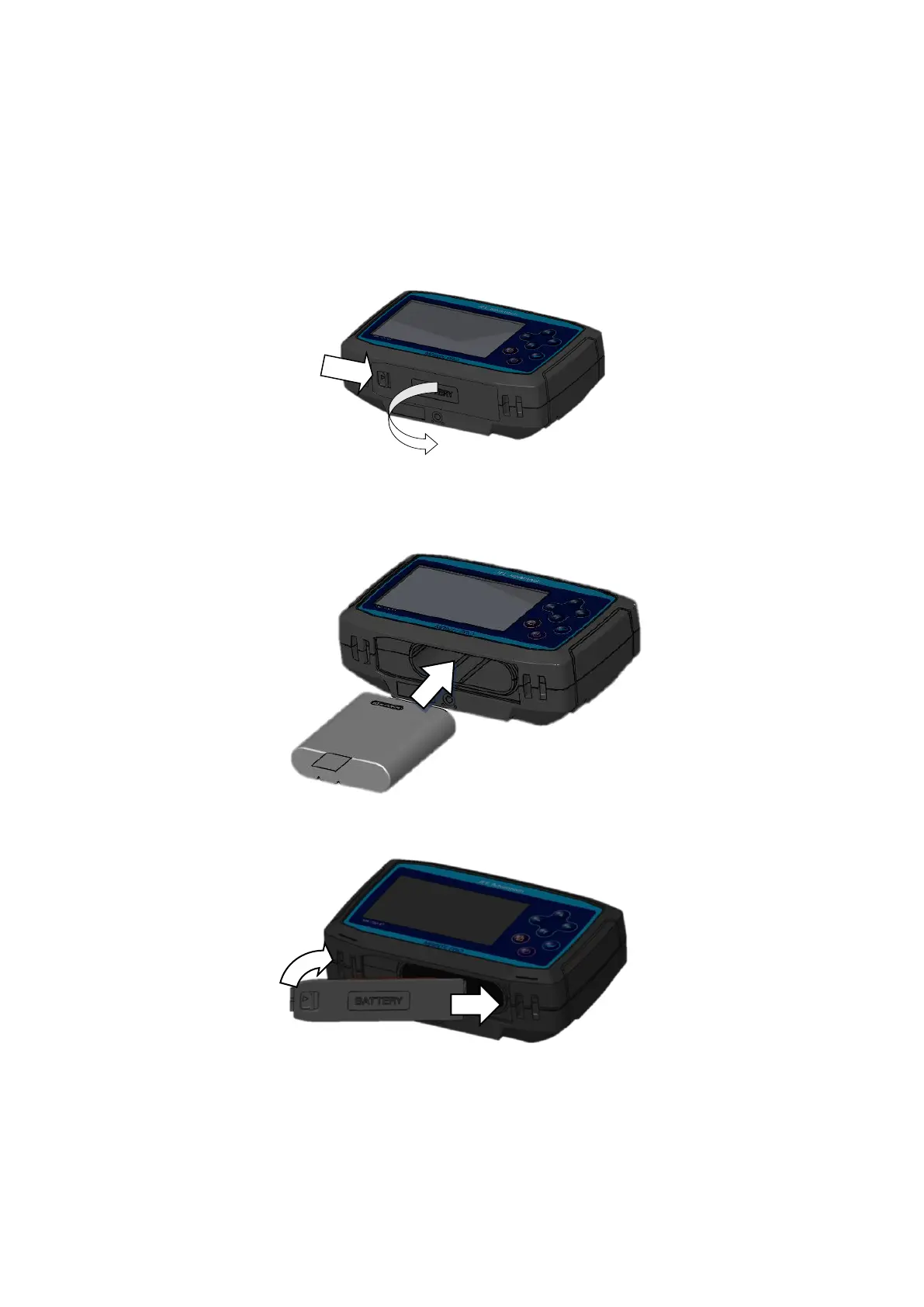

Take off the battery lid while pulling the lock “①” to the direction shown by the arrow.
Pay attention to the battery pack direction and insert the pack all the way inside.
(Be sure to have the slits on the battery pack facing the back side of the instrument)
Close the battery lid firmly until you hear a clicking sound.
