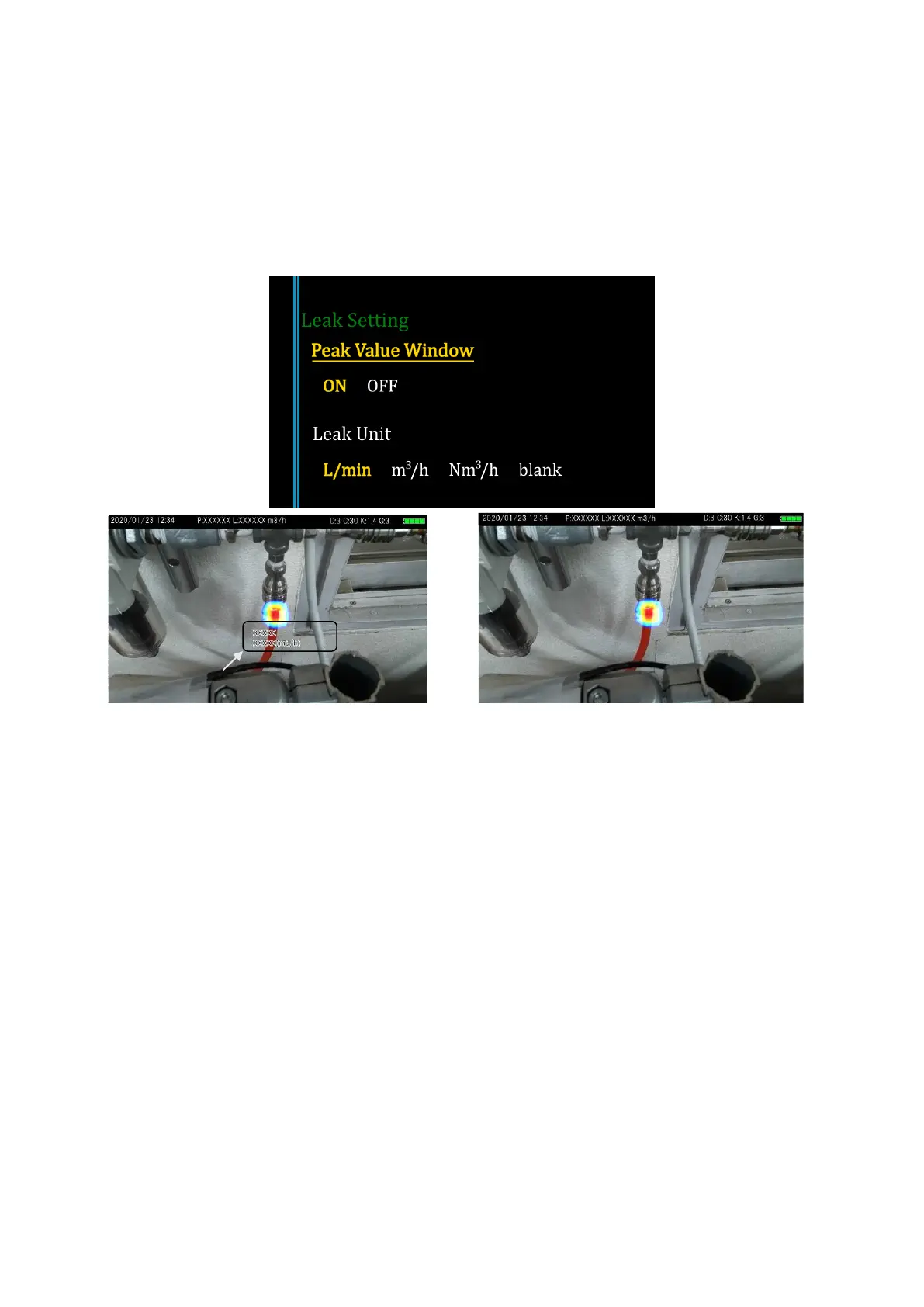

4.3. Leak amount display (Leak Setting)
4.3.1. Sound pressure peak value / Leak amount display setting (Peak Value Window)
The instrument shows you sound pressure peak value and leak amount on measurement screen if
you turn “Peak Value Window” “ON". Default setting is “OFF”.
4.3.2. Leak amount display unit setting (Leak Unit)
The unit used for displaying leak amount can be configured. Default is “L/min”.
Selectable units: “L/min”, “m
3
/h”, “Nm
3
/h”, and “Blank
※
”
If you select “Blank”, then the instrument shows only sound pressure peak but not leak amount.
Sound pressure and Leak amount
・Peak Value Window ON
・Peak Value Window OFF
